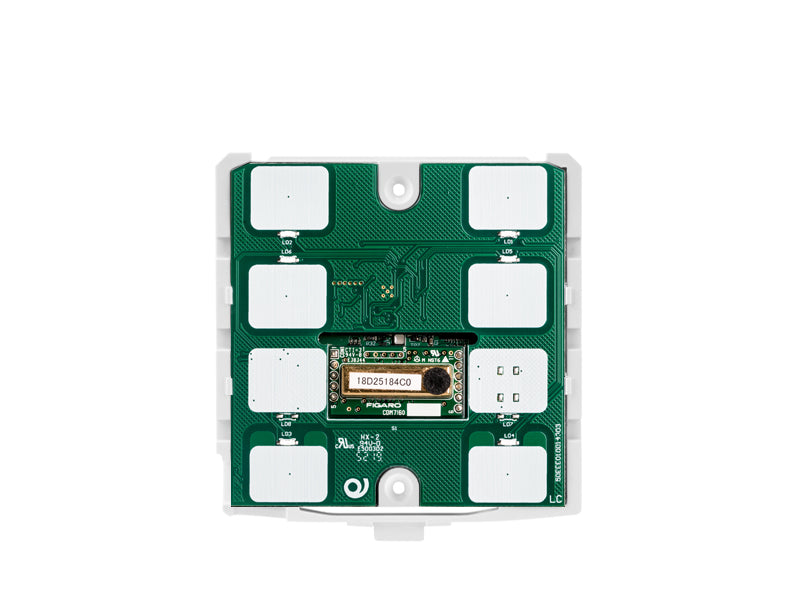

Eelectron MC06A01KNX-1 KNX flush-mounted multisensor controller CO2, humidity, temperature – white
Eelectron MC06A01KNX-1 KNX flush-mounted multisensor controller CO2, humidity, temperature – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron MC06A01KNX-1 KNX flush-mounted multisensor controller CO2, humidity, temperature – white

SKU: MC06A01KNX-1
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$320.90 USD
-8% $350.56 USD $320.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron MC06A01KNX-1 is the flush-mounted 9025 multisensor controller MC06A01KNX in white: temperature, humidity and CO2 sensing, six capacitive keys and two independent two-stage thermostats in a 2-module wall device with no display. It is finished with the matching 9025GM06L01 glass (ordered separately) and is the room controller for spaces where air quality and climate are managed from one point — hotel rooms, classrooms, meeting rooms, offices and apartments.

CO2 is measured directly by an integrated probe (360–5000 ppm) rather than estimated from other readings, which makes it usable for demand-controlled ventilation. The two thermostats each have an integrated PI controller for heating and cooling with valves, 6-way valves and 2- or 4-pipe fan coils, and can serve two zones. The humidity sensor drives threshold-with-hysteresis control of humidifiers and dehumidifiers. A rear 2-pole input takes a dry contact or an external NTC probe for a second temperature point.

The six capacitive keys are configured in ETS for on/off, dimming, shutters and blinds, scenes, sequences and local thermostat commands; the front RGB LED shows temperature, humidity, CO2 or any other bus value. It mounts on an Italian 2-module, German or British box and includes the KNX bus coupler.

Key Features

  • Three sensors on board: temperature, relative humidity and CO2 (direct NDIR-type measurement, 360–5000 ppm)
  • Two independent two-stage thermostats with PI controllers — heating, cooling, valves, 6-way valves, 2- and 4-pipe fan coils
  • Humidity control: humidification / dehumidification by thresholds with hysteresis
  • 6 capacitive keys for lighting, shading, scenes, sequences and local climate control
  • Front RGB LED for status (temperature, humidity, CO2) or any KNX value
  • Rear 2-pole input: dry contact (≤10 m) or NTC probe TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC (≤30 m)
  • Temperature -5 to +55 °C, 0.01 °C resolution, ±0.5 °C typ.; humidity 0–100 %RH, 0.1 %RH resolution, ±2 %RH typ.
  • Bus powered: 15 mA @ 24 V (30 mA peak during CO2 measurement)
  • 2-module format 96 x 96 x 36 mm; Italian, German and British boxes; bus coupler included
  • 250 group addresses / 250 associations; KNX certified

Technical Specifications

Power supply Via KNX bus, 23–32 V DC (SELV)
Current consumption 15 mA @ 24 V, 30 mA peak during CO2 measurement
Sensors temperature, humidity, CO2
Temperature sensor -5 to +55 °C (23 to 131 °F), resolution 0.01 °C, tolerance ±0.5 °C typ.
Humidity sensor 0–100 %RH, resolution 0.1 %RH, tolerance ±2 %RH typ. (±3 %RH max)
CO2 sensor 360–5000 ppm, accuracy ±(50 ppm + 3%)
Keys 6 capacitive keys + front RGB LED
Thermostats 2 x two-stage with PI controller
Rear input – digital dry contact, scanning 3.3 V DC, cable ≤10 m (33 ft)
Rear input – analog NTC probe TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC, cable ≤30 m (98 ft)
Group addresses / associations 250 / 250
Mounting 2-module flush box: Italian 502, German, British
Enclosure PC-ABS, IP20 (EN 60529), pollution degree 2, safety class III
Dimensions (W x H x D) 96 x 96 x 36 mm (3.78 x 3.78 x 1.42 in)
Operating temperature -5 to +45 °C (23 to 113 °F); storage -20 to +55 °C; RH max 85% non-condensing
Weight approx. 130 g without glass, 240 g with glass; packed 0.13 kg (0.29 lb)
Standards EN 63044-3, EN 63044-5-1, EN 63044-5-2, EN 50491-2; LVD 2014/35/EU, EMC 2014/30/EU
Certification KNX certified
ETS application Eelectron ETS application (download from eelectron.com)
Manufacturer part no. / GTIN MC06A01KNX-1 / 8054144521442

Related Products

Required glass: 9025GM06L01 (white). Other colour: MC06A01KNX-3. Humidity-temperature version without CO2: HC06A01KNX-1 / -3. NTC probes: TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC; TS01D01ACC glass 9025GS00A01 / 9025GS00A03. 9025 push buttons for the same wall: CS10A01KNX-1 with 9025GL glass covers.
