Eelectron MB80D01KNX-SWH-S KNX Mini Pad 8-fold – Helvetia knows

SKU: MB80D01KNX-SWH-S
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$202.90 USD
-9% $221.76 USD $202.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

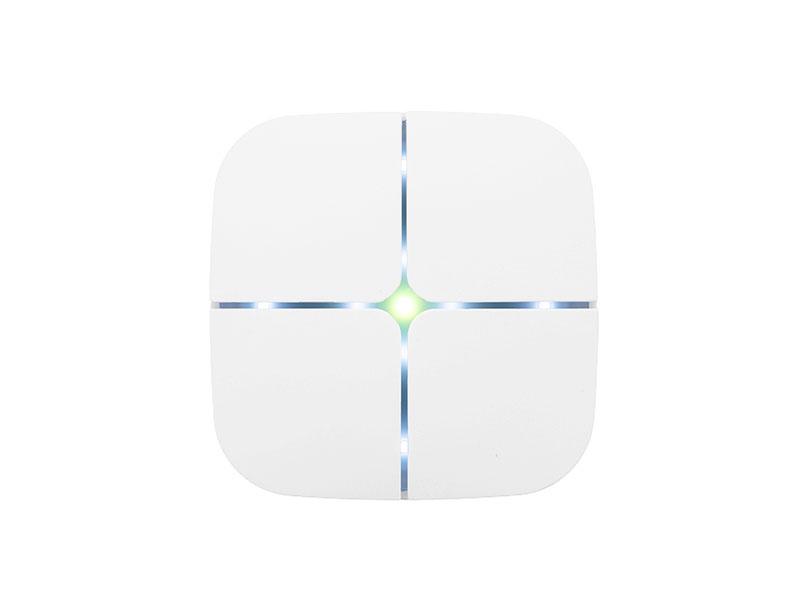

The Eelectron MB80D01KNX-SWH-S is the eelecta® MINIPAD: an 8-button KNX push-button panel with KNX Data Secure, in Helvetia white. It is a compact, complete keypad — buttons, LEDs, three rear inputs and a temperature sensor with two thermostats in one sealed unit — intended for bedside, desk-side and door-side positions in hotel rooms, apartments and offices where a full 71 mm keypad is more than the wall needs.

The eight buttons are configured in ETS for lights, dimming, shutters and blinds, scenes or any other command; eight white LEDs and one RGB LED are freely assignable for feedback. On the back, two inputs take dry contacts (door contact, conventional pushbutton, window sensor) and a third is configurable as a dry contact or an analog input. The on-board temperature sensor can run two two-stage thermostats with PI controllers for heating, cooling, valves, 6-way valves and 2- or 4-pipe fan coils.

Sixteen logic blocks cover expressions with logical, threshold, algebraic and conditional operators plus proportional temperature/humidity control and dew-point calculation, and the Virtual Holder logic infers room occupancy from the door contact and other sensors for hospitality energy management. The device mounts on round or square boxes with 60 mm fixing centres via the supplied metal support and is delivered with its button set.

Key Features

  • 8 push buttons, freely configurable in ETS: lights, dimming, shutters/blinds, scenes, sequences
  • 8 white LEDs + 1 RGB LED, each freely assignable
  • 3 rear inputs: 2 dry-contact + 1 dry-contact/analog, cable ≤10 m, scanning 3.3 V DC
  • Temperature sensor with 2 two-stage thermostats (PI): heating, cooling, valves, 6-way valves, 2- and 4-pipe fan coils
  • 16 logic blocks; Virtual Holder logic for hotel-room presence
  • KNX Data Secure; bus coupler included; 300 group addresses / 350 associations
  • Finish: Helvetia white
  • Mounts on round or square boxes with 60 mm fixing centres via supplied metal support
  • Delivered complete: bus terminal, metal support, screws and button set

Technical Specifications

Power supply Via KNX bus, 21–30 V DC
Current consumption max 20 mA
Buttons 8
Inputs 2 digital (dry contact) + 1 digital/analog; cable ≤10 m (33 ft); scanning 3.3 V DC, ≤1 mA
Outputs / indicators 8 white LEDs + 1 RGB LED
Thermostats 2 x two-stage with PI controller, from on-board temperature sensor
Logic 16 logic blocks; Virtual Holder logic
Group addresses / associations 300 / 350
Connections KNX bus terminal for 0.8 mm Ø conductors; 4-wire input connector, 24 AWG
Mounting Round or square flush box, 60 mm fixing centres, via metal support (included)
Enclosure Polycarbonate and ABS; IP20 (EN 60529); pollution degree 2; protection class III (IEC 1140)
Finish / colour Helvetia white
Operating temperature 0 to +45 °C (32 to 113 °F); storage -20 to +70 °C; RH max 90% non-condensing
Weight approx. 130 g (0.29 lb); packed 0.24 kg (0.53 lb)
Standards EN 63044-3, EN 63044-5-1, EN 63044-5-2, EN 50491-2; LVD 2014/35/EU, EMC 2014/30/EU
Certification KNX certified; KNX Data Secure
ETS application Eelectron ETS application (download from eelectron.com)
Manufacturer part no. / GTIN MB80D01KNX-SWH-S / 8054144525556

Related Products

Other finishes: MB80D01KNX-BL-S, MB80D01KNX-WH-S. Larger keypads: OL-U SO08A01KNX (16 channels, swipe bar) and 9025 CS10A01KNX-x with glass covers; 4-channel 55 mm alternative SB40AxxKNX. Room controllers: TO04A01KNX, HO04A01KNX, MO04A01KNX-x.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
