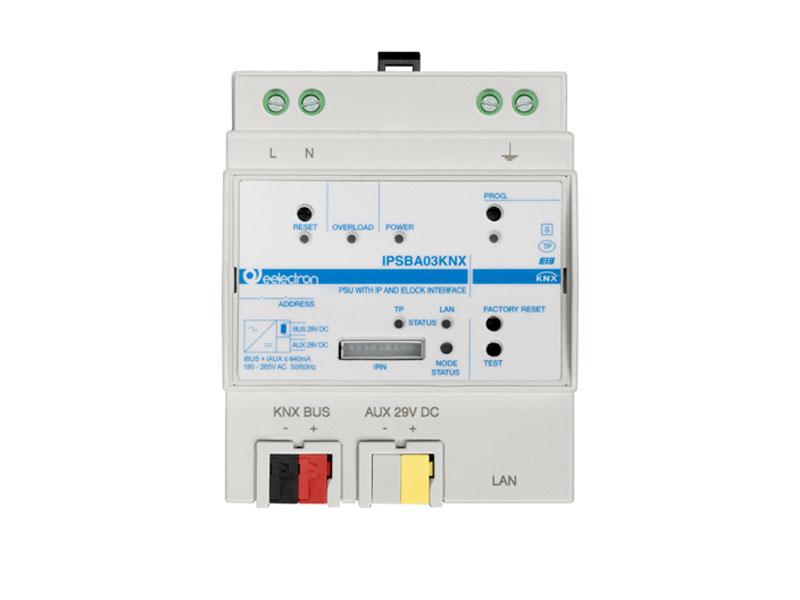

Eelectron IPSBA03KNX KNX Power Supply Secure 640 mA, with IP interface, MQTT, Salto
Eelectron IPSBA03KNX KNX Power Supply Secure 640 mA, with IP interface, MQTT, Salto

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron IPSBA03KNX KNX Power Supply Secure 640 mA, with IP interface, MQTT, Salto

SKU: IPSBA03KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$426.90 USD
-27% $582.40 USD $426.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IPSBA03KNX combines a 640 mA KNX power supply, a KNX IP interface with KNX Data Secure and a line-diagnostics engine in one 4-module device, with MQTT client with TLS and SALTO inRoomNode interface. It powers the line (KNX + AUX outputs at 29 V DC), gives ETS and visualization up to 5 tunneling connections over 10/100 Ethernet, and monitors up to 128 devices with OnLine-OffLine detection, so the panel reports failures without extra modules.

Forty-eight logic blocks and the Virtual Holder occupancy logic run locally, the MQTT client exposes KNX objects to a broker, and a dedicated input connects a SALTO inRoomNode (IRN) electronic door lock so guest-room access events drive the room logic; a test button and the Surveillance function support commissioning. Two units may share one line if installed at least 200 m apart. Typical use is as the single infrastructure device per hotel floor or office area.

Key Features

  • KNX power supply 640 mA, 29 V DC, KNX and AUX outputs; integrated choke
  • KNX IP interface: 5 tunneling connections, APDU 55, 10/100 Ethernet; KNX Data Secure
  • OnLine-OffLine monitoring of up to 128 KNX devices with alarm objects
  • 48 logic blocks; Virtual Holder presence logic
  • MQTT client over TLS, up to 160 KNX objects published/subscribed
  • Input for SALTO inRoomNode (IRN) electronic lock; test button; Surveillance function
  • Two supplies per line, minimum 200 m (656 ft) apart
  • Mains 180–265 V AC, approx. 45 W; LAN interface < 50 mA
  • Terminals up to 4 mm² (23–10 AWG), M3 screws 0.5 Nm
  • 4-module PC-ABS DIN housing; 760 / 800 group addresses / associations

Technical Specifications

Power supply 180–265 V AC, 50/60 Hz, approx. 45 W
Output KNX bus + AUX, 29 V DC, 640 mA total; integrated choke
Ethernet RJ45 10/100; KNXnet/IP tunneling, 5 connections; APDU 55; < 50 mA
Security KNX Data Secure ; MQTT over TLS
Monitoring OnLine-OffLine detection, up to 128 devices
Logic blocks 48
MQTT Client, TLS, up to 160 objects
Lock interface SALTO inRoomNode (IRN) input
Parallel operation 2 units per line, min. 200 m (656 ft) apart
Terminals Max 4 mm²; 23–10 AWG; M3 screw, 0.5 Nm
Group addresses / associations 760 / 800
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure PC-ABS, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IPSBA03KNX power supply / IP interface application with Data Secure
Weight (net) 0.2 kg (0.44 lb)
Manufacturer part no. / GTIN IPSBA03KNX / 8054144525495

Related Products

Other versions: IPSBA01KNX, IPSBA02KNX, IPSBA04KNX (01 MQTT; 02 without MQTT; 03 SALTO lock interface; 04 Modbus + MQTT). Plain supplies: PS00D03KNX / PS00D04KNX; IP router: IN00S01RIP; stand-alone Modbus gateway: IC00M01KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
