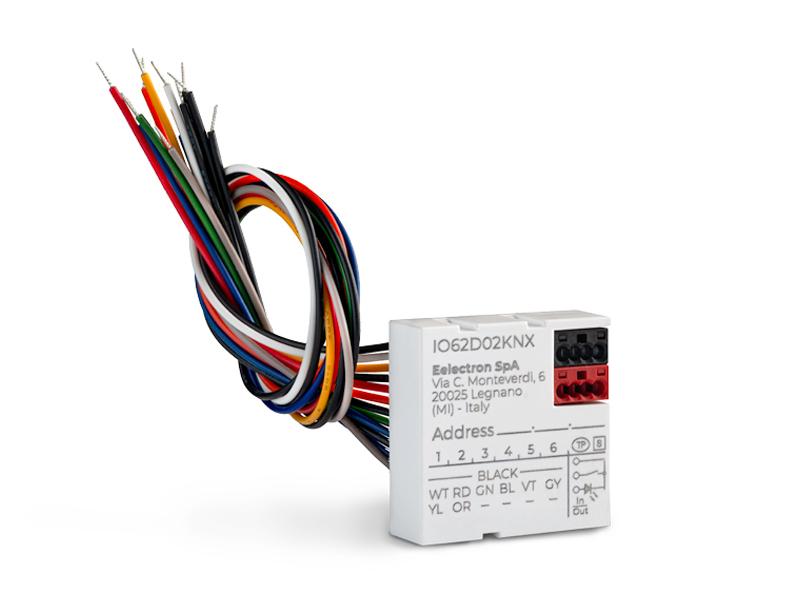

The Eelectron IO62D02KNX is a flush-mount KNX pushbutton interface with 6 dry-contact inputs and 2 LED outputs in a 34 x 34 x 11 mm housing that fits in any wall box behind a conventional switch or pushbutton. It connects standard switches, pushbuttons, magnetic contacts and bedside controls to the bus and drives low-current status LEDs, which is the usual way to bring existing wiring devices into a KNX hotel room or renovated apartment.

Each input can send switching, dimming, shutter, scene or sequence commands with short/long press detection, the LEDs can follow bus objects or local state, and 16 logic blocks with the Virtual Holder presence function run inside the module. Connection is through a 12-way AWG24 wired connector, and bus consumption stays below 5 mA.

Key Features

  • 6 dry-contact inputs for pushbuttons, switches and contacts; cable up to 10 m (33 ft)
  • 2 LED outputs, 0.5 mA at 3.3 V, for indicator LEDs
  • Input functions: switching, dimming, shutters, scenes, sequences, short/long press
  • 16 logic blocks; Virtual Holder logic for hotel-room presence detection
  • Bus-powered, ≤ 5 mA at 21–31 V DC
  • 12-way AWG24 wired connector
  • 34 x 34 x 11 mm, approx. 38 g; 240 group addresses / 280 associations
  • Optional DIN-rail mounting with IOxxD01ACC

Technical Specifications

Power supply Via KNX bus, 21–31 V DC (SELV)
Current consumption ≤ 5 mA
Inputs 6 dry-contact; scanning 3.3 V DC; max cable 10 m (33 ft)
LED outputs 2; 0.5 mA at 3.3 V
Security Plain KNX (secure version: IO44D02KNX-S)
Logic blocks 16
Connection 12-way wired connector, AWG24
Group addresses / associations 240 / 280
Mounting Flush-mount box; DIN rail with IOxxD01ACC
Dimensions 34 x 34 x 11 mm (1.34 x 1.34 x 0.43 in)
Enclosure IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IO62D02KNX pushbutton interface application
Weight (net) 0.04 kg (0.09 lb)
Manufacturer part no. / GTIN IO62D02KNX / 8054144523163

Related Products

Other versions: IO22D02KNX, IO44D02KNX, IO44D02KNX-S (2 in / 2 LED; 4 / 4; 4 / 4 secure; 6 in / 2 LED). DIN-rail adapter: IOxxD01ACC. With NTC probe inputs: AD84C01KNX; with relays and BLE beacon: IO42E01KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
