Eelectron IO44D02KNX-S KNX push-button interface 4-way, 4 LED outputs, secure

SKU: IO44D02KNX-S
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$65.90 USD
-26% $89.60 USD $65.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

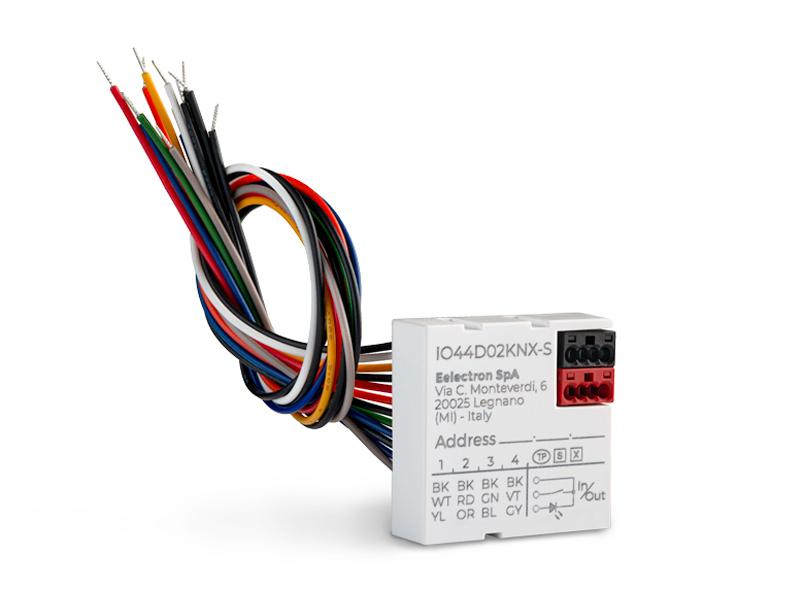

The Eelectron IO44D02KNX-S is a flush-mount KNX pushbutton interface with 4 dry-contact inputs and 4 LED outputs in a 34 x 34 x 11 mm housing that fits in any wall box behind a conventional switch or pushbutton. It is the KNX Data Secure version of the IO44D02KNX, for projects that require encrypted group communication from the room level up.

Each input can send switching, dimming, shutter, scene or sequence commands with short/long press detection, the LEDs can follow bus objects or local state, and 16 logic blocks with the Virtual Holder presence function run inside the module. Connection is through a 12-way AWG24 wired connector, and bus consumption stays below 5 mA.

Key Features

  • 4 dry-contact inputs for pushbuttons, switches and contacts; cable up to 10 m (33 ft)
  • 4 LED outputs, 0.5 mA at 3.3 V, for indicator LEDs
  • Input functions: switching, dimming, shutters, scenes, sequences, short/long press
  • 16 logic blocks; Virtual Holder logic for hotel-room presence detection
  • KNX Data Secure
  • Bus-powered, ≤ 5 mA at 21–31 V DC
  • 12-way AWG24 wired connector
  • 34 x 34 x 11 mm, approx. 38 g; 240 group addresses / 280 associations
  • Optional DIN-rail mounting with IOxxD01ACC

Technical Specifications

Power supply Via KNX bus, 21–31 V DC (SELV)
Current consumption ≤ 5 mA
Inputs 4 dry-contact; scanning 3.3 V DC; max cable 10 m (33 ft)
LED outputs 4; 0.5 mA at 3.3 V
Security KNX Data Secure
Logic blocks 16
Connection 12-way wired connector, AWG24
Group addresses / associations 240 / 280
Mounting Flush-mount box; DIN rail with IOxxD01ACC
Dimensions 34 x 34 x 11 mm (1.34 x 1.34 x 0.43 in)
Enclosure IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IO44D02KNX-S pushbutton interface application with Data Secure
Weight (net) 0.04 kg (0.09 lb)
Manufacturer part no. / GTIN IO44D02KNX-S / 8054144523156

Related Products

Other versions: IO22D02KNX, IO44D02KNX, IO62D02KNX (2 in / 2 LED; 4 / 4; 4 / 4 secure; 6 in / 2 LED). DIN-rail adapter: IOxxD01ACC. With NTC probe inputs: AD84C01KNX; with relays and BLE beacon: IO42E01KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
