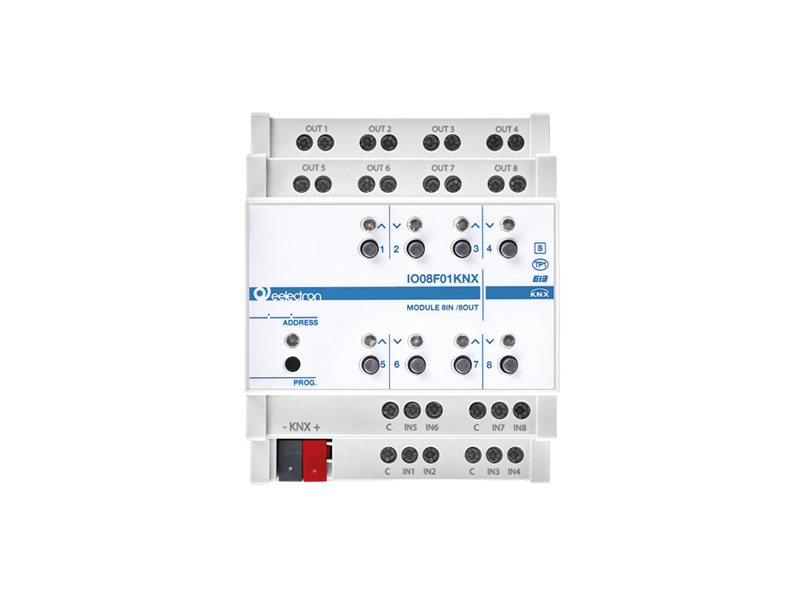

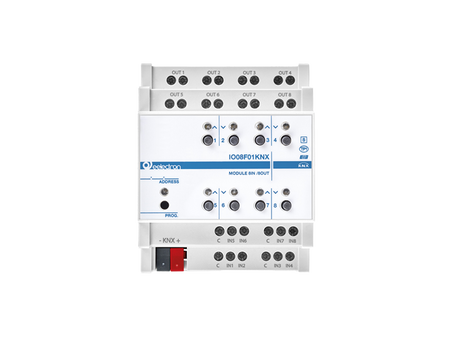

The Eelectron IO08F01KNX is a universal DIN-rail actuator with 8 relay outputs rated 16 A at 230 V AC and 8 dry-contact inputs, part of the F-series “PLUS” range of universal modules for KNX. Each relay can be assigned independently to lighting or generic loads, or grouped in software for shutters, 3-point valves, PWM thermoelectric valves and 2-pipe or 4-pipe fan coils, so one 4-module device covers the mixed loads of a hotel room, office floor or residential panel.

The 8 inputs are the differentiator: pushbuttons, window contacts and NTC probes land directly on the actuator instead of separate input modules, and 4 PI thermostat modules run inside the device to drive heating and cooling without a wall thermostat. Front-panel buttons and LEDs allow local switching and status checks during commissioning; a -SD variant (IO08F01KNX-SD) with microSD configuration backup is also available.

Key Features

  • 8 relay outputs, 16 A cos φ 1 / 8 A cos φ 0.6 at 230 V AC, each on independent terminals so different phases can be mixed
  • Configurable as 8 outputs for lights/loads; 8 PWM valve channels; 4 roller-shutter/venetian channels; 4 three-point valve channels; 2 two-pipe fan coils
  • Logic interlock: combine 2 or 3 relays with logic interlock for 4-pipe / 3-speed fan coils, or group up to 8 relays with interlock for special functions
  • Inputs 1–4 accept dry-contact pushbuttons/switches, can be re-purposed as signalling-LED outputs (LD00A01ACC / LD00A11ACC), and 4 inputs can be configured as analog NTC probe inputs
  • Up to 4 complete thermostat modules, each 2-stage with integrated PI controller for heating/cooling equipment, valves and 2/4-pipe fan coils
  • Compatible NTC probes: TS01A01ACC (-20 to +100 °C), TS01B01ACC (-50 to +60 °C), TS01D01ACC (-5 to +45 °C)
  • Manual front buttons for local relay switching and status LEDs on every output
  • 4-module DIN-rail housing (PC-ABS) for LV distribution boards; 250 group addresses / 250 associations
  • Relays shipped open; connect the bus before load voltage at first power-up

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 10 mA from bus; 10–30 mA for 50 ms during switching (ETS parameter)
Outputs 8 relays, 16 A cos φ 1 / 8 A cos φ 0.6 at 230 V AC
Max relay current 16 A / 16 AX (140 µF); minimum switching current 10 mA
Max peak current 165 A / 20 ms
Load limits Incandescent lamps 10 A; motors 10 A; fluorescent lamps 3 A (700 W, max 140 µF); electronic ballasts 6 A; LED drivers: check driver inrush against relay peak rating
Terminals Max 2.5 mm² (approx. 14 AWG) solid or stranded
Inputs (digital mode) 8 dry-contact inputs (SELV circuits), scanning voltage 3.3 V DC, max cable length 30 m (98 ft) twisted
Inputs (analog mode) NTC probes TS01A01ACC (-20 to +100 °C), TS01B01ACC (-50 to +60 °C), TS01D01ACC (-5 to +45 °C); max cable length 30 m (98 ft) twisted
SELV outputs Outputs may be connected to SELV circuits only if all outputs on the same level (01–04 or 05–08) are SELV
Group addresses / associations 250 / 250
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure PC-ABS, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application F-series universal actuator application (ETS 5 or later)
Weight (net) 0.3 kg (0.66 lb)
Manufacturer part no. / GTIN IO08F01KNX / 8054144521299

Related Products

Same family: IO08F01KNX-SD (with microSD backup) and BO08F01KNX (outputs only); other sizes with 4, 12, 16, 24 outputs (BOxxF01KNX output-only, IOxxF01KNX with inputs, each also as -SD). Accessories: NTC probes TS01A01ACC, TS01B01ACC, TS01D01ACC; signalling LEDs LD00A01ACC / LD00A11ACC. Pair with a KNX power supply such as PS00D03KNX (640 mA) or PS00D04KNX (1280 mA).

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
