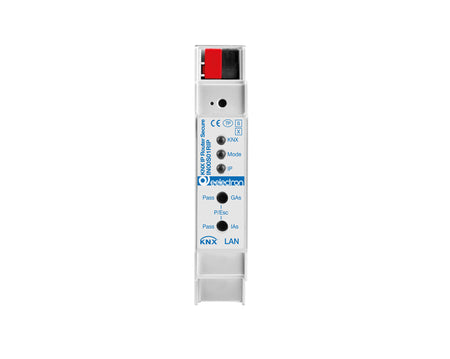

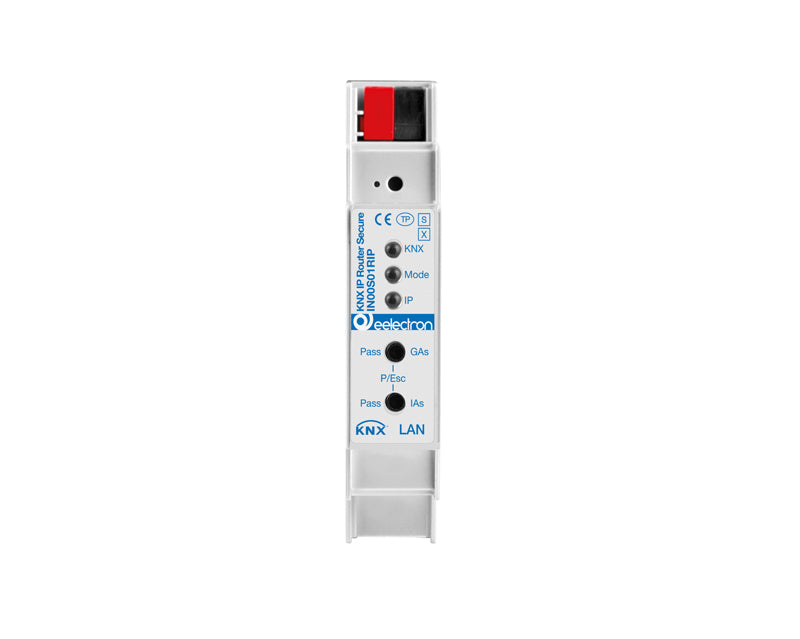

Eelectron IN00S01RIP KNX IP router REG, secure

SKU: IN00S01RIP
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$453.90 USD
-27% $619.36 USD $453.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IN00S01RIP is a KNX IP router with KNX IP Secure. It couples a KNX TP line or area to the IP backbone with filtered routing, and at the same time serves up to 8 tunneling connections for ETS and visualization. Multicast routing over the LAN replaces TP main lines in larger buildings, which simplifies cabling between floors and technical rooms.

The filter table covers main groups 0 to 31, a 150-telegram buffer absorbs traffic peaks, and both routing and tunneling can be secured with AES-128. The device draws about 20 mA from the bus and needs only a single DIN module.

In a secure installation the router's backbone key and tunnel passwords are generated and distributed by ETS, so unauthorized IP clients cannot inject telegrams onto the TP line. The filter table is built automatically from the project and limits which group addresses pass between the line and the backbone, protecting the TP segment from unnecessary traffic. Diagnostics LEDs make it easy to see routing activity and buffer overflow conditions during commissioning.

Key Features

  • KNXnet/IP routing (line or area coupler) plus 8 tunneling connections
  • KNX IP Secure for routing and tunneling, AES-128
  • Filter table for main groups 0–31; 150-telegram buffer
  • Ethernet RJ45; DHCP, Auto-IP or static address
  • Bus-powered, approx. 20 mA; no auxiliary supply
  • Status LEDs for bus, LAN, routing and programming
  • 1-module (18 mm) DIN housing, approx. 40 g

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption approx. 20 mA
Interfaces KNX TP; Ethernet RJ45
Functions KNXnet/IP routing + 8 tunneling connections
Security KNX IP Secure, AES-128
Filter table Main groups 0–31
Telegram buffer 150 telegrams
Mounting DIN rail, 1 module (18 mm / 0.71 in)
Enclosure IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IN00S01RIP IP router secure
Weight (net) 0.08 kg (0.18 lb)
Manufacturer part no. / GTIN IN00S01RIP / 8054144521268

Related Products

Interface-only: IN00S01IPI. TP line coupler: LC00S01KNX. Power supply with IP interface: IPSBA01KNX / IPSBA02KNX. Each line behind the router needs its own PSU, e.g. PS00D03KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
