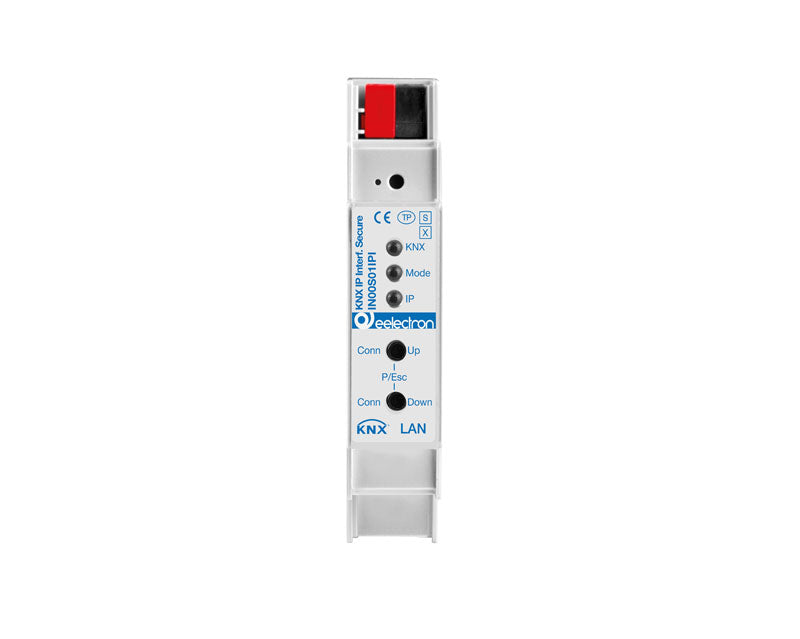

Eelectron IN00S01IPI KNX IP Interface REG, secure

SKU: IN00S01IPI
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$317.90 USD
-27% $433.44 USD $317.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IN00S01IPI is a KNX IP interface with KNX IP Secure, giving ETS and visualization clients access to a KNX TP line over the LAN through up to 8 simultaneous tunneling connections. Tunnels are encrypted with AES-128 when Secure mode is enabled in ETS, which is now expected on commercial and hospitality projects where the KNX network shares infrastructure with IT.

The device is powered from the bus (about 20 mA), takes its address by DHCP, Auto-IP or static setting, and occupies a single DIN module. It is the simplest way to add remote programming and a supervision link to a line without using a router.

Each tunneling connection has its own individual address assigned in ETS, so several technicians or software clients can work on the line at once. The interface is also the recommended link for supervision software that needs reliable, encrypted access to the bus from the building LAN, and it can be left in programming or operational mode without any effect on the installed devices. For topologies where telegrams must cross between lines over the IP network, the router version IN00S01RIP is used instead.

Key Features

  • KNXnet/IP tunneling with up to 8 parallel connections
  • KNX IP Secure: AES-128 encrypted tunnels (ETS 5.7 or later)
  • Max APDU 55 bytes
  • 10BaseT Ethernet, RJ45; DHCP, Auto-IP or static address
  • Bus-powered, approx. 20 mA; no auxiliary supply
  • Status LEDs for bus, LAN and programming
  • 1-module (18 mm) DIN housing, approx. 40 g

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption approx. 20 mA
Interfaces KNX TP; Ethernet 10BaseT RJ45
Tunneling connections 8
Security KNX IP Secure, AES-128
Max APDU 55 bytes
IP configuration DHCP / Auto-IP / static
Mounting DIN rail, 1 module (18 mm / 0.71 in)
Enclosure IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IN00S01IPI IP interface secure
Weight (net) 0.1 kg (0.22 lb)
Manufacturer part no. / GTIN IN00S01IPI / 8054144521251

Related Products

Routing between lines over IP: IN00S01RIP. Power supply with built-in IP interface: IPSBA01KNX / IPSBA02KNX / IPSBA03KNX / IPSBA04KNX. USB interface: IN00C01USB. Line coupler: LC00S01KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
