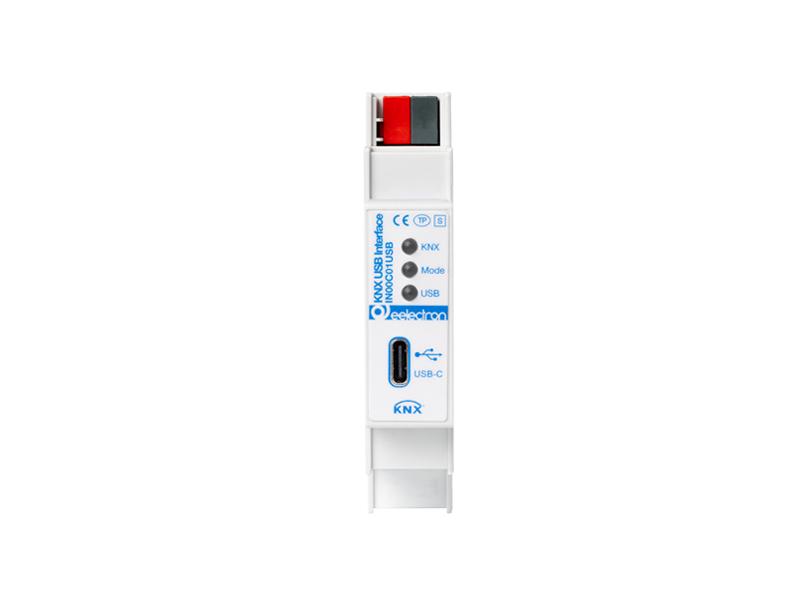

Eelectron IN00C01USB KNX USB Interface REG, USB-C
Eelectron IN00C01USB KNX USB Interface REG, USB-C

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron IN00C01USB KNX USB Interface REG, USB-C

SKU: IN00C01USB
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$243.90 USD
-27% $332.64 USD $243.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IN00C01USB is a KNX USB interface with a USB-C connector, used to connect a laptop running ETS to the KNX TP line for programming, diagnostics and bus monitoring. It supports long frames (APDU 233) as a System B device, so large ETS6 applications download at full speed, and it is powered from the USB port with only about 3 mA drawn from the KNX bus.

The interface is galvanically isolated between USB and bus and appears in ETS as a standard HID/cEMI device, with no driver installation. Three LEDs show USB, KNX and traffic state. In the 1-module DIN housing it can stay permanently in the panel as a service port; the USB cable should not exceed 5 m.

Key Features

  • KNX TP to USB-C interface for ETS programming and bus monitoring
  • Long frame support, APDU 233 bytes, KNX System B
  • HID / cEMI protocol, no driver installation (ETS 4 and later)
  • Galvanic isolation between USB and KNX
  • Powered from USB (< 15 mA); KNX bus load < 3 mA
  • 3 status LEDs: USB, KNX, traffic
  • USB cable length up to 5 m (16 ft)
  • 1-module (18 mm) PC DIN housing, approx. 40 g

Technical Specifications

Power supply From USB port, < 15 mA; KNX bus 21–32 V DC, < 3 mA
Interfaces KNX TP; USB-C (USB 2.0 full speed, HID / cEMI)
Max APDU 233 bytes (long frames); System B
Max USB cable length 5 m (16 ft)
Isolation Galvanic isolation USB / KNX
Indicators 3 LEDs
Mounting DIN rail, 1 module (18 mm / 0.71 in)
Enclosure PC, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IN00C01USB USB interface (no parameters)
Weight (net) 0.08 kg (0.18 lb)
Manufacturer part no. / GTIN IN00C01USB / 8054144525365

Related Products

Network-based programming interfaces: IN00S01IPI (IP interface, 8 tunnels) and IN00S01RIP (IP router). Line coupler: LC00S01KNX. Power supplies: PS00D03KNX, PS00D04KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
