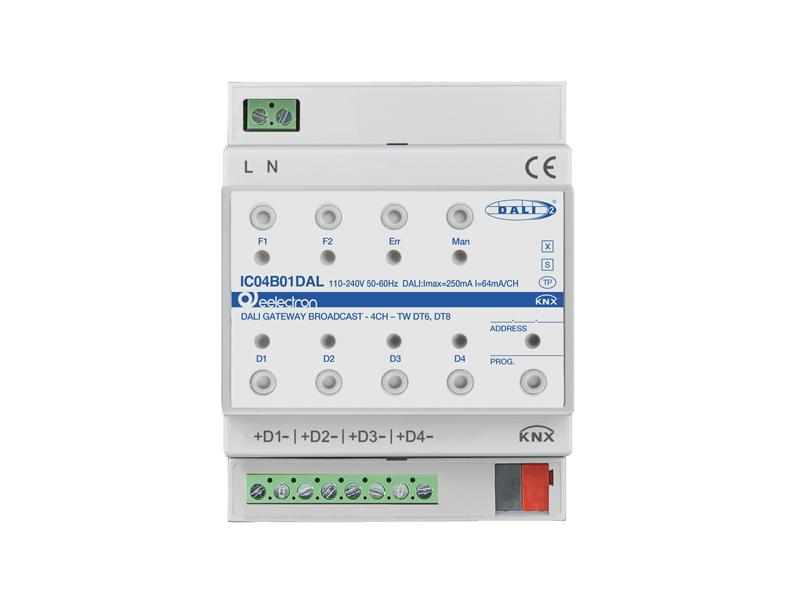

The Eelectron IC04B01DAL is a 4-channel KNX–DALI broadcast gateway: each of its four DALI outputs drives up to 32 control gear as one group, with no DALI addressing or commissioning. It behaves like a 4-channel dimmer whose channels happen to speak DALI, which makes it ideal for small projects, residences and retrofits where each zone of luminaires is one circuit and the time spent on DALI commissioning would not be justified.

Despite the broadcast approach, DT8 drivers are fully supported: tunable white (Tc), RGB, HSV and RGBW per channel, Dim-To-Cold for colour temperature that follows intensity, and 16 scenes. KNX Data Secure protects the bus, the gateway powers all four DALI lines internally (18 V, 64 mA guaranteed per channel) from its 100–240 V AC supply, and the 4-module class II housing sits in any DIN panel.

Key Features

  • 4 broadcast DALI channels, up to 32 ECGs each (128 total), no DALI addressing needed
  • DT6 and DT8 per channel: tunable white (Tc), RGB, HSV, RGBW; Dim-To-Cold function
  • 16 scenes plus dimming ramps, staircase timers and status feedback
  • KNX Data Secure
  • Internal DALI supply per channel: 18 V DC, 64 mA guaranteed, 250 mA max
  • Mains supply 100–240 V AC, about 8 W; no external DALI PSU
  • Front buttons and LEDs for manual channel control
  • 4-module DIN housing 72 x 58 x 90 mm, protection class II

Technical Specifications

Power supply 100–240 V AC, approx. 8 W; KNX bus 21–32 V DC
DALI outputs 4 broadcast channels; 18 V DC; 64 mA guaranteed per channel, 250 mA max; 32 ECGs per channel
DALI device types DT6; DT8 Tc / RGB / HSV / RGBW
Scenes 16
Security KNX Data Secure
Mounting DIN rail, 4 modules (4 TE)
Dimensions 72 x 58 x 90 mm (2.83 x 2.28 x 3.54 in)
Enclosure IP20 (EN 60529); protection class II
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IC04B01DAL broadcast DALI gateway application with Data Secure
Weight (net) 0.14 kg (0.31 lb)
Manufacturer part no. / GTIN IC04B01DAL / 8054144525266

Related Products

Addressed DALI gateways: IC01D01DAL (1 line, 64 ECGs), IC02D01DAL (2 lines), IC01D03DAL (multi-master, sensors, emergency, Ethernet/MQTT). Line extension: LR00A01DAL. Constant-voltage LED strips without DALI: DL04A02KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
