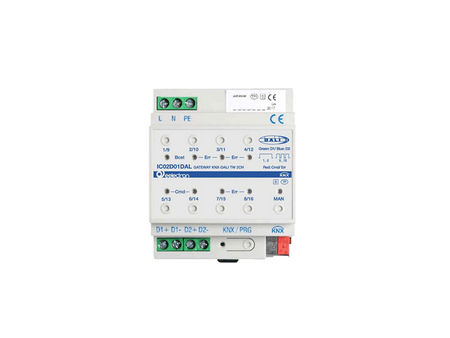

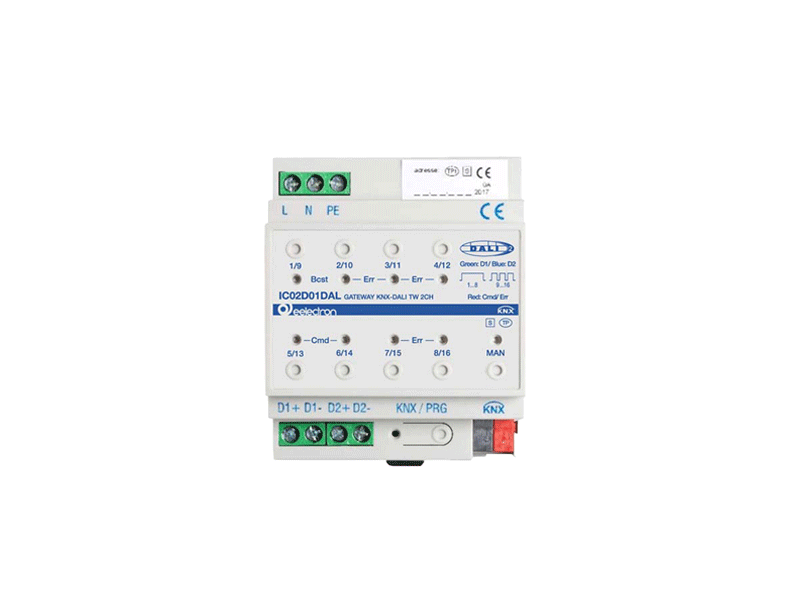

Eelectron IC02D01DAL KNX-DALI Gateway 2-speed, DT8 TW
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$561.90 USD
Regular price
-27%
$767.20 USD
Sale price
$561.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron IC02D01DAL is a KNX–DALI gateway with two independent DALI lines, each supporting 64 control gear in 16 groups, for a total of 128 luminaires from one 4-module device. It works as a single-master application controller with DT6 and DT8 colour control (tunable white, XY, RGB, HSV, RGBW), and is the economical choice for office floors, car parks and retail areas where lighting counts exceed a single line.
Both DALI lines are powered internally (16 V, 128 mA guaranteed per line) from the gateway's own 110–240 V AC/DC supply, so no external DALI PSU is needed. Commissioning uses the ETS DCA with discovery, addressing, grouping and scenes; ECG failures are reported to KNX per device, group or line.
Key Features
- 2 independent DALI lines, 64 ECGs and 16 groups each (128 ECGs total)
- Single-master application controller with DT6 and DT8 control: Tc, XY, RGB, HSV, RGBW
- Internal DALI supply per line: 16 V DC, 128 mA guaranteed, 250 mA max
- Mains supply 110–240 V AC/DC, about 16 W; no external DALI power supply required
- ETS DCA for device discovery, addressing, group and scene configuration
- Scenes, sequences, dimming ramps, staircase timers and lamp/ECG fault feedback to KNX
- Front buttons and LEDs for manual control and status
- 4-module DIN housing, IP20
Technical Specifications
| Power supply | 110–240 V AC/DC, approx. 16 W; KNX bus 21–32 V DC |
| DALI outputs | 2 lines; 16 V DC; 128 mA guaranteed, 250 mA max per line; 64 ECGs and 16 groups per line |
| DALI device types | DT6; DT8 Tc / XY / RGB / HSV / RGBW |
| Mounting | DIN rail, 4 modules; LV distribution switchboard |
| Enclosure | IP20 (EN 60529) |
| Operating temperature | -5 °C to +45 °C (23 °F to 113 °F) |
| Storage temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Relative humidity | max 90 % non-condensing, indoor use |
| Standards | EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | KNX certified; CE |
| ETS application | IC02D01DAL DALI gateway application with DCA |
| Weight (net) | 0.25 kg (0.55 lb) |
| Manufacturer part no. / GTIN | IC02D01DAL / 8054144522234 |
Related Products
Single line: IC01D01DAL. Multi-master with DALI-2 sensors, emergency testing, Ethernet and MQTT: IC01D03DAL. Broadcast 4-channel: IC04B01DAL. Line extension: LR00A01DAL. DALI-2 pushbutton interfaces: PB40A01DL2 / PB44A01DL2.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
