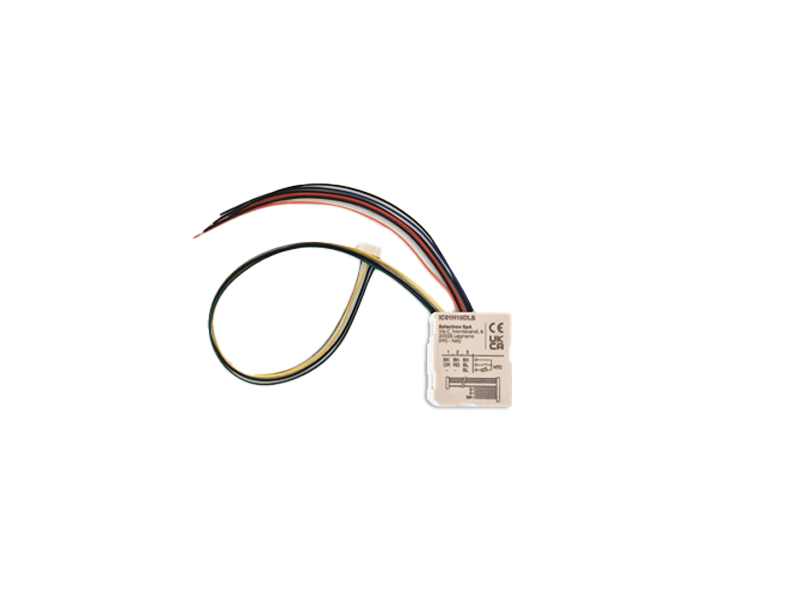

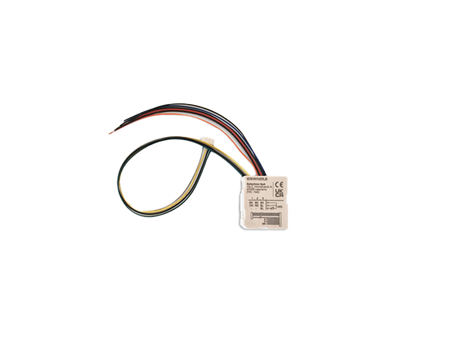

Eelectron IC01H10DLS Plugin Wireless Door Lock Interface Room Level (For Pd00E1Xknx)

The Eelectron IC01H10DLS is the plug-in wireless door-lock interface for the PD00E1x BLE presence detectors (PD00E11KNX and PD00E13KNX). It clips onto the rear connector of the ceiling sensor and brings door open/close events from a wireless electronic lock system onto the KNX bus, so the room controller knows not only that someone is moving but that the door has just been used — the missing piece for accurate hotel-room occupancy, welcome scenes and housekeeping status.

A single interface serves up to 8 doors at room level, which suits suites, connecting rooms and small apartment clusters. The plug-in is supplied with a 300 mm cabled connector that keeps the sensor’s three rear digital inputs fully available, so door contacts, bedside pushbuttons or an NTC probe can still be wired in parallel. Combined with Eelectron’s Virtual Holder logic in the sensor, door events and PIR data are merged into one reliable occupied / unoccupied state that detects unexpected presence.

Key Features

• Plug-in interface for wireless electronic door-lock systems, mounted on the rear connector of PD00E11KNX / PD00E13KNX (white or black)
• Manages up to 8 doors per interface (room level)
• Reports door opening / closing data to the KNX bus for automated room management
• The sensor’s 3 rear inputs remain available with the plug-in connected (300 mm, 6-pole AWG 24 cabled connector)
• Powered through the host sensor from the KNX bus — total consumption sensor + plug-in ≤ 10 mA
• Feeds the Virtual Holder logic for accurate hospitality occupancy and unexpected-presence detection
• No additional bus device or power supply required
• Compatible with the IC01H10DLS-ready PD00E1x range only (not PD00E0x / PD00E2x / PD00E3x)

Technical Specifications

Related Products

Host sensors: PD00E11KNX / PD00E11KNX-3 (Standard BLE) and PD00E13KNX / PD00E13KNX-3 (Space BLE). Mounting accessories for the sensor: PD00E00ACC / PD00E00ACC-3, PD00E01ACC, PD00E03ACC / PD00E03ACC-3; PD00E06ACC-10 input extension cable.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
