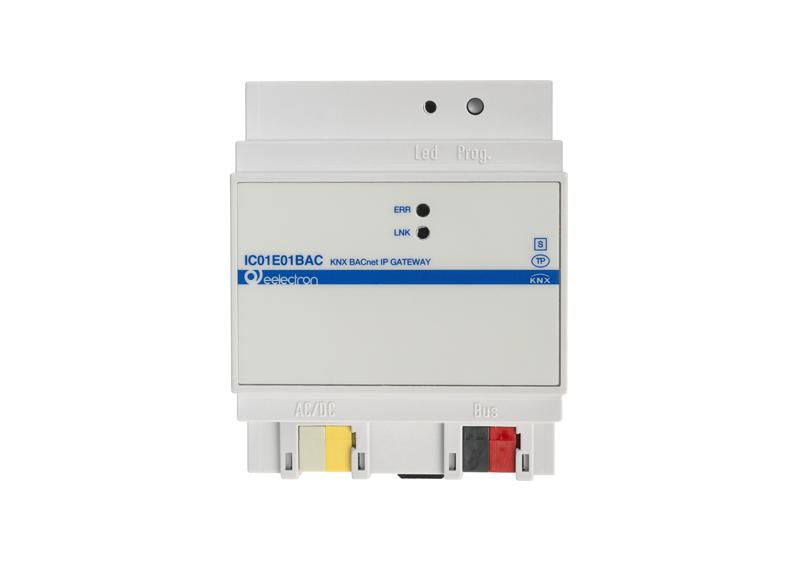

Eelectron IC01E01BAC KNX-BACnet Gateway 250 data points

SKU: IC01E01BAC
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$506.90 USD
-27% $692.16 USD $506.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IC01E01BAC is a KNX–BACnet/IP gateway that publishes up to 250 KNX group objects as BACnet objects, so a building management system can read and write lighting, HVAC and shading points from the KNX installation. It supports COV subscription and Read Property services and includes a web server for configuration and diagnostics, which covers the typical requirements of office and healthcare integrations.

The gateway is powered from the KNX bus plus a 24 V DC auxiliary supply (about 40 mA, 1 W), ships with the default IP address 192.168.1.135 and is configured with ETS 4 or later. The 4-module DIN housing (70 x 58 x 90 mm) fits beside the KNX IP devices in the main panel.

On the BACnet side, each mapped KNX object is exposed with its own object identifier and can be read on demand or subscribed to for change-of-value notifications, which keeps network traffic low on large systems. On the KNX side the gateway behaves like any other bus participant and is assigned its physical address and group links in ETS. The combination lets a facility BMS monitor room temperatures, setpoints, lighting states and alarms coming from the KNX installation and send schedules or setpoint overrides back, without any custom protocol development.

Key Features

  • KNX to BACnet/IP gateway, up to 250 objects
  • BACnet COV subscription and Read Property services
  • Integrated web server for configuration and diagnostics
  • Default IP 192.168.1.135, configurable
  • KNX bus 21–30 V DC plus 24 V DC auxiliary supply (approx. 40 mA / 1 W)
  • ETS 4 or later; 4-module DIN housing 70 x 58 x 90 mm, approx. 117 g

Technical Specifications

Power supply KNX bus 21–30 V DC; auxiliary 24 V DC, approx. 40 mA (1 W)
Interfaces KNX TP; Ethernet RJ45 (BACnet/IP, web server)
BACnet objects 250; COV subscription; Read Property
Default IP address 192.168.1.135
Mounting DIN rail, 4 modules (4 TE)
Dimensions 70 x 58 x 90 mm (2.76 x 2.28 x 3.54 in)
Enclosure IP20 (EN 60529)
Certifications KNX certified; CE
ETS application IC01E01BAC BACnet gateway application, ETS 4 or later
Weight (net) 0.25 kg (0.55 lb)
Manufacturer part no. / GTIN IC01E01BAC / 8054144522968

Related Products

Modbus integration: IC00M01KNX (RTU) and IPSBA04KNX (Modbus + MQTT in the power supply). KNX IP interfaces and routers: IN00S01IPI, IN00S01RIP. Auxiliary 24 V DC can be taken from the AUX output of PS00D03KNX / PS00E03KNX (30 V DC) only if within the gateway's tolerance; verify with the datasheet.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
