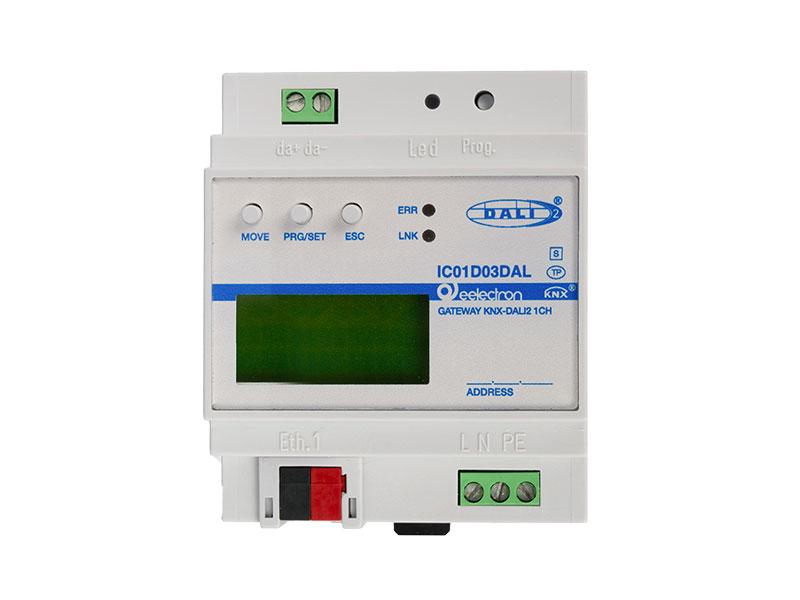

Eelectron IC01D03DAL KNX-DALI Gateway MQTT single
Eelectron IC01D03DAL KNX-DALI Gateway MQTT single

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron IC01D03DAL KNX-DALI Gateway MQTT single

SKU: IC01D03DAL
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$582.90 USD
-27% $795.20 USD $582.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IC01D03DAL is a multi-master KNX–DALI-2 gateway with Ethernet and MQTT, built for projects where the DALI line carries not only drivers but also DALI-2 sensors and pushbuttons. One line serves 64 ECGs in 16 groups plus 8 DALI-2 occupancy/light sensors, 8 DALI-2 button devices and 8 generic DALI inputs, with constant-light regulation and full DT8 colour control (Tc, XY, RGB, HSV, RGBW).

Emergency luminaires per IEC 62386-202 are managed with function and duration tests and results reported to KNX, and the built-in web server on the RJ45 port gives commissioning, monitoring and MQTT publishing without additional hardware. A 2 x 12 character LC display and front buttons allow local addressing and diagnostics, KNX Data Secure protects the bus side, and the internal DALI supply (18 V, 160 mA guaranteed) removes the need for a separate PSU. Typical sites are offices, schools, healthcare and hospitality with DALI-2 sensor-based lighting.

Key Features

  • 1 DALI line, multi-master: 64 ECGs / 16 groups + 8 DALI-2 sensors + 8 DALI-2 pushbutton devices + 8 generic inputs
  • DT6 and DT8 control: tunable white, XY, RGB, HSV, RGBW; constant-light (daylight) regulation
  • Emergency lighting management per IEC 62386-202: function and duration tests, status and results to KNX
  • Ethernet RJ45 100BaseT with integrated web server for commissioning and monitoring; MQTT publishing
  • KNX Data Secure
  • LC display 2 x 12 characters and front buttons for local addressing, test and diagnostics
  • Internal DALI supply 18 V DC, 160 mA guaranteed, 250 mA max
  • Mains supply 100–240 V AC, about 8 W
  • 4-module DIN housing, 72 x 58 x 90 mm

Technical Specifications

Power supply 100–240 V AC, approx. 8 W; KNX bus 21–32 V DC
DALI output 1 line, multi-master; 18 V DC; 160 mA guaranteed, 250 mA max
DALI devices 64 ECGs, 16 groups; 8 DALI-2 sensors; 8 DALI-2 pushbutton devices; 8 generic inputs
DALI device types DT6; DT8 Tc / XY / RGB / HSV / RGBW; emergency DT1 per IEC 62386-202
Network Ethernet RJ45 100BaseT; web server; MQTT
Security KNX Data Secure
Display / controls LC display 2 x 12 characters; front buttons; KNX programming button and LED
Mounting DIN rail, 4 modules (4 DU)
Dimensions 72 x 58 x 90 mm (2.83 x 2.28 x 3.54 in)
Enclosure IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IC01D03DAL multi-master DALI-2 gateway application with Data Secure
Weight (net) 0.25 kg (0.55 lb)
Manufacturer part no. / GTIN IC01D03DAL / 8054144522654

Related Products

Single-master gateways: IC01D01DAL (1 line) and IC02D01DAL (2 lines). Broadcast: IC04B01DAL. Line extension: LR00A01DAL. DALI-2 pushbutton interfaces: PB40A01DL2 / PB44A01DL2. KNX IP infrastructure: IN00S01IPI, IN00S01RIP, IPSBA01KNX.
