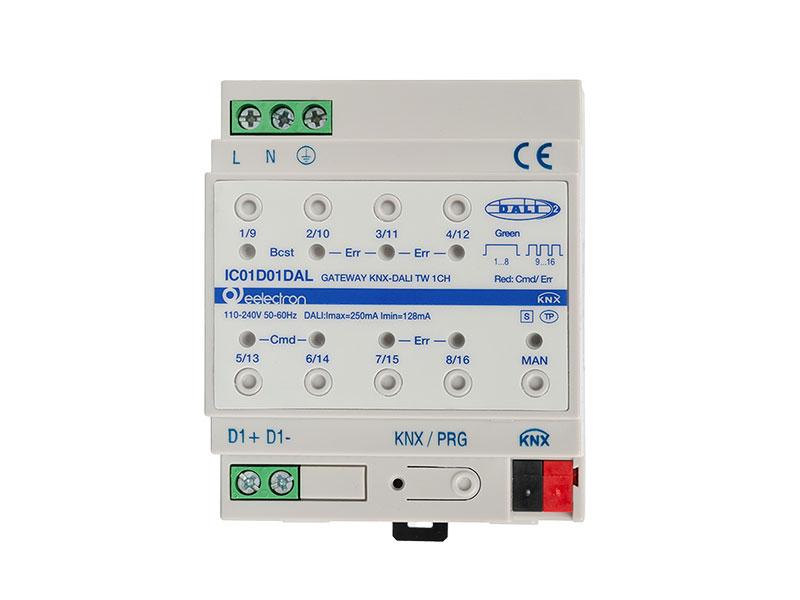

Eelectron IC01D01DAL KNX-DALI Gateway 1x, DT8 TW
Eelectron IC01D01DAL KNX-DALI Gateway 1x, DT8 TW

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron IC01D01DAL KNX-DALI Gateway 1x, DT8 TW

SKU: IC01D01DAL
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$389.90 USD
-27% $532.00 USD $389.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron IC01D01DAL is a KNX–DALI gateway with one DALI line for up to 64 control gear (ECG) in 16 groups, certified DALI-2 as a single-master application controller. It handles DT6 (standard) and DT8 drivers for tunable white (Tc), XY, RGB, HSV and RGBW colour control, which makes it the standard bridge between a KNX building system and DALI luminaires in offices, retail and hospitality.

The gateway has its own 110–240 V AC/DC supply and generates the DALI line voltage internally (18 V, 128 mA guaranteed), so no separate DALI power supply is needed. Commissioning is done through the ETS DCA with device discovery, addressing and group assignment; eight front buttons with LEDs allow manual group switching without the bus. DT-1 emergency lighting is read only; for full emergency-test management with sensors and inputs use the multi-master IC01D03DAL.

Key Features

  • 1 DALI line, up to 64 ECGs and 16 groups, DALI-2 certified single-master application controller
  • DT6 and DT8 control: tunable white (Tc), XY, RGB, HSV, RGBW
  • Internal DALI power supply 18 V DC, 128 mA guaranteed (250 mA max)
  • Mains supply 110–240 V AC/DC, about 9 W; bus consumption approx. 5 mA
  • ETS DCA (ETS5 and later) for discovery, addressing, grouping and scene setup
  • 8 front buttons and LEDs for manual group control; KNX programming button
  • Scenes, sequences, dimming ramps, staircase timing and ECG fault reporting to KNX
  • DT-1 emergency ECGs: status reading only
  • 4-module DIN housing, protection class I, IP20

Technical Specifications

Power supply 110–240 V AC/DC, approx. 9 W; KNX bus 21–32 V DC
Current consumption (bus) approx. 5 mA
DALI output 1 line; 18 V DC; 128 mA guaranteed, 250 mA max; 64 ECGs, 16 groups
DALI device types DT6; DT8 Tc / XY / RGB / HSV / RGBW; DT-1 read only
Certification DALI-2 single-master application controller; KNX certified
Controls 8 group buttons with LEDs; KNX programming button and LED
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure IP20 (EN 60529); protection class I
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application IC01D01DAL DALI gateway application with DCA (ETS5 or later)
Weight (net) 0.25 kg (0.55 lb)
Manufacturer part no. / GTIN IC01D01DAL / 8054144522937

Related Products

Two DALI lines: IC02D01DAL. Multi-master with sensors, inputs, emergency testing, Ethernet and MQTT: IC01D03DAL. Broadcast 4-channel gateway without DALI addressing: IC04B01DAL. DALI line extension: LR00A01DAL repeater. DALI-2 pushbutton interfaces: PB40A01DL2 / PB44A01DL2.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
