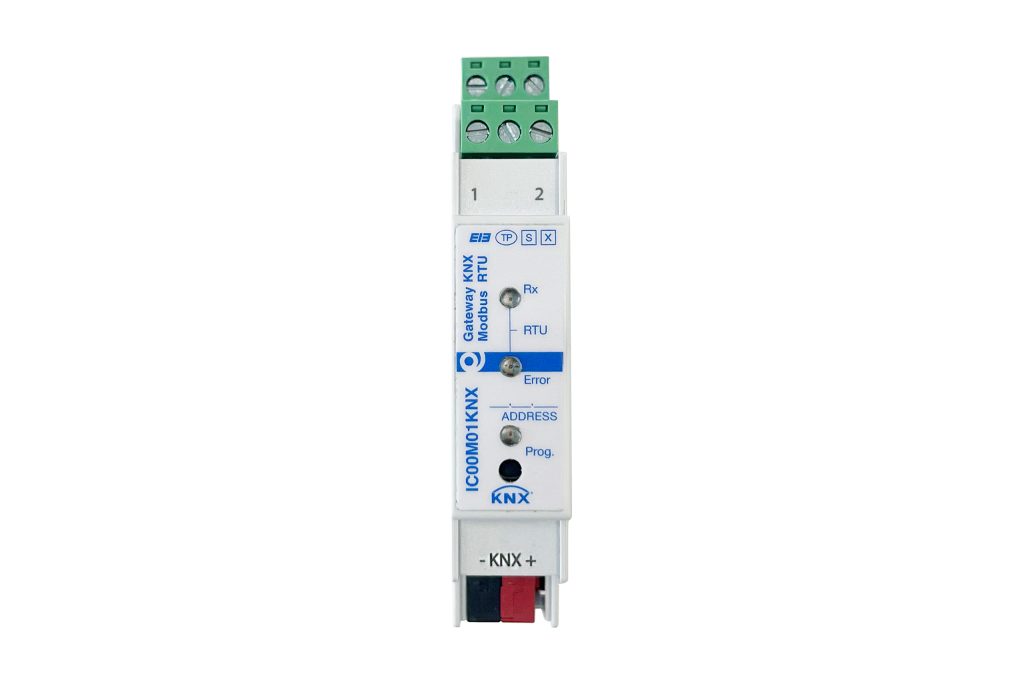

Eelectron IC00M01KNX KNX Modbus Gateway Modbus RTU
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$181.90 USD
Regular price
-27%
$247.52 USD
Sale price
$181.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron IC00M01KNX is a bidirectional KNX–Modbus RTU gateway in a 1-module DIN housing. It maps up to 250 Modbus registers to KNX group objects and can act as Modbus client (master) polling meters, VFDs, chillers and heat pumps, or as a Modbus server exposing KNX data to a BMS or PLC over RS-485. That makes it the standard way to bring energy meters, HVAC plant and third-party controllers into a KNX system.
Fifty logic blocks allow scaling, thresholds and conditional processing in the gateway itself, the Virtual Holder logic is included for hospitality presence detection, and KNX Data Secure protects the bus side. An end-of-line termination jumper for the RS-485 bus is on board and the device is bus-powered at 15 mA.
Key Features
- Bidirectional KNX–Modbus RTU over RS-485; client (master) or server (slave) mode
- 250 Modbus channels mapped to KNX objects; read/write with data conversion and scaling
- 50 logic blocks with logical, threshold, algebraic and conditional operators
- Virtual Holder logic for presence detection in hotel rooms
- KNX Data Secure
- RS-485 end-of-line termination jumper on board
- 960 group addresses / 1120 associations
- Bus-powered, 15 mA; 1-module (18 mm) PC DIN housing, approx. 40 g
Technical Specifications
| Power supply | Via KNX bus, 21–32 V DC (SELV) |
| Current consumption | 15 mA |
| Modbus interface | RTU over RS-485, client or server; 250 channels; EOL jumper |
| Security | KNX Data Secure |
| Logic blocks | 50 |
| Group addresses / associations | 960 / 1120 |
| Mounting | DIN rail, 1 module (18 mm / 0.71 in) |
| Enclosure | PC, IP20 (EN 60529) |
| Operating temperature | -5 °C to +45 °C (23 °F to 113 °F) |
| Storage temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Relative humidity | max 90 % non-condensing, indoor use |
| Standards | EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | KNX certified; CE |
| ETS application | IC00M01KNX Modbus gateway application with Data Secure |
| Weight (net) | 0.07 kg (0.15 lb) |
| Manufacturer part no. / GTIN | IC00M01KNX / 8054144528052 |
Related Products
IP-side alternative with Modbus and MQTT built into the power supply: IPSBA04KNX (uses IC00M01ACC RS-485 accessory). BACnet: IC01E01BAC. Energy meters with Modbus-free KNX integration: PM10E02IRE / PM30E01IRE + PM00A00IRI.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
