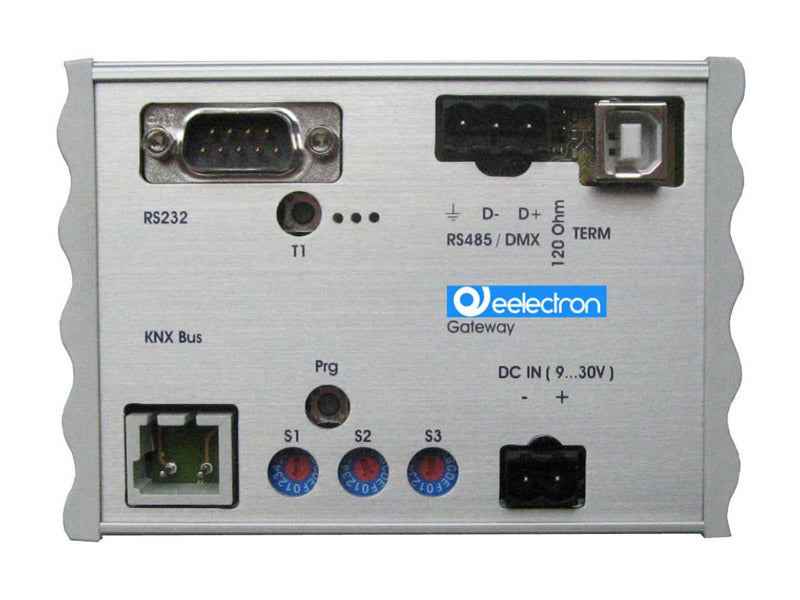

Eelectron IC00B01DMX KNX-DMX Gateway single
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$891.90 USD
Regular price
-8%
$974.40 USD
Sale price
$891.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron IC00B01DMX is a unidirectional KNX-to-DMX512 gateway that lets KNX pushbuttons, scenes and logic drive DMX lighting fixtures, LED controllers and effect devices across all 512 channels of a DMX universe. It is used in bars, hotel lobbies, showrooms and residential media rooms where architectural DMX fixtures must respond to the same wall controls as the rest of the KNX installation.
Channel values, 8 sequences and scenes are configured with the free eDMX configurator software over USB or RS-232, and the KNX main group is set with a rotary switch, so the gateway can be commissioned without ETS. Scenes are then recalled through KNX group addresses. The unit is powered from 9–30 V DC and mounts on a DIN rail.
Commissioning follows a simple sequence: the DMX channel values for each scene and sequence are entered or captured in the eDMX software, the rotary switch is set to the KNX main group that will trigger them, and the gateway is then driven by ordinary group telegrams from pushbuttons, scene controllers or a visualization. Because communication is one-way, DMX fixtures do not report back to KNX; status should therefore be derived from the triggering KNX objects. The RS-232 and USB ports remain available for later edits without removing the unit from the panel.
Key Features
- KNX to DMX512, unidirectional, all 512 DMX channels available
- 8 sequences and scene storage, recalled via KNX group addresses
- KNX main group selected by rotary switch: no ETS download required
- Configuration via eDMX configurator software over USB or RS-232
- Power supply 9–30 V DC
- DIN-rail mounting
Technical Specifications
| Power supply | 9–30 V DC (external) |
| Interfaces | KNX TP; DMX512 output; USB and RS-232 configuration ports |
| DMX channels | 512 |
| Sequences | 8 |
| Configuration | eDMX configurator software; rotary switch for KNX main group |
| Mounting | DIN rail |
| Certifications | CE |
| ETS application | None (configured with eDMX software) |
| Weight (net) | 0.19 kg (0.42 lb) |
| Manufacturer part no. / GTIN | IC00B01DMX / 8054144521206 |
Related Products
Other Eelectron lighting gateways: IC01D01DAL / IC02D01DAL / IC01D03DAL (DALI), IC04B01DAL (DALI broadcast), DL04A02KNX (LED strips). KNX line power: PS00D03KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
