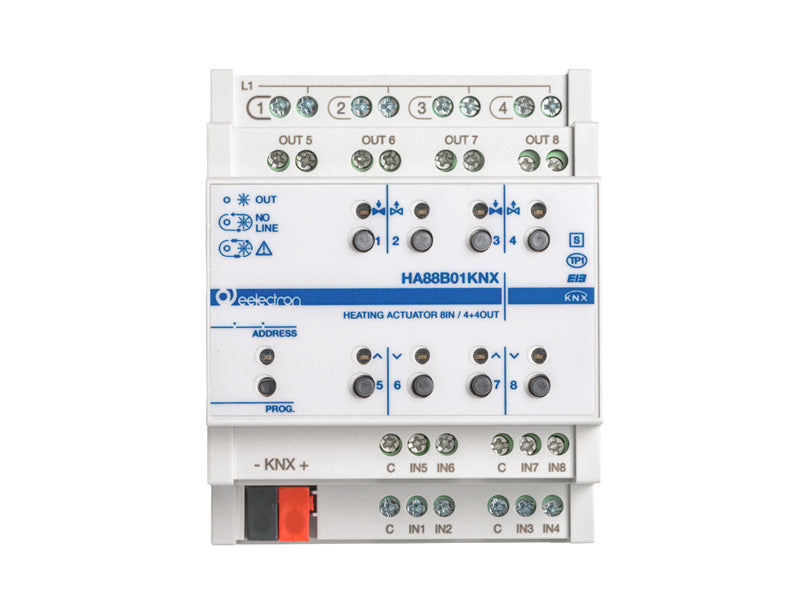

The Eelectron HA88B01KNX is a combined KNX valve and load actuator: 4 Triac outputs (24–230 V AC) for thermoelectric valve drives, 4 relay outputs rated 16 A at 230 V AC, and 8 dry-contact inputs, all in a 4-module DIN housing. It is sized for one room or zone of a hotel or office: valves on the Triacs, fan coil speeds or lighting on the relays, pushbuttons and window contacts on the inputs.

The relay block follows the F-series logic, so the 4 relays can also serve as 4 load outputs, 4 PWM valve channels, 2 shutter channels or 2 three-point valves, or be interlocked in groups of 2, 3 or 4 for 2-pipe/4-pipe fan coils with up to 3 speeds. Inputs 1–4 accept NTC probes, up to 4 complete PI thermostat modules run inside, and 7 logic blocks handle the rest of the room logic.

Key Features

  • 4 Triac outputs, 24–230 V AC, 500 mA each: 4 ON/OFF or PWM valve channels or 2 three-point valve channels
  • 4 relay outputs 16 A cos φ 1 / 8 A cos φ 0.6 at 230 V AC: loads, PWM valves, 2 shutter channels, 2 three-point valves or interlocked groups of 2/3/4 relays
  • Manages 2-pipe or 4-pipe fan coils with up to 3 speeds; unused outputs remain free for other equipment
  • 8 dry-contact inputs for on/off, dimming, shutters, scenes, sequences and step commands
  • Inputs 1–4 configurable as signalling-LED outputs (LD00A01ACC / LD00A11ACC) or NTC probe inputs (TS01A01ACC / TS01B01ACC)
  • Up to 4 thermostat modules (2-stage, integrated PI controller) and 7 logic blocks with proportional-control and dew-point algorithms
  • Manual front buttons and status LEDs for local relay switching
  • Triac outputs share one supply voltage (24 V or 230 V, never mixed); output 1 must be used first
  • 4-module PC-ABS DIN housing; 250 group addresses / 250 associations

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 15 mA; ≤ 30 mA for 50 ms during switching
Triac outputs 4; 24–230 V AC 50/60 Hz; 500 mA rated per output; 4 A inrush for the group
Max valves per Triac output ≤ 3 at 24 V AC; ≤ 4 at 230 V AC (check valve inrush)
Relay outputs 4; 16 A cos φ 1 / 8 A cos φ 0.6 at 230 V AC; 16 A / 16 AX (140 µF); min switching current 10 mA
Relay peak current 165 A / 20 ms; 800 A / 200 µs
Relay load limits Incandescent 10 A; motors 10 A; fluorescent 3 A (700 W); electronic ballast 6 A; check LED driver inrush
Inputs (digital mode) 8 dry-contact inputs (SELV); scanning voltage 3.3 V DC; max cable 30 m (98 ft) twisted
Inputs (analog mode) NTC TS01A01ACC (-20 to +100 °C) / TS01B01ACC (-50 to +60 °C) on inputs 1–4; max cable 30 m (98 ft)
Thermostat modules / logic blocks 4 / 7
Terminals Max 2.5 mm² (approx. 14 AWG) solid or stranded
Group addresses / associations 250 / 250
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure PC-ABS, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application HA88B01KNX valve/load actuator application
Weight (net) 0.25 kg (0.55 lb)
Manufacturer part no. / GTIN HA88B01KNX / 8054144521176

Related Products

Valve-only versions: HA04A01KNX (4 Triac + 4 inputs) and HA08A01KNX (8 Triac + 8 inputs). Relay-only room control: IO04F01KNX / IO08F01KNX. Proportional (0–10 V) fan coil control: TC57A01KNX, TC57B01KNX, TC28A01KNX. Accessories: TS01A01ACC / TS01B01ACC probes, LD00A01ACC / LD00A11ACC LEDs.
