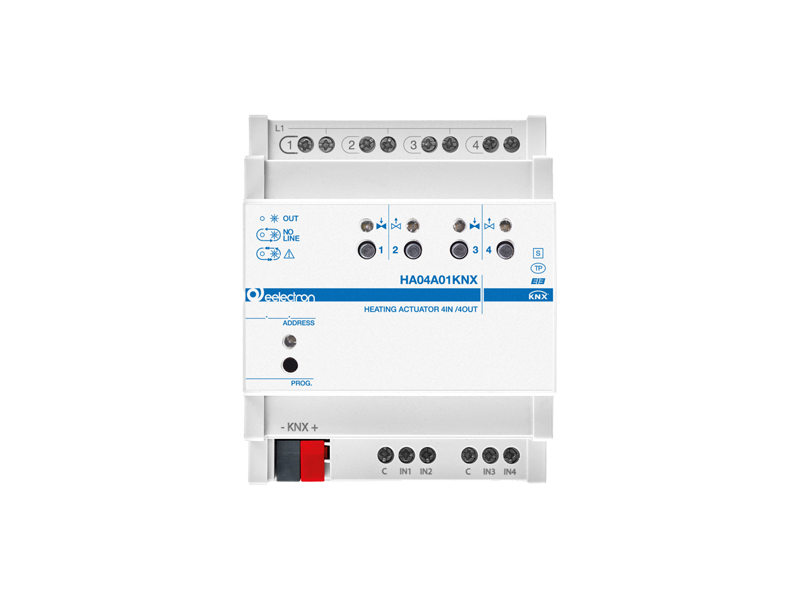

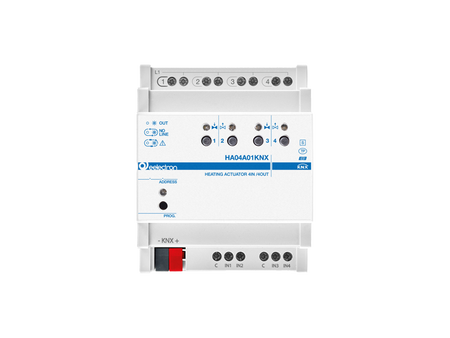

Eelectron HA04A01KNX KNX heating actuator 4-way, 4 binary inputs
Eelectron HA04A01KNX KNX heating actuator 4-way, 4 binary inputs

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron HA04A01KNX KNX heating actuator 4-way, 4 binary inputs

SKU: HA04A01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$207.90 USD
-27% $283.36 USD $207.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron HA04A01KNX is a 4-channel KNX heating actuator for thermoelectric (electrothermal) valve drives, with 4 Triac outputs that accept 24 V AC or 230 V AC actuators and 4 dry-contact inputs on the same 4-module DIN device. It is the standard way to run radiator valves, underfloor-heating manifolds and zone valves from the panel: each output drives up to 3 valves at 24 V or 4 at 230 V in ON/OFF or PWM mode, and outputs can be paired for 3-point valves.

The inputs make it a complete zone controller. Inputs 1–4 take pushbuttons, window contacts or NTC probes, and the device hosts up to 8 complete 2-stage PI thermostat modules (4 linked to the probe inputs plus 4 additional), so a hotel floor or a small office can be regulated without wall thermostats. Eight logic blocks with proportional-control and dew-point algorithms round out the application.

Key Features

  • 4 Triac outputs, 24–230 V AC 50/60 Hz, 500 mA rated per output; configurable as 4 ON/OFF or PWM valve channels or 2 three-point valve channels
  • Up to 3 thermoelectric valves per output at 24 V AC or 4 at 230 V AC (4 A inrush limit per group of 4 outputs; use activation delays to stagger inrush)
  • 4 dry-contact inputs for on/off, dimming, shutters, scenes, sequences and step commands
  • Inputs 1–4 configurable as signalling-LED outputs (LD00A01ACC / LD00A11ACC) or as analog NTC probe inputs (TS01A01ACC / TS01B01ACC)
  • Up to 8 thermostat modules in total, each 2-stage with integrated PI controller for heating, cooling, valves and 2/4-pipe fan coils
  • 8 logic blocks with logical, threshold, algebraic and conditional operators; proportional control and dew-point algorithms
  • Outputs grouped [1–4] and [5–8]: one supply voltage per group, first output of each group must be wired
  • Front buttons with logic interlock for manual output switching; channels pre-paired for 3-point valves before ETS download
  • 4-module PC-GF DIN housing; 250 group addresses / 250 associations

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 15 mA (8-output version); ≤ 10 mA (4-output version)
Triac outputs 4; 24 V AC to 230 V AC, 50/60 Hz; rated current 500 mA per output
Inrush current 4 A per group of 4 outputs
Max valves per output ≤ 3 at 24 V AC; ≤ 4 at 230 V AC (depends on valve manufacturer inrush)
Inputs (digital mode) 4 dry-contact inputs (SELV circuits); scanning voltage 3.3 V DC; max cable 30 m (98 ft) twisted
Inputs (analog mode) NTC probes TS01A01ACC (-20 to +100 °C), TS01B01ACC (-50 to +60 °C); max cable 30 m (98 ft) twisted
Thermostat modules / logic blocks 8 / 8
Terminals Max 2.5 mm² (approx. 14 AWG) solid or stranded
Group addresses / associations 250 / 250
Mounting DIN rail, 4 modules; LV distribution cabinet
Enclosure PC-GF, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application HAxxA01KNX heating actuator application
Weight (net) 0.26 kg (0.57 lb)
Manufacturer part no. / GTIN HA04A01KNX / 8054144521152

Related Products

Sibling: HA08A01KNX (8 Triac outputs, 8 inputs). Mixed valve + relay version: HA88B01KNX (4 Triac + 4 x 16 A relays, 8 inputs). Accessories: NTC probes TS01A01ACC / TS01B01ACC; LEDs LD00A01ACC / LD00A11ACC. Fan coil control with 0–10 V valves: TC57A01KNX / TC28A01KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
