Eelectron FOXXA02-3M Metal mounting frame for socket outlet Triple pack, 10 pieces
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$69.90 USD
Regular price
-8%
$76.16 USD
Sale price
$69.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

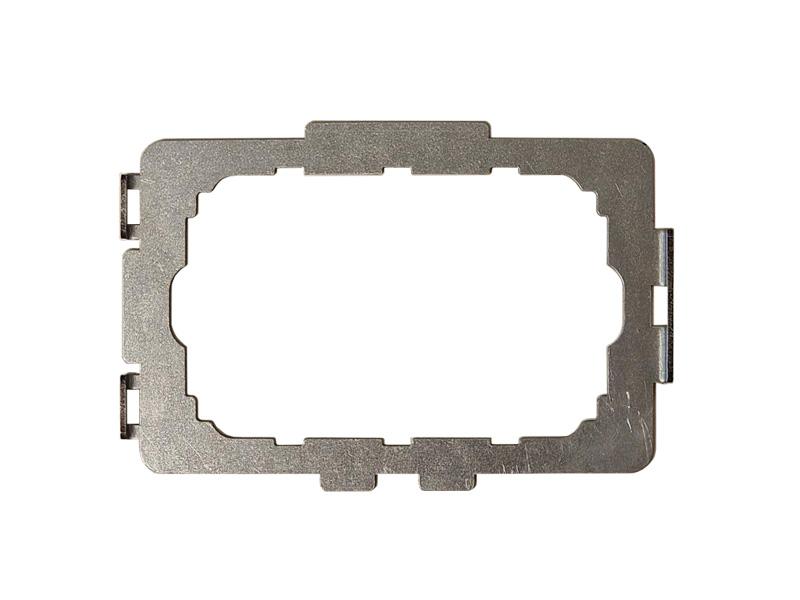

The Eelectron FOXXA02-3M is the metal mounting frame for 3-module socket plates (10-pack), part of the OL-U mounting system. OL-U devices and plates never screw directly to the wall box: a metal support is fixed to the box first, the device or wiring insert is screwed to that support, and the cover frame then hooks or snaps onto it. This part is that support for 3-module wiring devices behind the PO45A03xx socket cover frames.
It is the 10-piece contractor pack of the single-piece frame, intended for hotel floors, apartment blocks and office fit-outs where dozens of identical positions are roughed in at once. Each frame carries its own fixing screws.
Supplied as 10 pieces (contractor pack).
Key Features
- Type: metal mounting frame for 3-module socket plates (10-pack)
- For: 3-module wiring devices behind the PO45A03xx socket cover frames
- Fits box: 3-module box: Italian 503
- Used with cover frames: PO45A03xx socket cover frames
- Material: metal
- Pack: 10 pieces (contractor pack)
- Standard-agnostic OL-U approach: same device and plates on Italian, German, British and Swiss boxes by choosing the right frame
Technical Specifications
| Type | metal mounting frame for 3-module socket plates (10-pack) |
| Compatible hardware | 3-module wiring devices behind the PO45A03xx socket cover frames |
| Compatible boxes | 3-module box: Italian 503 |
| Compatible cover frames | PO45A03xx socket cover frames |
| Material | metal |
| Pack quantity | 10 pieces (contractor pack) |
| Weight (net, packed) | 0.04 kg (0.09 lb) |
| Manufacturer part no. / GTIN | FOXXA02-3M / 8054144525204 |
Related Products
Related frames and adapters: FOXXA01-3M (single), FOXXA02-2M. OL-U hardware: SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x. Surface-mount alternative: SFBOA17-x / SFBOA25-x boxes.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
