Eelectron FOXXA01-6060 Metal Mounting Frame For Double Frames 60+60 - 1Pc.
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$27.90 USD
Regular price
-8%
$30.24 USD
Sale price
$27.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

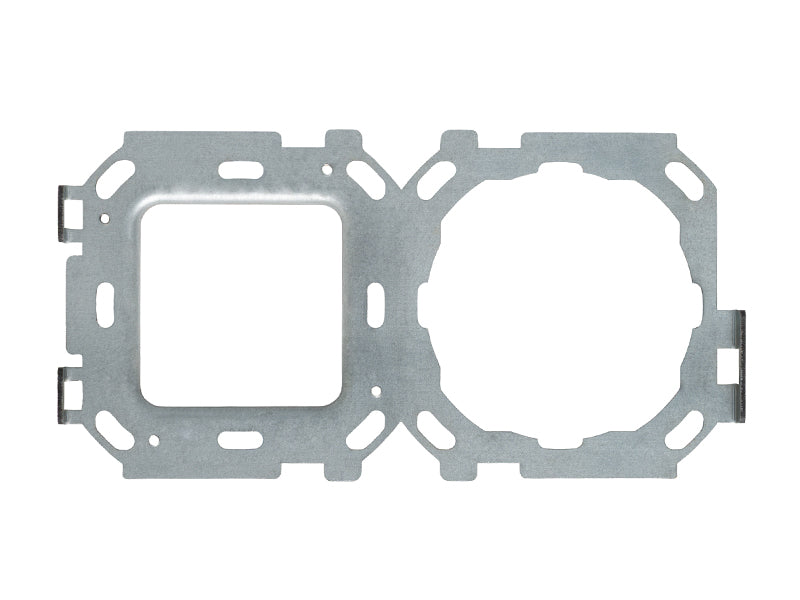

The Eelectron FOXXA01-6060 is the metal mounting frame for Swiss double 60+60 plates, part of the OL-U mounting system. OL-U devices and plates never screw directly to the wall box: a metal support is fixed to the box first, the device or wiring insert is screwed to that support, and the cover frame then hooks or snaps onto it. This part is that support for two Feller® inserts (or an OL-U device and a Feller® insert) on a Swiss double box, under a PO60A60xx cover frame.
Swiss (CH) boxes use their own fixing geometry, so the OL-U range has a dedicated set of 60-series frames. This frame positions the OL-U device and/or Feller® insert so the matching Swiss cover frame sits flush and square on the wall.
Supplied as 1 piece.
Key Features
- Type: metal mounting frame for Swiss double 60+60 plates
- For: two Feller® inserts (or an OL-U device and a Feller® insert) on a Swiss double box, under a PO60A60xx cover frame
- Fits box: Swiss (CH) standard double box
- Used with cover frames: PO60A60xx double cover frames
- Material: metal
- Pack: 1 piece
- Standard-agnostic OL-U approach: same device and plates on Italian, German, British and Swiss boxes by choosing the right frame
Technical Specifications
| Type | metal mounting frame for Swiss double 60+60 plates |
| Compatible hardware | two Feller® inserts (or an OL-U device and a Feller® insert) on a Swiss double box, under a PO60A60xx cover frame |
| Compatible boxes | Swiss (CH) standard double box |
| Compatible cover frames | PO60A60xx double cover frames |
| Material | metal |
| Pack quantity | 1 piece |
| Weight (net, packed) | 0.04 kg (0.09 lb) |
| Manufacturer part no. / GTIN | FOXXA01-6060 / 8054144525143 |
Related Products
Related frames and adapters: FOXXA01-7160 (71+60), FOXXA01-7171S (71+71 Swiss), FOXXB01-60 / FOXXC01-60 adapters. OL-U hardware: SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x. Surface-mount alternative: SFBOA17-x / SFBOA25-x boxes.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
