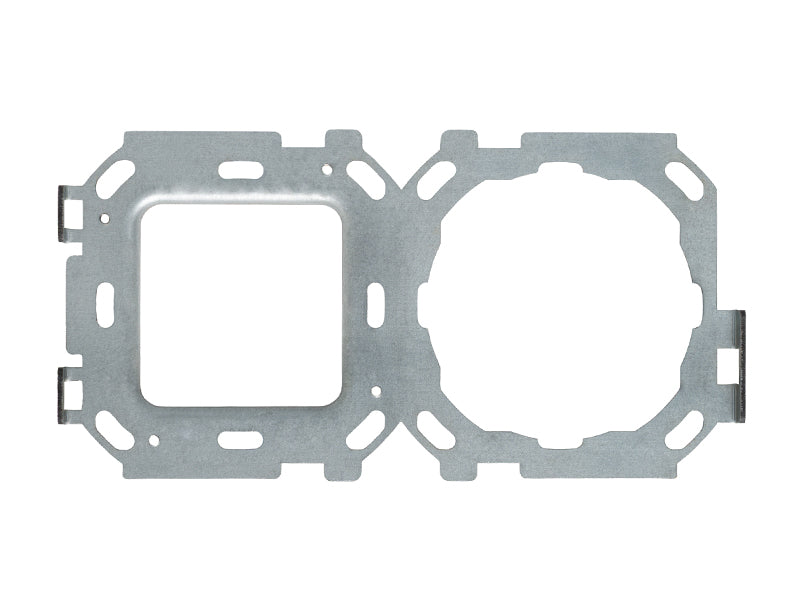

Eelectron FOXXA01-5555 Metal Mounting Frame For Double Frames 55+55 - 1Pc.
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$13.32 USD
Regular price
-9%
$14.56 USD
Sale price
$13.32 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron FOXXA01-5555 is the metal mounting frame for double 55+55 plates, part of the OL-U mounting system. OL-U devices and plates never screw directly to the wall box: a metal support is fixed to the box first, the device or wiring insert is screwed to that support, and the cover frame then hooks or snaps onto it. This part is that support for two 55 x 55 mm (German standard) wiring devices under a PO55A55xx double cover frame.
Multi-position plates need the two or three positions aligned exactly, which is what this one-piece frame guarantees: it spans the coupled boxes, carries the OL-U device and the wiring inserts on fixed centres, and gives the long plate hooks on both ends.
Supplied as 1 piece.
Key Features
- Type: metal mounting frame for double 55+55 plates
- For: two 55 x 55 mm (German standard) wiring devices under a PO55A55xx double cover frame
- Fits box: two 2-module boxes coupled at 71 mm centres (74 mm British)
- Used with cover frames: PO55A55xx double cover frames
- Material: metal
- Pack: 1 piece
- Standard-agnostic OL-U approach: same device and plates on Italian, German, British and Swiss boxes by choosing the right frame
Technical Specifications
| Type | metal mounting frame for double 55+55 plates |
| Compatible hardware | two 55 x 55 mm (German standard) wiring devices under a PO55A55xx double cover frame |
| Compatible boxes | two 2-module boxes coupled at 71 mm centres (74 mm British) |
| Compatible cover frames | PO55A55xx double cover frames |
| Material | metal |
| Pack quantity | 1 piece |
| Weight (net, packed) | 0.04 kg (0.09 lb) |
| Manufacturer part no. / GTIN | FOXXA01-5555 / 8054144525129 |
Related Products
Related frames and adapters: FOXXA01-71XX (71+55 / 71+45), FOXXT01-5555 (55+55+55 triple). OL-U hardware: SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x. Surface-mount alternative: SFBOA17-x / SFBOA25-x boxes.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
