Eelectron FO71A01-3M Metal Mounting Frame Triple, 1 piece
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$10.24 USD
Regular price
-9%
$11.20 USD
Sale price
$10.24 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

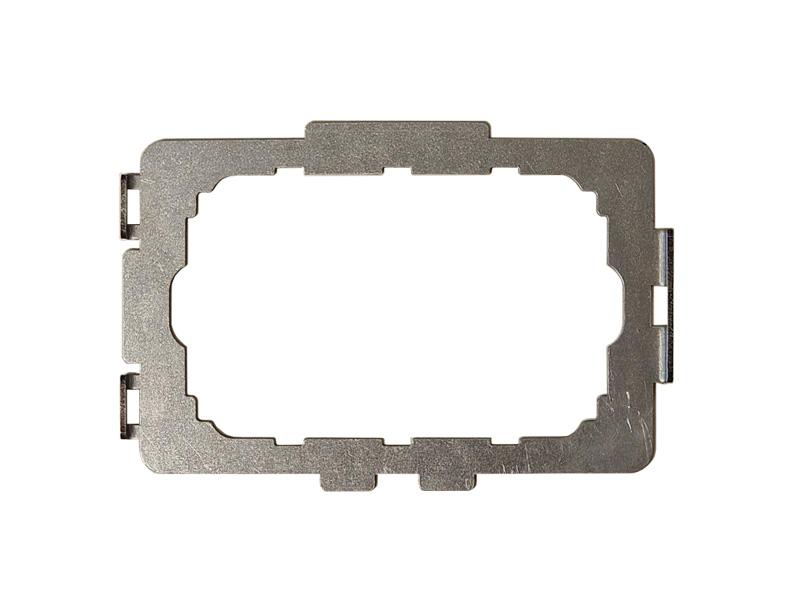

The Eelectron FO71A01-3M is the metal mounting frame 71, 3-module (1 piece), part of the OL-U mounting system. OL-U devices and plates never screw directly to the wall box: a metal support is fixed to the box first, the device or wiring insert is screwed to that support, and the cover frame then hooks or snaps onto it. This part is that support for OL-U devices SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x on a 3-module box.
The frame carries the OL-U device at the right depth and gives the cover frame its snap-on hooks; the device is fixed to it with the two screws supplied with the device. It is required for every flush-mounted OL-U device, so order one per position.
Supplied as 1 piece, with a pair of fixing screws.
Key Features
- Type: metal mounting frame 71, 3-module (1 piece)
- For: OL-U devices SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x on a 3-module box
- Fits box: 3-module box: Italian 503 and equivalent 3-module enclosures
- Used with cover frames: PO71A03xx 3-module cover frames
- Material: metal
- Pack: 1 piece, with a pair of fixing screws
- Standard-agnostic OL-U approach: same device and plates on Italian, German, British and Swiss boxes by choosing the right frame
Technical Specifications
| Type | metal mounting frame 71, 3-module (1 piece) |
| Compatible hardware | OL-U devices SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x on a 3-module box |
| Compatible boxes | 3-module box: Italian 503 and equivalent 3-module enclosures |
| Compatible cover frames | PO71A03xx 3-module cover frames |
| Material | metal |
| Pack quantity | 1 piece, with a pair of fixing screws |
| Weight (net, packed) | 0.04 kg (0.09 lb) |
| Manufacturer part no. / GTIN | FO71A01-3M / 8054144525068 |
Related Products
Related frames and adapters: FO71A02-3M (10-pack), FO71A01-2M (2-module). OL-U hardware: SO08A01KNX, SO04L02KNX-x, SO08L02KNX-x, TO04A01KNX, HO04A01KNX, MO04A01KNX-x. Surface-mount alternative: SFBOA17-x / SFBOA25-x boxes.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
