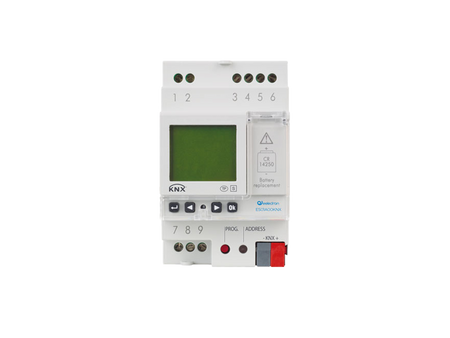

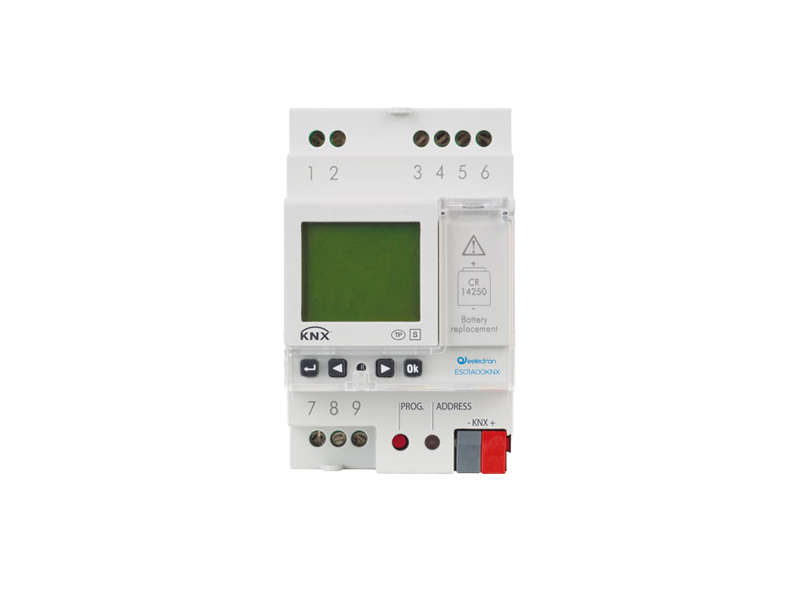

Eelectron ES01A00KNX KNX Astro Time Switch 9 channels
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$396.90 USD
Regular price
-8%
$433.44 USD
Sale price
$396.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron ES01A00KNX is a 9-channel KNX time switch with astronomical function for scheduling lighting, shading, HVAC set-backs and access control from the panel. Channel 1 is also available on a physical relay, the other eight act on the bus, and together they hold 450 programs with 900 switching events including sunrise/sunset times offset by up to ±120 minutes.
The clock keeps time with a replaceable CR14250 battery, handles daylight-saving changes automatically, can be synchronized from the ES01A00ACC GPS module, and is operated from the front in five languages with password protection. It suits facade lighting, retail opening hours and any installation that must run fixed schedules independently of a visualization server.
Programs are entered on the front panel or copied between devices, and each channel sends its state to the bus as a 1-bit object that any actuator or scene controller can use. Holiday periods and one-off date programs override the weekly schedule, and the astronomical function uses the site coordinates (entered manually or received from the GPS module) to calculate daily sunrise and sunset. Because the schedules are stored in the device, they continue to run if a visualization server or network is down.
Key Features
- 9 channels: channel 1 on relay and bus, channels 2–9 on the KNX bus
- 450 programs / 900 events; weekly, date and holiday schedules
- Astronomical function with ±120 min offset on sunrise/sunset
- Automatic daylight-saving switching; GPS time sync via ES01A00ACC
- Front-panel programming in 5 languages; password protection
- CR14250 backup battery for the clock
- DIN-rail mounting
Technical Specifications
| Channels | 9 (channel 1 relay + bus; channels 2–9 bus) |
| Programs / events | 450 / 900 |
| Astronomical offset | ±120 min |
| Time synchronization | ES01A00ACC GPS module (optional) |
| Backup battery | CR14250 |
| Languages | 5 |
| Mounting | DIN rail |
| Certifications | KNX certified; CE |
| ETS application | ES01A00KNX time switch application |
| Weight (net) | 0.2 kg (0.44 lb) |
| Manufacturer part no. / GTIN | ES01A00KNX / 8054144521145 |
Related Products
Accessory: ES01A00ACC GPS receiver for time synchronization. Outdoor conditions and astro data from a sensor instead: WS00A01KNX weather station. Bus power: PS00D03KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
