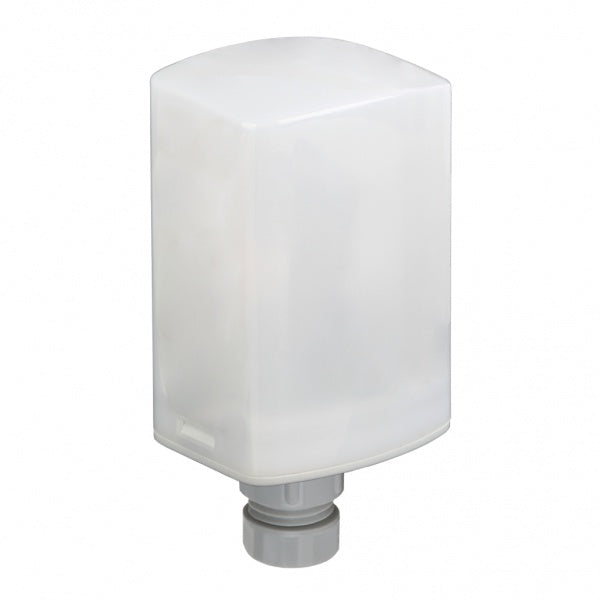

Eelectron ES01A00ACC GPS module for KNX timer switch for ES01A00KNX
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$204.90 USD
Regular price
-9%
$224.00 USD
Sale price
$204.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron ES01A00ACC is the GPS receiver for the ES01A00KNX time switch. Mounted outdoors on a wall or pole, it delivers satellite time and position to the clock over RS-485, so the astronomical sunrise/sunset calculations and the clock itself stay accurate without manual correction.
The IP54 module is powered with 12 V DC (±20 %, 30 mA), wired with 0.75–1.5 mm² cable and rated for 0 to +50 °C. Use it on sites where the time switch controls facade lighting or opening hours and must not drift.
Key Features
- GPS receiver for ES01A00KNX time synchronization and position
- RS-485 link to the time switch
- Supply 12 V DC ±20 %, approx. 30 mA
- IP54 housing for wall or pole mounting
- Cable 0.75–1.5 mm²
- Operating range 0 to +50 °C (32 to 122 °F)
Technical Specifications
| Power supply | 12 V DC ±20 %, approx. 30 mA |
| Interface | RS-485 to ES01A00KNX |
| Mounting | Wall or pole, outdoor |
| Enclosure | IP54 |
| Cable | 0.75–1.5 mm² (18–16 AWG) |
| Operating temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Certifications | CE |
| ETS application | None (connected to ES01A00KNX) |
| Weight (net) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | ES01A00ACC / 8054144521138 |
Related Products
Host device: ES01A00KNX 9-channel astronomical time switch. A 12 V DC supply is required.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
