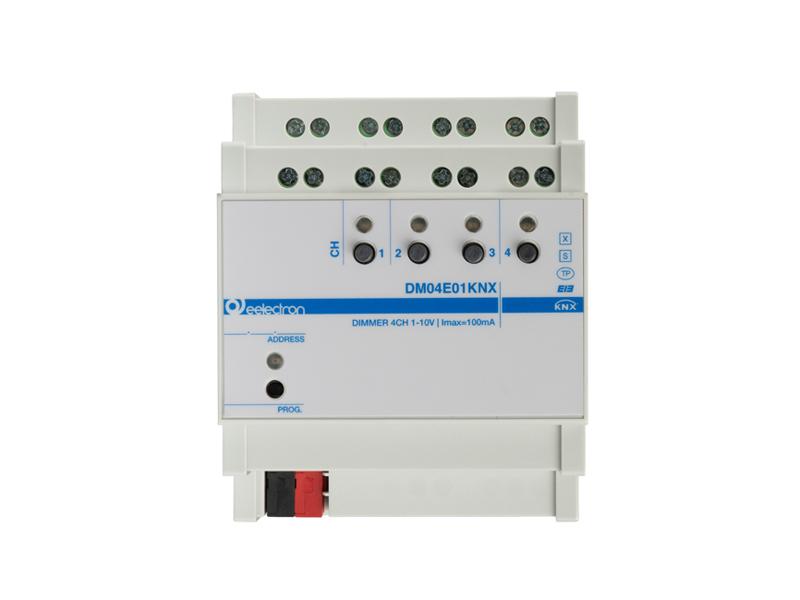

Eelectron DM04E01KNX KNX 1-10 V dimmer actuator 4-fold
Eelectron DM04E01KNX KNX 1-10 V dimmer actuator 4-fold

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron DM04E01KNX KNX 1-10 V dimmer actuator 4-fold

SKU: DM04E01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$270.90 USD
-27% $369.60 USD $270.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron DM04E01KNX is a 4-channel KNX 1–10 V dimming actuator with four 16 A relays, for electronic ballasts, 1–10 V LED drivers and other analog-controlled loads. Each channel pairs one 1–10 V control output with its own relay, so the driver is both dimmed and switched off completely at zero, and the relays are rated 16 A AC1 / 16 AX for capacitive driver loads.

Channels can be configured as single white, tunable white, RGB or RGBW groups, communication is protected with KNX Data Secure and 16 logic blocks are available for local automation. The device is bus-powered with no auxiliary supply, and the 1–10 V lines may run up to 500 m on 0.5 mm² cable. It is used in offices, classrooms and retail where 1–10 V fixtures are already installed or where DALI is not required.

Key Features

  • 4 x 1–10 V control outputs, max 100 mA each; control cable up to 500 m (1,640 ft) at 0.5 mm²
  • 4 relay outputs 16 A AC1 at 230 V AC (10 A AC3), 16 AX; DC 12–24 V up to 16 A
  • Inrush up to 600 A / 150 µs; resistive 3680 W; capacitive 16 A / 200 µF per channel
  • Channel configurations: single, tunable white, RGB, RGBW
  • KNX Data Secure; 16 logic blocks
  • No auxiliary supply: bus-powered, ≤ 6 mA
  • 760 group addresses / 760 associations
  • 4-module PC-ABS DIN housing

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV); no auxiliary supply required
Current consumption (bus) ≤ 6 mA; power loss max 4 W
1–10 V outputs 4; max 100 mA per output; max cable 500 m (1,640 ft), 0.5 mm²
Relay outputs 4; 16 A AC1 / 10 A AC3 at 230 V AC, 16 AX; 12–24 V DC 16 A
Inrush / loads 600 A / 150 µs; resistive 3680 W; capacitive 16 A, 200 µF; lamp loads per datasheet table
Security KNX Data Secure
Logic blocks 16
Group addresses / associations 760 / 760
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure PC-ABS, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application DM04E01KNX 1–10 V dimming actuator application with Data Secure
Weight (net) 0.32 kg (0.71 lb)
Manufacturer part no. / GTIN DM04E01KNX / 8054144524986

Related Products

Phase-cut dimmers: DM02A02KNX, DM04A02KNX, DM01D01KNX. DALI gateways for digital drivers: IC01D01DAL, IC02D01DAL, IC01D03DAL. Constant-voltage LED strips: DL04A02KNX. Bus power: PS00D03KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
