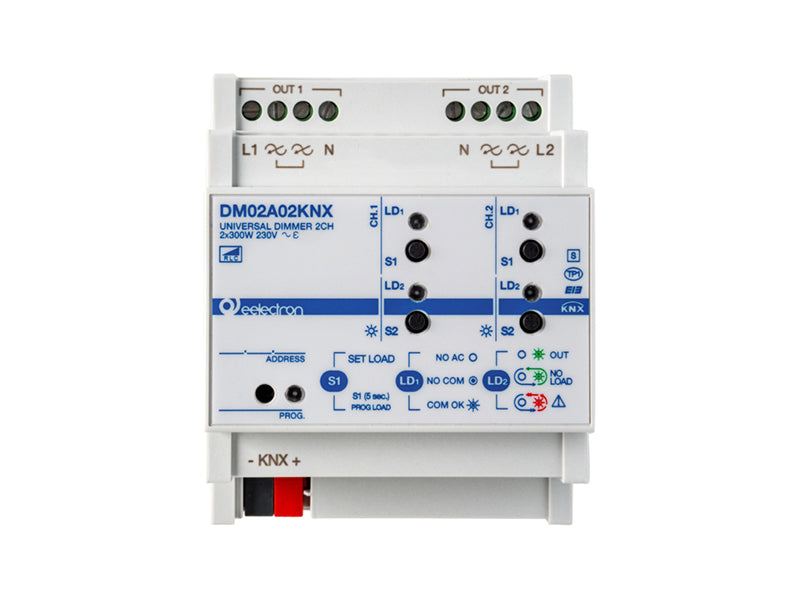

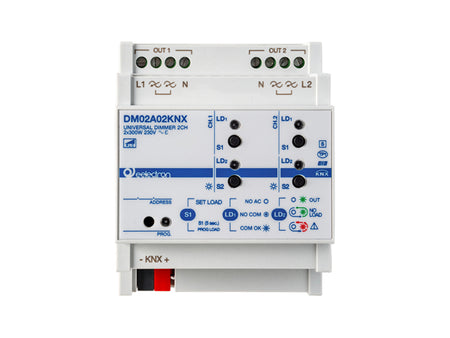

Eelectron DM02A02KNX KNX dimmer actuator 2-way, 300 W
Eelectron DM02A02KNX KNX dimmer actuator 2-way, 300 W

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron DM02A02KNX KNX dimmer actuator 2-way, 300 W

SKU: DM02A02KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$317.90 USD
-27% $433.44 USD $317.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron DM02A02KNX is a 2-channel universal KNX dimmer for 230 V loads with automatic load detection: each channel senses whether it is driving incandescent, halogen, transformer-fed or dimmable LED/CFL lamps and applies leading-edge or trailing-edge control accordingly. The two channels can be linked to double the available power, so the device covers lighting from small LED spots to a 600 W halogen group.

It is intended for residential and hospitality panels where mixed lamp technologies must be dimmed reliably; the free DimmerLoadTester software helps verify LED compatibility before installation. The ETS application supports scenes, dimming curves, soft on/off, minimum and maximum levels, timers and status feedback, and the module must be mounted vertically for cooling.

Key Features

  • 2 universal dimming channels with automatic load detection (L leading edge / RC trailing edge)
  • Per channel: incandescent/halogen 300 W (RC); ferromagnetic transformers 200 VA (L); electronic transformers 60 VA (RC); dimmable LED 60 W (L) or 120 W (RC); LED drivers 60 W; CFL 60 W
  • Linked channels: incandescent 600 W, ferromagnetic 400 VA, electronic transformer 100 VA, LED 100 W (L) / 200 W (RC), LED drivers 100 W, CFL 100 W
  • Scenes, dimming ramps, soft start/stop, level limits, timers and status objects in ETS
  • Overload, short-circuit and thermal protection with fault feedback
  • DimmerLoadTester software for checking LED lamp compatibility
  • Bus-powered (≤ 10 mA); 4-module PC-ABS DIN housing, vertical mounting
  • 250 group addresses / 250 associations

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV); load circuit 230 V AC 50/60 Hz
Current consumption (bus) ≤ 10 mA
Dimming channels 2 universal, automatic load detection; channels can be linked
Load limits per channel Incandescent 300 W RC; ferromagnetic transformer 200 VA L; electronic transformer 60 VA RC; LED 60 W L / 120 W RC; LED driver 60 W; CFL 60 W
Load limits linked channels Incandescent 600 W RC; ferromagnetic 400 VA L; electronic transformer 100 VA RC; LED 100 W L / 200 W RC; LED driver 100 W; CFL 100 W
Standby / dissipation 2 W with load off; max 3.4 W dissipated
Group addresses / associations 250 / 250
Mounting DIN rail, 4 modules, vertical position; LV distribution switchboard
Enclosure PC-ABS, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application DM02A02KNX universal dimmer application
Weight (net) 0.18 kg (0.40 lb)
Manufacturer part no. / GTIN DM02A02KNX / 8054144521107

Related Products

Sibling: DM04A02KNX (4 channels, 8 modules). High-power single channel: DM01D01KNX + DM01D01ACC (700 W each). 1–10 V / relay: DM04E01KNX. Constant-voltage LED strips: DL04A02KNX. DALI: IC01D01DAL, IC02D01DAL, IC04B01DAL.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
