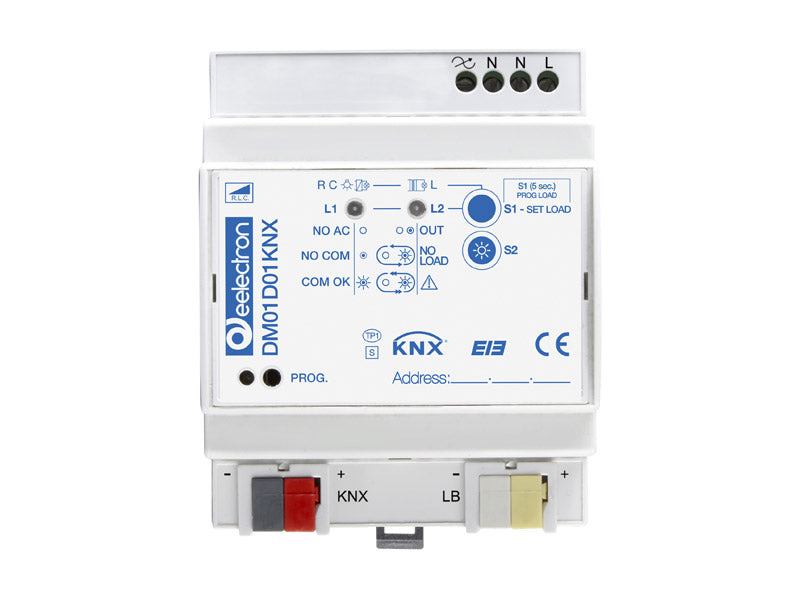

The Eelectron DM01D01KNX is a 1-channel universal KNX dimmer rated 700 W, built for the large incandescent, halogen, transformer-fed and 230 V LED loads that ordinary 2- or 4-channel dimmers cannot carry. It recognizes the load automatically and selects leading-edge (L) or trailing-edge (RC) phase control, and it detects 50 or 60 Hz mains on its own.

Up to two DM01D01ACC slave modules connect to the master over a 2-wire local bus (max 2 m between modules), each adding another 700 W channel on the same KNX address; channels may sit on different phases. The ETS application covers scenes, dimming curves, soft start/stop, minimum/maximum levels, timers and status feedback. Thermal derating is managed internally and the datasheet gives the load curve above 35 °C.

Key Features

  • 1 universal dimming channel, 700 W / 700 VA, automatic load recognition (RC trailing edge or L leading edge)
  • Loads: incandescent and halogen 20–700 W (RC); ferromagnetic transformers 20–700 VA (L); electronic transformers 20–700 VA (RC); dimmable 230 V LED up to 200 W (L); CFL up to 160 W (L)
  • Expandable with up to 2 DM01D01ACC slave modules via 2-wire local bus (max 2 m between modules), each 700 W
  • Master and slave channels can be fed from different phases
  • Automatic 50/60 Hz detection; 1 W standby, about 1.2 % dissipation at full load
  • Scenes, dimming ramps, soft start/stop, limits and timers in ETS
  • Bus-powered master (≤ 10 mA); slaves need no KNX connection
  • 4-module DIN housing in PPO-HFFR; 53 group addresses / 60 associations

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV); load circuit 230 V AC 50/60 Hz
Current consumption (bus) ≤ 10 mA
Dimming channel 1 universal, 700 W / 700 VA, leading (L) or trailing (RC) edge, auto-detect
Load limits Incandescent/halogen 20–700 W RC; ferromagnetic transformer 20–700 VA L; electronic transformer 20–700 VA RC; LED 230 V max 200 W L; CFL max 160 W L
Expansion Up to 2 x DM01D01ACC slaves, local 2-wire bus, max 2 m (6.6 ft) between modules
Standby / dissipation 1 W with load off; approx. 1.2 % of load
Terminals Max 2.5 mm² (14 AWG)
Group addresses / associations 53 / 60
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure PPO-HFFR, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F); derating above 35 °C per datasheet
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application DM01D01KNX universal dimmer application
Weight (net) 0.22 kg (0.49 lb)
Manufacturer part no. / GTIN DM01D01KNX / 8054144521091

Related Products

Slave expansion: DM01D01ACC (adds one 700 W channel, up to 2 per master). Multi-channel dimmers for smaller loads: DM02A02KNX (2 x 300 W) and DM04A02KNX (4 x 300 W). 1–10 V ballast and LED driver control: DM04E01KNX. Constant-voltage LED strips: DL04A02KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
