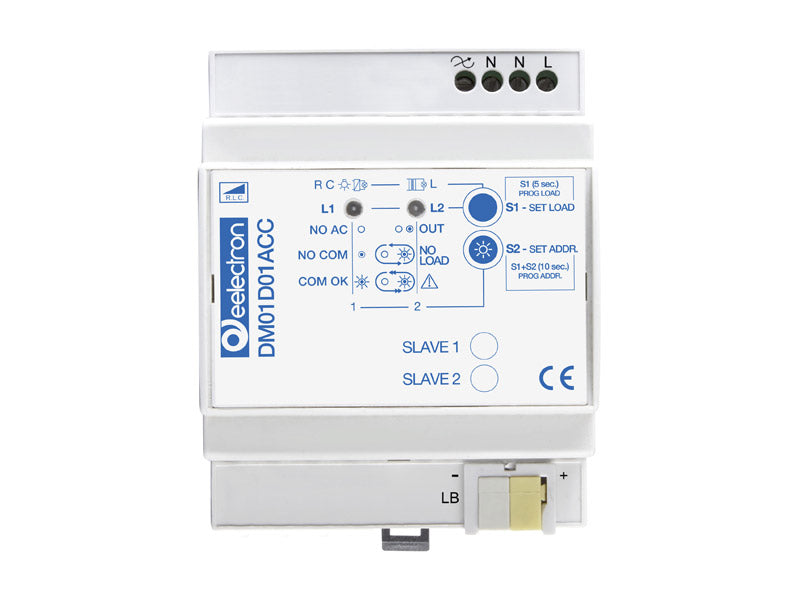

Eelectron DM01D01ACC Dimmer Actuator Expansion Module Single, 700 W
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$285.90 USD
Regular price
-9%
$312.48 USD
Sale price
$285.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron DM01D01ACC is the 700 W slave module for the DM01D01KNX universal dimmer. It has no KNX bus connection of its own: it links to the master over a 2-wire local bus and adds one further universal dimming channel, so one master plus two slaves give three 700 W channels under a single ETS device. Each slave can be fed from a different phase, which is useful when large halogen or LED loads in a hotel ballroom, restaurant or villa are split across the supply.
The slave uses the same automatic load recognition (leading or trailing edge) as the master, and its address on the local bus is set with the selector on the module. The maximum distance between modules is 2 m, so master and slaves normally sit side by side on the same DIN rail.
Key Features
- Adds 1 universal dimming channel, 700 W / 700 VA, to a DM01D01KNX master
- Loads: incandescent/halogen 20–700 W (RC); ferromagnetic transformers 20–700 VA (L); electronic transformers 20–700 VA (RC); LED 230 V max 200 W (L); CFL max 160 W (L)
- Automatic load recognition and 50/60 Hz detection
- Up to 2 slaves per master; slave address selector on the module
- 2-wire local bus to the master, max 2 m (6.6 ft) between modules
- No KNX bus connection required; different phase from the master allowed
- 4-module DIN housing in PPO-HFFR, same footprint as the master
Technical Specifications
| Power supply | Load circuit 230 V AC 50/60 Hz; control via 2-wire local bus from DM01D01KNX (no KNX bus) |
| Dimming channel | 1 universal, 700 W / 700 VA, leading (L) or trailing (RC) edge, auto-detect |
| Load limits | Incandescent/halogen 20–700 W RC; ferromagnetic transformer 20–700 VA L; electronic transformer 20–700 VA RC; LED 230 V max 200 W L; CFL max 160 W L |
| Local bus | 2-wire, max 2 m (6.6 ft) between modules; max 2 slaves per master |
| Standby / dissipation | 1 W with load off; approx. 1.2 % of load |
| Terminals | Max 2.5 mm² (14 AWG) |
| Mounting | DIN rail, 4 modules; LV distribution switchboard |
| Enclosure | PPO-HFFR, IP20 (EN 60529) |
| Operating temperature | -5 °C to +45 °C (23 °F to 113 °F); derating above 35 °C per datasheet |
| Storage temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Standards | EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | CE |
| ETS application | None (configured through the DM01D01KNX master application) |
| Weight (net) | 0.2 kg (0.44 lb) |
| Manufacturer part no. / GTIN | DM01D01ACC / 8054144521084 |
Related Products
Requires the DM01D01KNX master (one ETS device for master and up to two slaves). Other Eelectron dimmers: DM02A02KNX, DM04A02KNX, DM04E01KNX, DL04A02KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
