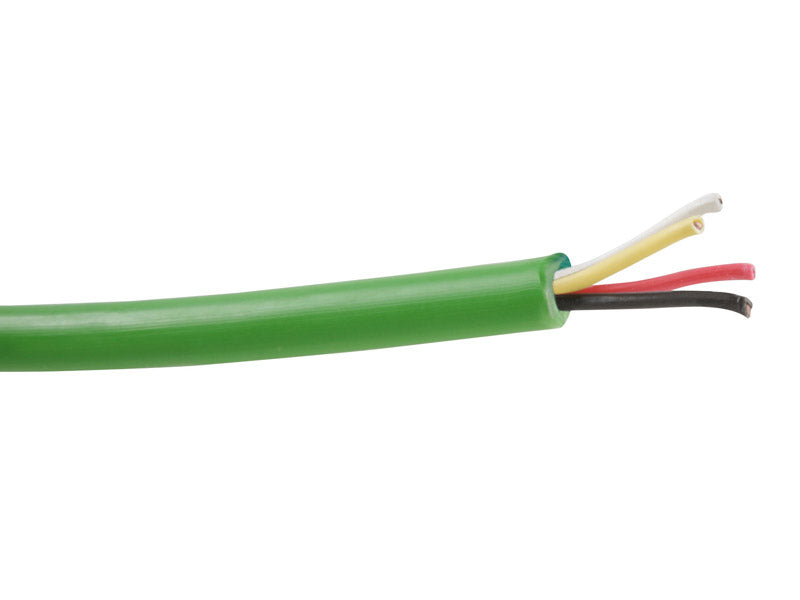

The Eelectron CV00A02KNX is a 100 m (328 ft) coil of 2×2×0.8 mm KNX bus cable — the classic four-core green KNX cable with one red/black pair for the bus and a spare yellow/white pair for auxiliary use (for example 30 V DC auxiliary power or a second line). It is the netbus-series fieldbus cable for fixed indoor installation in conduit and under plaster, built to EN 50090.

Solid 0.8 mm (20 AWG) copper, PE insulation, AL/PET foil shield with drain wire and a 6.0 mm LSZH sheath in KNX green (RAL 6018) give max. 100 pF/m capacitance. CPR Eca class, flame retardant, and permitted alongside 450/750 V and 0.6/1 kV power cables (Uo ≤ 400 V). Single-pair version: CV00A01KNX.

Key Features

  • 2 × 2 × 0.8 mm (20 AWG) solid copper, 4 cores: red/black (bus) + yellow/white (auxiliary)
  • 100 m (328 ft) coil; approx. 5.9 kg per 100 m
  • LSZH outer sheath, 6.0 mm, KNX green RAL 6018; PE core insulation
  • AL/PET tape shield with CuSn 26 AWG continuity (drain) conductor
  • Capacitance max. 100 pF/m; impedance 70 Ω at 1 MHz; max. operating voltage 125 V
  • CPR class Eca (EU 305/2011); flame retardant per EN 60332-1; EN 50090 / EN 50090-2-2 reference
  • Operating temperature −30…+80 °C; min. bending radius 10 × outer diameter

Technical Specifications

Construction 2 × 2 × 0.8 mm, 4 insulated cores in quad: red + black (pair 1), yellow + white (pair 2)
Conductor Solid copper 1 × 0.80 mm (20 AWG)
Insulation / sheath PE cores; LSZH outer sheath 6.0 mm (0.24 in), green RAL 6018
Shield AL/PET tape + CuSn 26 AWG continuity conductor
Electrical (20 °C) Rc 37.5 Ω/km; capacitance max. 100 pF/m; impedance 70 Ω @ 1 MHz; insulation resistance ≥ 5 GΩ·km
Voltage Max. operating 125 V; test 1.5 kV AC core/core, 2.0 kV AC/5 min on sheath (in water)
Fire performance CPR Eca (EU 305/2011); flame retardant EN 60332-1-2; heat of combustion 983 MJ/km
Operating temperature −30…+80 °C (−22…+176 °F)
Min. bending radius 10 × outer diameter
Standards EN 50090, EN 50090-2-2, EN 50575:2014+A1:2016, EN 60332-1-2, EN 13501-6, CEI UNEL 36762 / 35016, CEI 64-8
Length / packaging 100 m (328 ft) coil
Weight 5 kg (11.02 lb) (datasheet: approx. 59 kg/km)
Manufacturer part no. / GTIN CV00A02KNX / 8054144521060

Related Products

Single-pair 1×2×0.8 version: CV00A01KNX (100 m). 500 m reels: CV05A01KNX, CV05A02KNX. KNX bus connectors WG00A01ACC (red/black, 100 pcs).

CE / CPR (Eca) compliant cable; not UL listed — verify NEC Class 2 wiring and local code requirements before specifying in US installations.
