Eelectron CS10A01KNX-1-3M capacitive KNX touch sensor 3-module – white

SKU: CS10A01KNX-1-3M
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$176.90 USD
-8% $192.64 USD $176.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

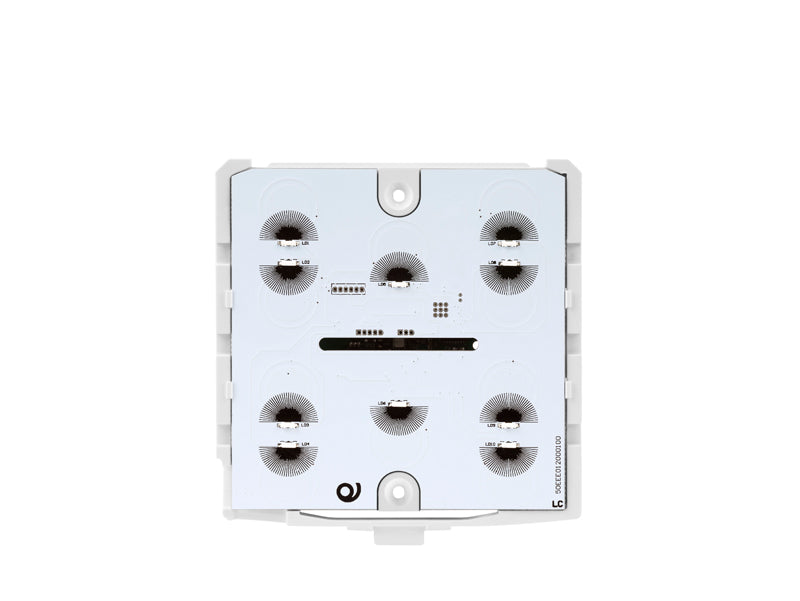

The Eelectron CS10A01KNX-1-3M is the 3-module KNX capacitive push-button hardware of the 9025 series in white. It is the electronics behind the 9025 glass keypads: the device provides up to 10 capacitive channels, white key LEDs, a front RGB LED bar and a two-stage room thermostat, and the glass cover ordered with it (4, 8 or 10 channels, LINE, RGB or CUSTOM ranges) decides how many touch zones the user sees and what the keypad looks like.

Each channel is configured in ETS for on/off, dimming, shutters and blinds, scene recall and learning, object sequences or other command functions. The thermostat has an integrated PI controller for heating and cooling with valves and 2- or 4-pipe fan coils, using the on-board temperature sensor or an external NTC probe on the rear 2-pole input, which can alternatively be a dry-contact digital input for a door contact, pushbutton or window sensor.

Capacitive proximity wakes the keypad: in Economy mode the LEDs are off, and a hand approaching the glass lights them before the touch. Pressing two defined keys for 10 s enters KNX programming mode from the front, so commissioning does not require pulling the device off the wall. It mounts on a 3-module (Italian 503) box — Italian, German or British standard — with the KNX bus coupler built in. Typical uses: hotel guest rooms, offices, meeting rooms, residential lighting and climate control.

Key Features

  • Up to 10 capacitive channels; actual key count set by the glass cover (4 / 8 / 10)
  • 10 freely configurable white key LEDs plus front RGB LED bar for bus feedback
  • Two-stage room thermostat with PI controller: heating, cooling, valves, 2- and 4-pipe fan coils
  • On-board temperature sensor plus rear 2-pole input: digital (dry contact, ≤10 m) or analog NTC probe (TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC; ≤30 m)
  • Capacitive proximity wake-up from Economy mode
  • Front-side programming: press two keys for 10 s to enter KNX programming mode
  • Glass covers: STANDARD, RGB (2-module only), LINE, LINE matte RGB and CUSTOM with interchangeable backlit icons
  • 3-module format: 126 x 96 x 35 mm
  • Bus powered, max 20 mA @ 29 V; 12 mA in Economy mode
  • 250 group addresses / 250 associations; KNX certified; bus coupler included

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption max 20 mA @ 29 V; max 24 mA @ 21 V; Economy mode max 12 mA @ 29 V
Channels up to 10 capacitive channels (per glass cover)
Indicators 10 white key LEDs + RGB LED bar
Rear input – digital dry contact, scanning 3.3 V DC, cable ≤10 m (33 ft) twisted
Rear input – analog NTC probe TS01A01ACC (-20…+100 °C), TS01B01ACC (-50…+60 °C), TS01C01ACC (-40…+105 °C), TS01D01ACC (-5…+45 °C); cable ≤30 m (98 ft)
Thermostat 2-stage with PI controller; heating/cooling, valves, 2- and 4-pipe fan coils
Group addresses / associations 250 / 250
Mounting 3-module flush box, Italian / German / British standards
Enclosure PC-ABS, IP20 (EN 60529)
Dimensions (W x H x D) 126 x 96 x 35 mm (4.96 x 3.78 x 1.38 in)
Operating temperature -5 to +45 °C (23 to 113 °F); storage -20 to +55 °C; RH max 90% non-condensing
Weight approx. 130 g without glass, 240 g with glass; packed 0.14 kg (0.31 lb)
Standards EN 63044-3, EN 63044-5-1, EN 63044-5-2, EN 50491-2; LVD 2014/35/EU, EMC 2014/30/EU
Certification KNX certified
ETS application Eelectron ETS application (download from eelectron.com)
Manufacturer part no. / GTIN CS10A01KNX-1-3M / 8054144521022

Related Products

Glass covers for this device (white): 9025GL304L01, 9025GL308L01, 9025GL310L01 (LINE), 9025GL304LM1, 9025GL308LM1, 9025GL310LM1 (LINE matte RGB), 9025GL310W01 (CUSTOM). Other colour: CS10A01KNX-3-3M. 2-module version: CS10A01KNX-1. Icon sets 9025ISA-1 … 9025ISF-1. NTC probes TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
