Eelectron BK24FX-0724 Keypad Set 2x left, 4x right – Fenix Grey 0724
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$74.90 USD
Regular price
-8%
$81.76 USD
Sale price
$74.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

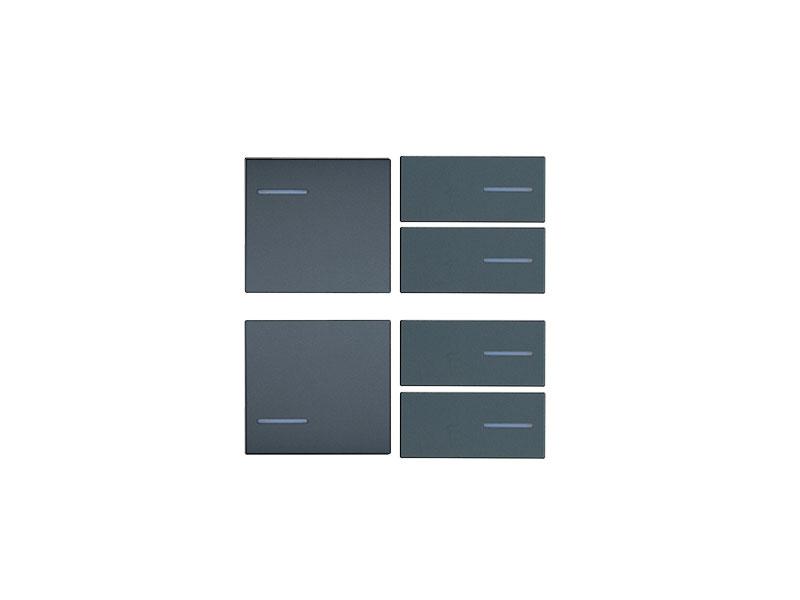

The Eelectron BK24FX-0724 is the 2 left + 4 right kit in FENIX Grigio Londra 0724 for the OL-U KNX switch SO08A01KNX (8 buttons, 16 channels, RGB swipe bar, thermostat). SO08A01KNX ships as bare hardware; the key set, a PO71 cover frame and an FO71A01 metal frame are ordered separately to suit the interior. This layout gives two full-height rows on the left side and four half-buttons on the right, each key backed by its own RGB LED and freely programmable in ETS.
The finish is FENIX NTM® Grigio Londra 0724 (a mid-tone matte London grey): the FENIX NTM® nanotech laminate of the OL-U FENIX Edition — very low light reflectivity, soft-touch matte, anti-fingerprint — specified for hospitality and high-end residential work. Pair it with the PO71 FENIX frame in the same colour code.
Key Features
- Layout: 2 left half-buttons and 4 right half-buttons
- Finish: FENIX NTM® Grigio Londra 0724 (a mid-tone matte London grey)
- Snap-on fit over the device, under the cover frame; individual keys lift out with a flat screwdriver
- Each key position backed by a device LED (RGB on SO08A01KNX) and freely assignable in ETS
- Interchangeable with the other OL-U key sets — re-dress installed hardware without rewiring
- Works with PO71A01 (2-module), PO71A03 (3-module) and the 71+45 / 71+55 / 71+71 / 71+60 double frames
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | Key set (button kit) for OL-U KNX wall devices |
| Keys / layout | 6 keys: 2 left + 4 right |
| Finish / colour | FENIX NTM® Grigio Londra 0724 (a mid-tone matte London grey) |
| Material | FENIX NTM® matte laminate |
| Compatible hardware | SO08A01KNX |
| Compatible cover frames | PO71A01xx, PO71A03xx, PO71A71 / A55 / A45 / A60 doubles |
| Device footprint | 71 x 71 mm (2.80 x 2.80 in) OL-U front |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | BK24FX-0724 / 8054144524061 |
Related Products
Fits SO08A01KNX. Other layouts in this colour: BK04FX-0724, BK08FX-0724, BK42FX-0724. Other FENIX colours: BK24FX-0030, BK24FX-0032, BK24FX-0720, BK24FX-0748, BK24FX-0754. Matching frames: PO71A01FX-0724, PO71A03FX-0724, PO71A71FX-0724. Mounting frames FO71A01-2M / -3M.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
