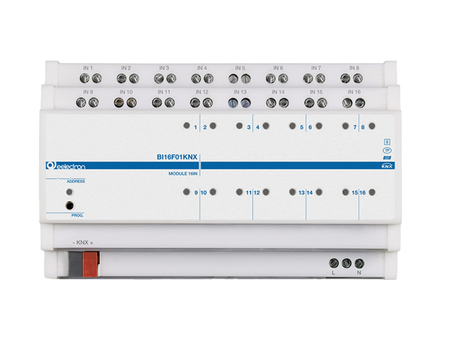

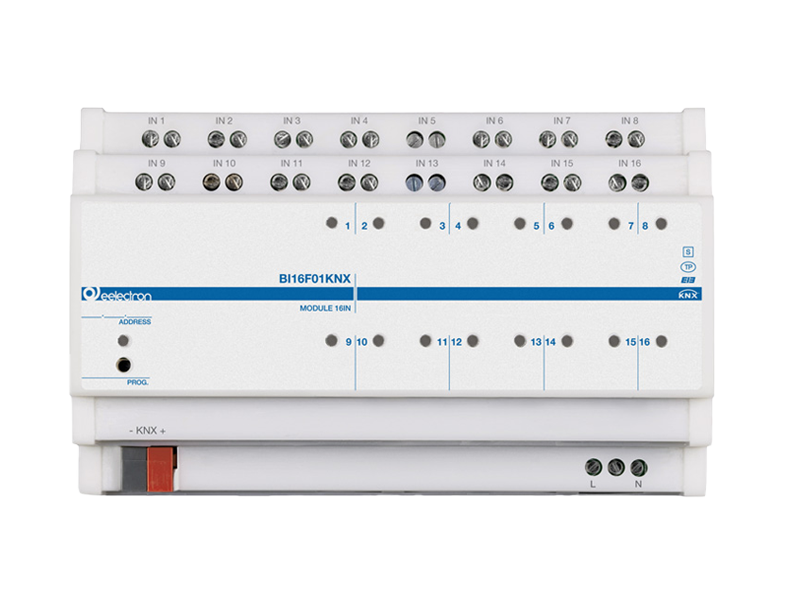

The Eelectron BI16F01KNX is a 16-channel DIN-rail binary input for KNX, designed for panels that collect a large number of dry contacts: pushbuttons, switches, magnetic door contacts, motion detectors and pulse-emitting meters. Each line can be supervised with a 1.8 kΩ end-of-line resistor so a cut or shorted cable is reported, and the front LED of the affected input flashes; cable runs up to 100 m (328 ft) are supported.

The device is powered from the bus for communication but takes 230 V AC mains for the input scanning stage (under 1 W), and all front LEDs flash if the mains feed is missing. Inside, 16 logic blocks and a per-input pulse counter cover interlocks and metering, and the Virtual Holder logic turns a door contact plus presence detectors into reliable room-occupancy information for hotel guest rooms. It is a practical choice for hospitality, offices and multi-dwelling retrofits where many conventional switches must be integrated.

Key Features

  • 16 dry-contact inputs with on/off, dimming, shutter, scene and sequence functions; short and long press handling
  • Line supervision with 1.8 kΩ (1/8 W) EOL resistor; cable length up to 100 m (328 ft)
  • Input fault shown by flashing LED on that channel; all LEDs flash when the 230 V line voltage is absent
  • Pulse counter available on every input
  • 16 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional-control and dew-point algorithms
  • Virtual Holder logic for hotel-room presence detection from a door contact and one or more sensors
  • Reading voltage 12 V DC SELV on the input channels
  • 8-module PC-GF DIN housing; 250 group addresses / 250 associations

Technical Specifications

Power supply 230 V AC 50/60 Hz, < 1 W; plus KNX bus 21–32 V DC
Current consumption (bus) ≤ 5 mA
Inputs 16 dry-contact inputs; reading voltage 12 V DC SELV
Max cable length 100 m (328 ft)
EOL supervision 1.8 kΩ, 1/8 W end-of-line resistor
Logic blocks 16
Control elements KNX programming button and red LED; one status LED per input
Group addresses / associations 250 / 250
Mounting DIN rail, 8 modules; LV distribution switchboard
Enclosure PC-GF, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application BI16F01KNX binary input application
Weight (net) 0.37 kg (0.82 lb)
Manufacturer part no. / GTIN BI16F01KNX / 8054144520858

Related Products

Smaller bus-powered versions: BI04F01KNX (4 inputs) and BI08F01KNX (8 inputs, with NTC and smart-sensor modes); mains-voltage inputs: BI08H01KNX. In-wall interfaces for the room side: IO22D02KNX / IO44D02KNX / IO62D02KNX. The 230 V input stage must be wired by a licensed electrician.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
