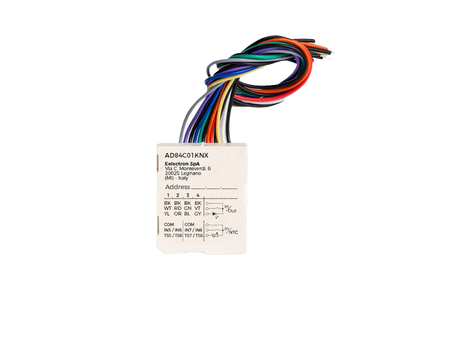

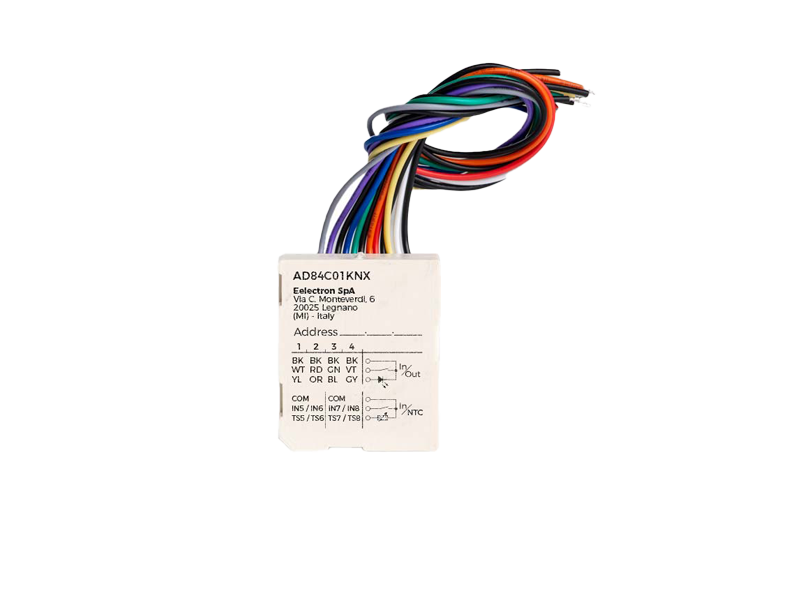

Eelectron AD84C01KNX Analog-Digital Module 8-way, 4 LED outputs
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$98.90 USD
Regular price
-26%
$134.40 USD
Sale price
$98.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron AD84C01KNX is an in-wall KNX multifunction module with 4 digital inputs, 4 digital/analog inputs and 4 LED outputs in a 43 x 36 x 24 mm housing that disappears behind a switch plate. It connects conventional pushbuttons, window contacts and NTC probes to the bus and drives low-current indicator LEDs, which makes it the standard way to KNX-enable a hotel bathroom, a corridor or a retrofit room with existing switches.
The four analog-capable inputs take TS01A01ACC or TS01B01ACC probes on runs up to 20 m, and up to 4 complete thermostat modules run inside the device for towel rails, radiators or fan coils; 5 logic blocks are available for local automation. Connections are 18 cm AWG24 flying leads, and the module draws no more than 10 mA from the bus.
Key Features
- 4 digital inputs + 4 digital/analog inputs for pushbuttons, contacts and NTC probes
- 4 LED outputs (0.3 mA) for LD00A01ACC / LD00A11ACC indicator LEDs
- NTC probes TS01A01ACC / TS01B01ACC on analog inputs, cable up to 20 m (66 ft)
- Up to 4 thermostat modules with PI control
- 5 logic blocks
- Bus-powered, ≤ 10 mA; 18 cm AWG24 leads
- 43 x 36 x 24 mm, approx. 40 g; 250 group addresses / 250 associations
Technical Specifications
| Power supply | Via KNX bus, 21–32 V DC (SELV) |
| Current consumption | ≤ 10 mA |
| Inputs | 4 digital + 4 digital/analog (NTC TS01A01ACC / TS01B01ACC, max 20 m (66 ft)) |
| Outputs | 4 LED outputs, 0.3 mA (LD00A01ACC / LD00A11ACC) |
| Thermostat modules / logic blocks | 4 / 5 |
| Connections | Flying leads 18 cm (7 in), AWG24 |
| Group addresses / associations | 250 / 250 |
| Mounting | Flush-mount box behind switch plate |
| Dimensions | 43 x 36 x 24 mm (1.69 x 1.42 x 0.94 in) |
| Enclosure | IP20 (EN 60529) |
| Operating temperature | -5 °C to +45 °C (23 °F to 113 °F) |
| Storage temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Relative humidity | max 90 % non-condensing, indoor use |
| Standards | EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | KNX certified; CE |
| ETS application | AD84C01KNX in-wall module application |
| Weight (net) | 0.05 kg (0.11 lb) |
| Manufacturer part no. / GTIN | AD84C01KNX / 8054144520841 |
Related Products
Accessories: TS01A01ACC / TS01B01ACC probes; LD00A01ACC / LD00A11ACC LEDs. Input-only in-wall interfaces: IO22D02KNX, IO44D02KNX, IO62D02KNX. With relay outputs: IO42E01KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
