Eelectron 9025GT07D03-H Custom Double Glass - Hotel Display - Black
Eelectron 9025GT07D03-H Custom Double Glass - Hotel Display - Black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron 9025GT07D03-H Custom Double Glass - Hotel Display - Black

SKU: 9025GT07D03-H
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$80.90 USD
-9% $88.48 USD $80.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

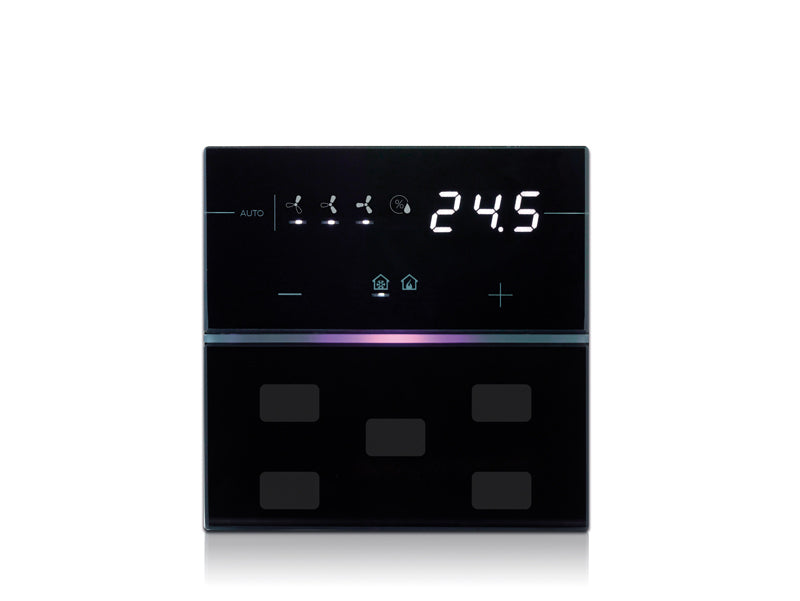

The Eelectron 9025GT07D03-H is a black 2-module glass cover for the 9025 capacitive KNX thermostat range, with a Hotel display layout — icons and set-point/fan controls arranged for guest-room use (comfort/eco/standby, fan speed, heating/cooling) with a hospitality icon set. It is the visible part of the thermostat: the 2-module hardware (RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3) is ordered separately and fitted behind this glass in a 2-module flush box, giving a flat, frameless touch surface with 7 capacitive buttons. The standard double-glass cover sits over the RT07/RH07 hardware and its RGB LED bar.

The black finish suits dark, contemporary interiors; the same glass in white is 9025GT07D01-H, and the Residential layout is 9025GT07D03-R. This CUSTOM version backlights interchangeable icons so each touch position shows the function configured in ETS; populate it with the 9025ISA…9025ISF icon sets. Handle the glass with care during installation to avoid chipping.

Key Features

  • 2-module glass cover for the 9025 capacitive KNX thermostat / humidistat (standard double-glass series)
  • Hotel display layout (-H)
  • Finish: black
  • CUSTOM version with backlit, interchangeable icons — use 9025ISA…ISF icon sets
  • Double-glass construction over the RT07/RH07 hardware and RGB LED bar
  • Fits 2-module hardware RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3
  • 96 × 96 mm (3.8 × 3.8 in) front; passive part, no electronics

Technical Specifications

Type 2-module glass cover, standard double-glass series
Layout Hotel display (-H)
Keys / layout 7 capacitive touch positions; customizable backlit icons
Finish / colour Black
Material Glass
Compatible hardware RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3
Dimensions 96 × 96 mm (3.8 × 3.8 in) front
Weight 0.13 kg (0.29 lb)
Manufacturer part no. / GTIN 9025GT07D03-H / 8054144520506

Related Products

Hardware: RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3. Same glass in white: 9025GT07D01-H; Residential layout: 9025GT07D03-R. Icon sets 9025ISA-1/-3, 9025ISB-1/-3, 9025ISC-1/-3, 9025ISD-1/-3, 9025ISE-1/-3, 9025ISF-1/-3. Other 2-module covers: 9025GT07B01/B03-H/-R and 9025GT07D01/D03-H/-R (double glass, custom), 9025GT07L01/L03-H/-R (LINE gloss), 9025GT07LM1/LM3-H/-R (LINE matte), 9025GT07W01/W03-H/-R (LINE custom). Temperature probes for the rear input: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3.

Passive accessory – no electrical rating. The 9025 RT07/RH07 KNX thermostat hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
