Eelectron 9025GT07B01-R Room Thermostat Cover Line standard – white
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$90.90 USD
Regular price
-8%
$98.56 USD
Sale price
$90.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

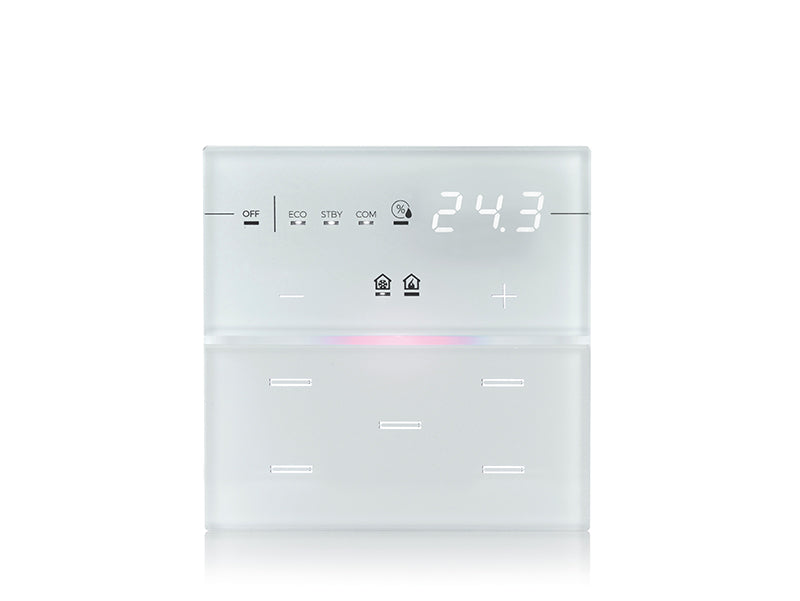

The Eelectron 9025GT07B01-R is a white 2-module glass cover for the 9025 capacitive KNX thermostat range, with a Residential display layout — icons arranged for home and office thermostat use (set-point, mode, fan speed, heating/cooling). It is the visible part of the thermostat: the 2-module hardware (RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3) is ordered separately and fitted behind this glass in a 2-module flush box, giving a flat, frameless touch surface with 7 capacitive buttons. The standard double-glass cover sits over the RT07/RH07 hardware and its RGB LED bar.
The white finish suits light, classic interiors; the same glass in black is 9025GT07B03-R, and the Hotel layout is 9025GT07B01-H. Handle the glass with care during installation to avoid chipping.
Key Features
- 2-module glass cover for the 9025 capacitive KNX thermostat / humidistat (standard double-glass series)
- Residential display layout (-R)
- Finish: white
- Fixed pre-printed icon set for 7 capacitive buttons
- Double-glass construction over the RT07/RH07 hardware and RGB LED bar
- Fits 2-module hardware RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3
- 96 × 96 mm (3.8 × 3.8 in) front; passive part, no electronics
Technical Specifications
| Type | 2-module glass cover, standard double-glass series |
| Layout | Residential display (-R) |
| Keys / layout | 7 capacitive touch positions |
| Finish / colour | White |
| Material | Glass |
| Compatible hardware | RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3 |
| Dimensions | 96 × 96 mm (3.8 × 3.8 in) front |
| Weight | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | 9025GT07B01-R / 8054144520452 |
Related Products
Hardware: RT07A01KNX-1 / RT07A01KNX-3 and RH07A01KNX-1 / RH07A01KNX-3. Same glass in black: 9025GT07B03-R; Hotel layout: 9025GT07B01-H. Other 2-module covers: 9025GT07B01/B03-H/-R and 9025GT07D01/D03-H/-R (double glass, custom), 9025GT07L01/L03-H/-R (LINE gloss), 9025GT07LM1/LM3-H/-R (LINE matte), 9025GT07W01/W03-H/-R (LINE custom). Temperature probes for the rear input: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3.
Passive accessory – no electrical rating. The 9025 RT07/RH07 KNX thermostat hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
