Eelectron 9025GM06L03 KNX Multi-Sensor Cover GLASS PAD Line 6-way, single, for MC06A01KNX-3 – black
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$68.90 USD
Regular price
-8%
$75.04 USD
Sale price
$68.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

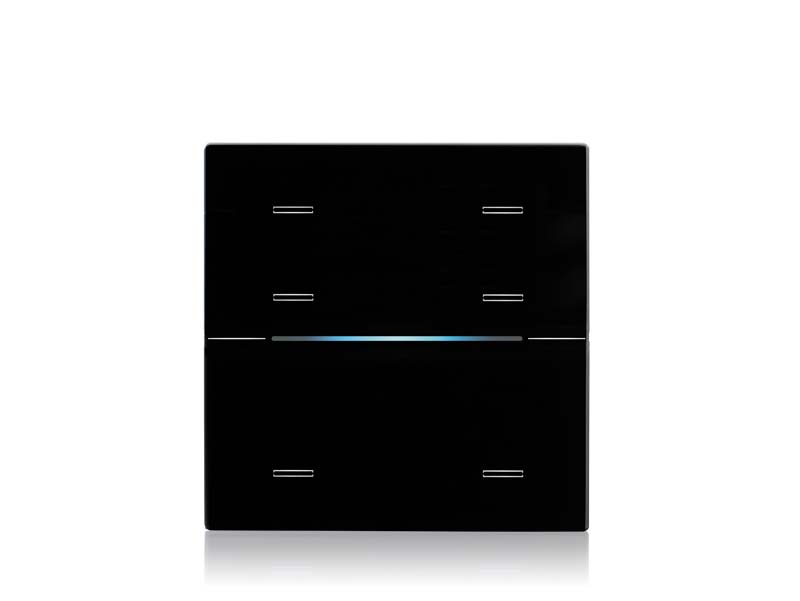

The Eelectron 9025GM06L03 is the GLASS PAD Line glass for the MC06 multisensor in black glossy for the 9025 multisensor controller MC06A01KNX (CO2, humidity and temperature, 6 capacitive keys, two thermostats). In the 9025 range the KNX hardware is one part number and the capacitive touch surface — this glass — is ordered separately, so the number of touch zones and the look of the keypad are decided by the glass.
This glass carries six touch zones for the controller's six capacitive keys plus the openings for the front RGB LED and the sensor path, in black to match the MC06A01KNX-3 hardware. Keys are typically assigned to setpoint, mode and fan commands or to lighting and shading, while the RGB LED shows temperature, humidity and CO2 or any other bus value.
Set the host's ETS configuration to the matching channel count, and order glass and hardware in the same colour code (-3 = black).
Key Features
- Type: GLASS PAD Line glass for the MC06 multisensor
- Finish: black glossy glass
- Format: 96 x 96 mm (3.78 x 3.78 in) 2-module format
- Host hardware: MC06A01KNX-3
- 6 capacitive touch zones with LEDs plus front RGB LED window
- Proximity wake-up: the device leaves Economy mode and lights the keys as a hand approaches
- Keys handle on/off, dimming, shutters/blinds, scenes, sequences and local thermostat control via the host
- Swappable later to change layout or colour without touching wiring or ETS addressing
Technical Specifications
| Type | 9025 capacitive glass cover (touch surface) |
| Keys / layout | 6 touch zones |
| Range | GLASS PAD Line glass for the MC06 multisensor |
| Finish / colour | black glossy glass |
| Material | glass |
| Compatible hardware | MC06A01KNX-3 |
| Format | 96 x 96 mm (3.78 x 3.78 in) 2-module format |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | 9025GM06L03 / 8054144520391 |
Related Products
Host hardware: MC06A01KNX-3. Other colour: 9025GM06L01. Companion 9025 controllers: HC06A01KNX-1 / -3 with 9025GH06L01 / L03 glass. NTC probes for the rear input: TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC (with 9025GS00A01 / 9025GS00A03 glass for TS01D01ACC).
Passive accessory – no electrical rating. The 9025 KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
