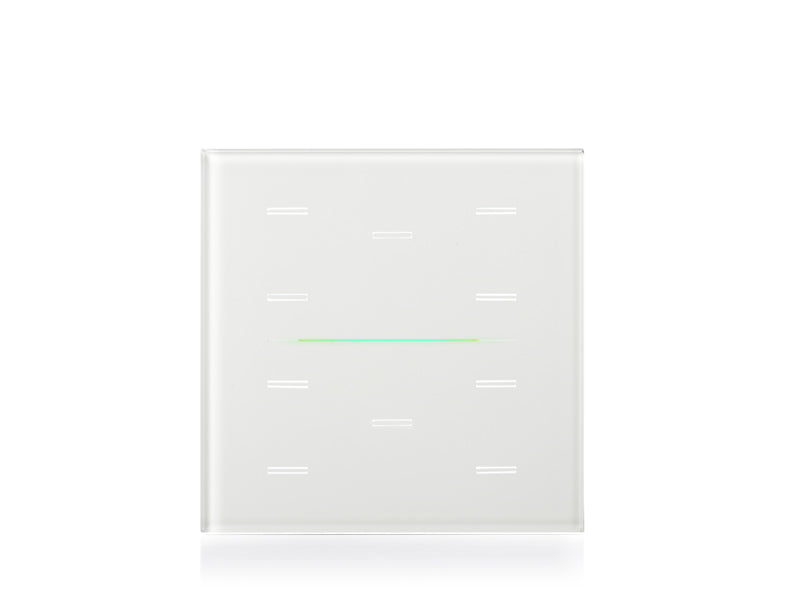

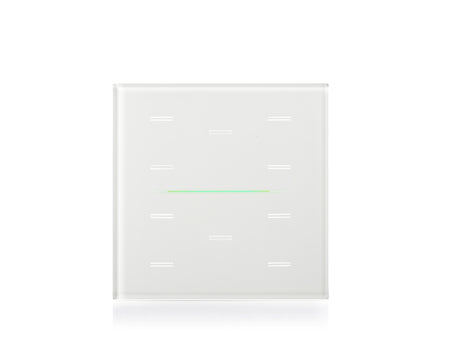

Eelectron 9025GL10L01 KNX push sensor cover GLASSPAD Line 10-speed, single – white
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$67.90 USD
Regular price
-8%
$73.92 USD
Sale price
$67.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron 9025GL10L01 is the LINE series glass, 10 channels in white glossy for the 2-module 9025 capacitive push button CS10A01KNX-x. In the 9025 range the KNX hardware is one part number and the capacitive touch surface — this glass — is ordered separately, so the number of touch zones and the look of the keypad are decided by the glass.
The 10-channel layout gives 10 touch zones, each with its own white LED, over the 2-module device. The LINE series is the current 9025 glass design: a clean linear key grid with discreet LED dots, suitable for residential, hospitality and commercial interiors.
Set the host's ETS configuration to the matching channel count, and order glass and hardware in the same colour code (-1 = white).
Key Features
- Type: LINE series glass, 10 channels
- Finish: white glossy glass
- Format: 96 x 96 mm (3.78 x 3.78 in) 2-module format
- Host hardware: CS10A01KNX-1
- 10 capacitive touch zones, each with a white LED; functions assigned per key in ETS
- Proximity wake-up: the device leaves Economy mode and lights the keys as a hand approaches
- Keys handle on/off, dimming, shutters/blinds, scenes, sequences and local thermostat control via the host
- Swappable later to change layout or colour without touching wiring or ETS addressing
Technical Specifications
| Type | 9025 capacitive glass cover (touch surface) |
| Keys / layout | 10 touch zones |
| Range | LINE series glass, 10 channels |
| Finish / colour | white glossy glass |
| Material | glass |
| Compatible hardware | CS10A01KNX-1 |
| Format | 96 x 96 mm (3.78 x 3.78 in) 2-module format |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | 9025GL10L01 / 8054144520261 |
Related Products
Host hardware: CS10A01KNX-1. Other colour: 9025GL10L03. Other channel counts in this series: 9025GL04L01, 9025GL08L01. Matte RGB version: 9025GL10LM1. Custom-icon version: 9025GL10W01. NTC probes: TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC.
Passive accessory – no electrical rating. The 9025 KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
