Eelectron 9025GL08B01 KNX Touch Sensor Cover GLASSPAD Line 8-speed, Double – white
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$99.90 USD
Regular price
-8%
$108.64 USD
Sale price
$99.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

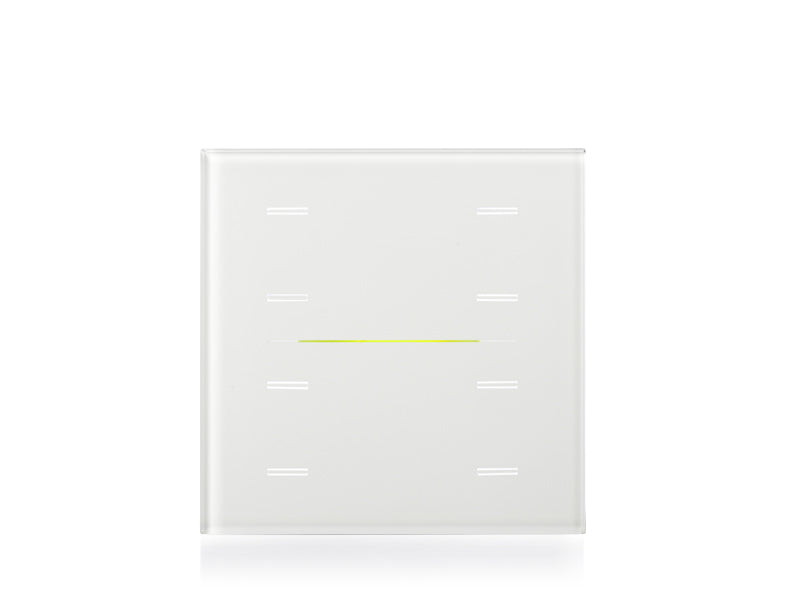

The Eelectron 9025GL08B01 is the GLASS PAD RGB-range ("Double") glass, 8 channels in white glossy for the 2-module 9025 capacitive push button CS10A01KNX-x. In the 9025 range the KNX hardware is one part number and the capacitive touch surface — this glass — is ordered separately, so the number of touch zones and the look of the keypad are decided by the glass.
The 8-channel layout gives 8 touch zones, each with its own white LED, over the 2-module device. The "B" (Double / RGB-range) glass includes the window for the device's front RGB LED bar, so bus states can be shown in colour alongside the white key LEDs. It is a 2-module-only range.
Set the host's ETS configuration to the matching channel count, and order glass and hardware in the same colour code (-1 = white).
Key Features
- Type: GLASS PAD RGB-range ("Double") glass, 8 channels
- Finish: white glossy glass
- Format: 96 x 96 mm (3.78 x 3.78 in) 2-module format
- Host hardware: CS10A01KNX-1
- 8 capacitive touch zones, each with a white LED; functions assigned per key in ETS
- Window for the front RGB LED bar (status / value display from the KNX bus)
- Proximity wake-up: the device leaves Economy mode and lights the keys as a hand approaches
- Keys handle on/off, dimming, shutters/blinds, scenes, sequences and local thermostat control via the host
- Swappable later to change layout or colour without touching wiring or ETS addressing
Technical Specifications
| Type | 9025 capacitive glass cover (touch surface) |
| Keys / layout | 8 touch zones |
| Range | GLASS PAD RGB-range ("Double") glass, 8 channels |
| Finish / colour | white glossy glass |
| Material | glass |
| Compatible hardware | CS10A01KNX-1 |
| Format | 96 x 96 mm (3.78 x 3.78 in) 2-module format |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | 9025GL08B01 / 8054144520148 |
Related Products
Host hardware: CS10A01KNX-1 (2-module). Other colour: 9025GL08B03. Other channel counts: 9025GL04B01, 9025GL10B01. Custom-icon Double glass: 9025GL10D01. LINE series alternatives: 9025GL08L01 / 9025GL08LM1. NTC probes: TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC.
Passive accessory – no electrical rating. The 9025 KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
