DALI Touchpanel 02
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$381.60 USD
Regular price
-20%
$477.00 USD
Sale price
$381.60 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Lunatone DALI Touchpanel 02 is the proven multifunctional wall control for DALI systems: up to 12 freely configurable touch keys behind a clean glass-look front, bus powered, with interchangeable printed inlays to match any project. Choose between default user interfaces for groups/scenes or colour/colour-temperature control; every key gets its own target address, behaviour and DALI commands, plus macros — colour temperature, dynamic scenes, sequencer, custom command lists.
Key features
- Up to 12 configurable keys; predefined layouts for dim/switch, scenes, TC and RGB
- Customisable paper inlays — adapt the panel to any installation
- Bus powered (4mA), multi-master; configuration via DALI Cockpit

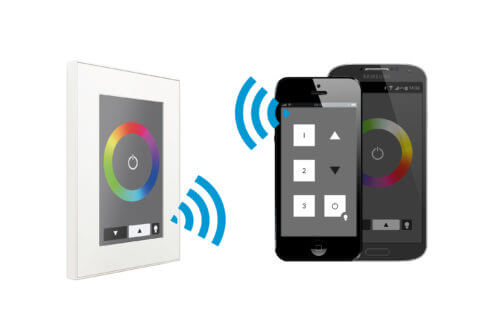

- Bluetooth version: adds a connection to the DALI Touch App (iOS/Android) with up to 32 configurable interface pages; layouts shareable via dalitouch.com
- Slim 111 × 82 × 9 mm, white ABS, flush-box mounting
Technical specifications
| Supply | DALI bus, 4mA |
| Keys | Up to 12, freely configurable |
| Dimensions | 111 × 82 × 9 mm · IP20 |
Looking for the current DALI-2 generation with glass fronts? See the DALI-2 Touchpanel 03.
