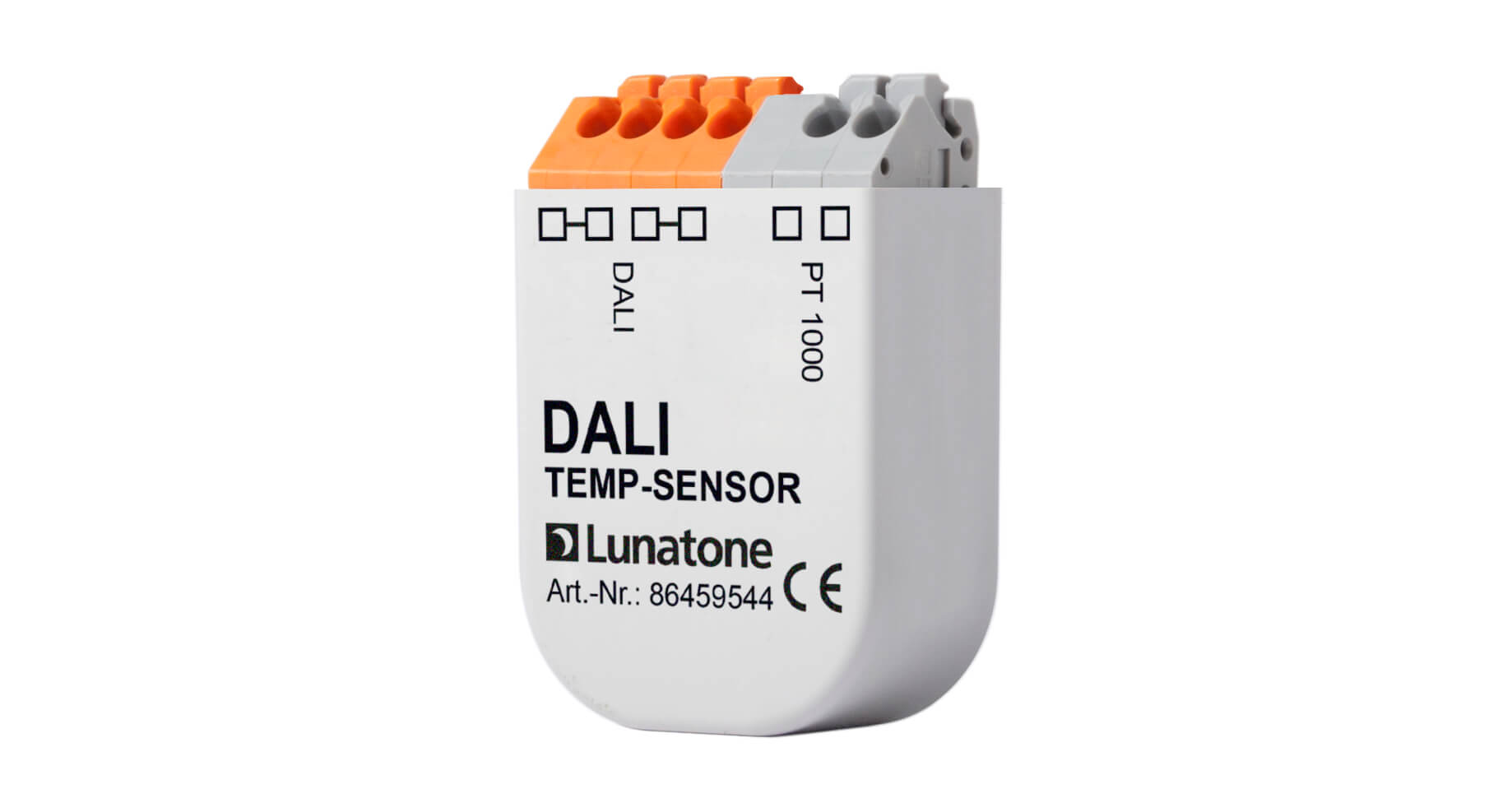

Lunatone DALI Temp PT1000 temperature sensor
Lunatone DALI Temp PT1000 temperature sensor

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

LUNATONE

DALI Temp PT1000 – Temperature Sensor

SKU: 86459544
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$84.96 USD
-20% $106.20 USD $84.96 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Lunatone DALI Temp PT1000 adds temperature measurement to the DALI bus: an internal sensor (0–85°C, ±0.5°C) plus an input for an external PT1000 element (-25 to +125°C, ±0.4°C). Readings are queried via DALI scene values — monitor luminaire temperatures, heating systems, or drive temperature-based blind control through DALI Visual. Bus powered, one DALI address, back-box format.

Key features

  • Internal sensor + external PT1000 input on a single DALI address
  • Readout via DALI scene values; visualisation with DALI Visual software
  • Bus powered (2.6mA), multi-master, configurable via DALI Cockpit
  • Compact 40 × 28 × 14 mm

Technical specifications

Internal range 0–85°C, accuracy 0.5°C
External PT1000 -25 to +125°C, accuracy 0.4°C
Supply DALI bus, 2.6mA
Dimensions 40 × 28 × 14 mm · IP20
