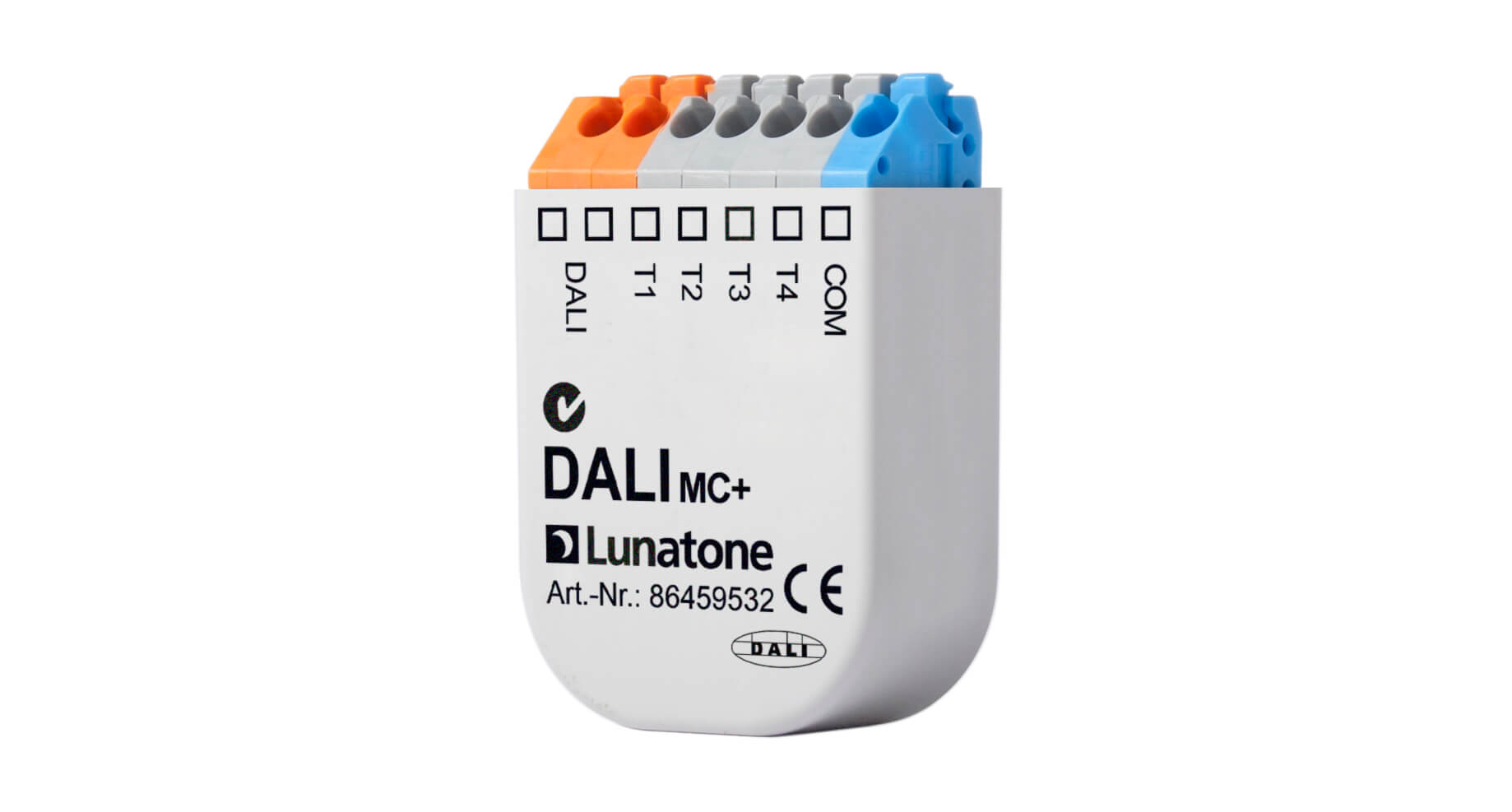

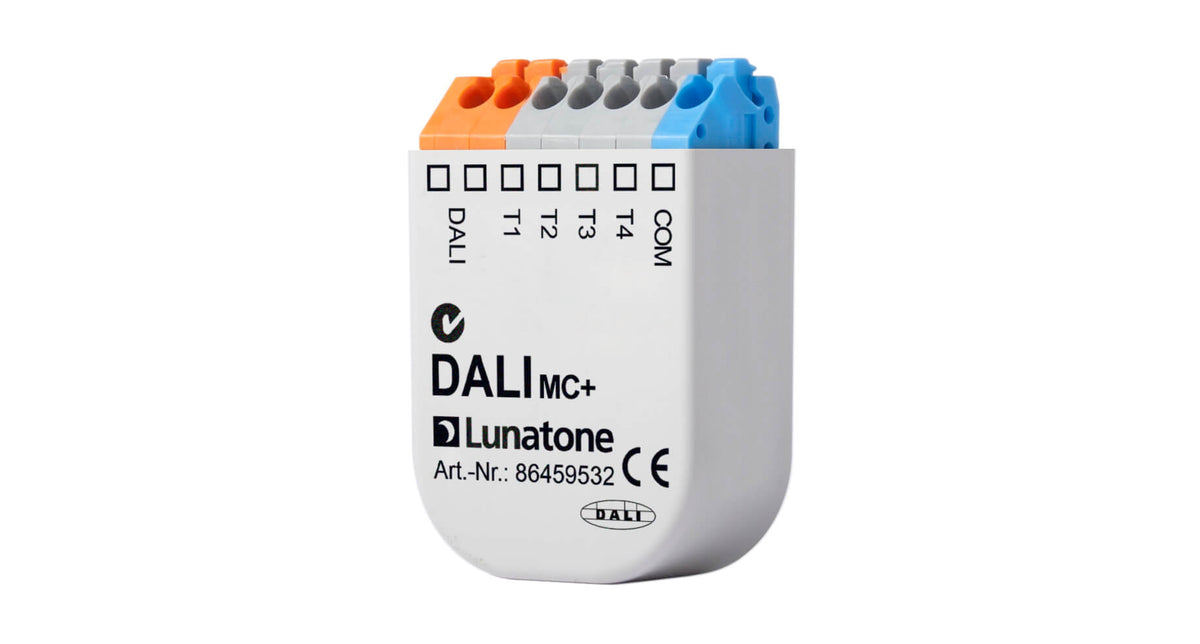

DALI MC+

DALI control module with four GP-inputs for pushbutton switches and potentiometers

• Compact DALI control unit with 4 general purpose inputs
• Each input can be configured for digital or analog input signals
• Momentary switches or 100kΩ potentiometers are connected directly to the DALI MC+ destination address, switching mode and DALI-commands can be assigned
  to each input
• DALI DT8 support for adjustable white luminaires with the help of special
  macros
• For potentiometer use the input signal is converted directly into a DALI arc power level. The conversion can be triggered periodically or by a
  predefined event.
• A switching action or a change in the input voltage signal (>2%) can be
  selected as trigger event for the conversion.
• Adjustable „power-up“-function the function of the switching input can be configured with the help of the DALI Cockpit and a DALI USB interface
• Multi-master capability, several modules can be installed on the same
  DALI-line

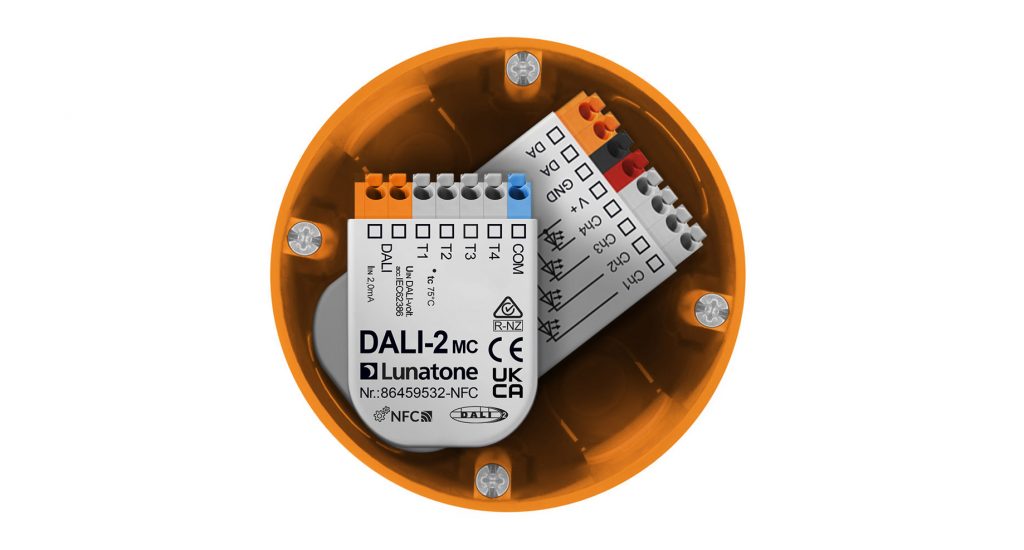

• Duitable for installation in protection class II devices or back box installation
• The DALI MC+ is supplied directly via the DALI signal line.

Note: This product is delivered with no individual packaging for less than 10 units ordered.
