LUNATONE

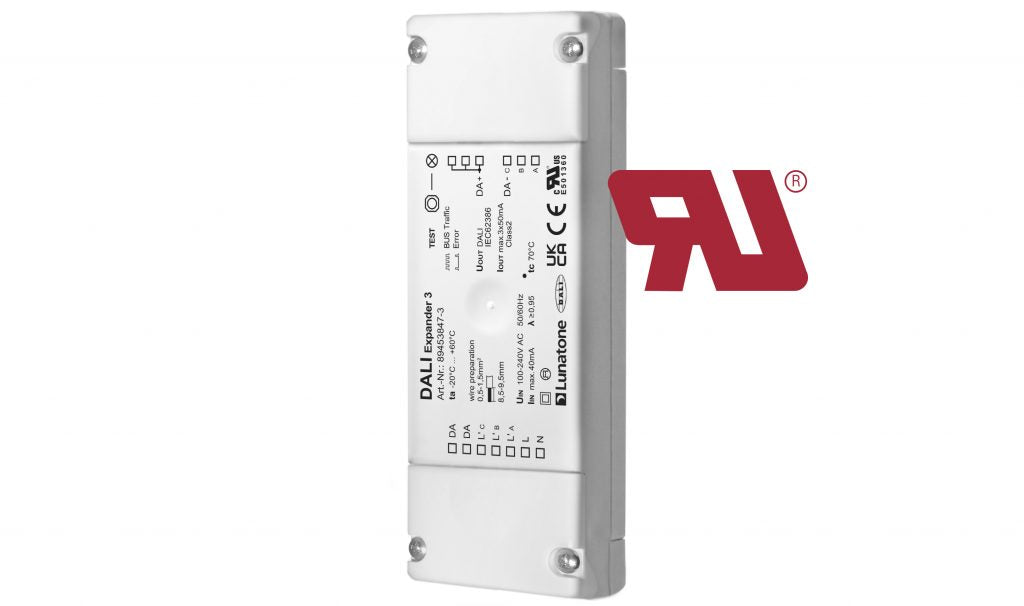

DALI Expander 3

SKU: 89453847-3
(0)
✓ UL Listed
This product is certified by a Nationally Recognized Testing Laboratory (NRTL) — such as UL, ETL, or CSA — for direct installation in USA projects. Meets NEC requirements without additional AHJ approval.
$334.08 USD
-20% $417.60 USD $334.08 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

DALI input 3 addresses to 3 x DALI Broadcast out, DALI PS 50mA each, 3x Sw&Dim input

  • The DALI Expander-3 is intended for remote installation in the ceiling or in an
    enclosure, ensure proper cable relief for installation in protection class II devices
  • Wiring as fixed installation in a dry and clean environment
  • Installation only by qualified person when no voltage is applied
  • Attend regulations regarding electrical installations of national authorities
  • Connect power supply terminals L and N to mains voltage
  • The polarity of the output voltage is marked on the housing (DA+, DA- (A,B,C))
  • The DALI-line may be installed within the same cable or as single conductors within the same tube as mains supply
  • The DALI-line must not be connected to the mains or other extra low voltage systems
