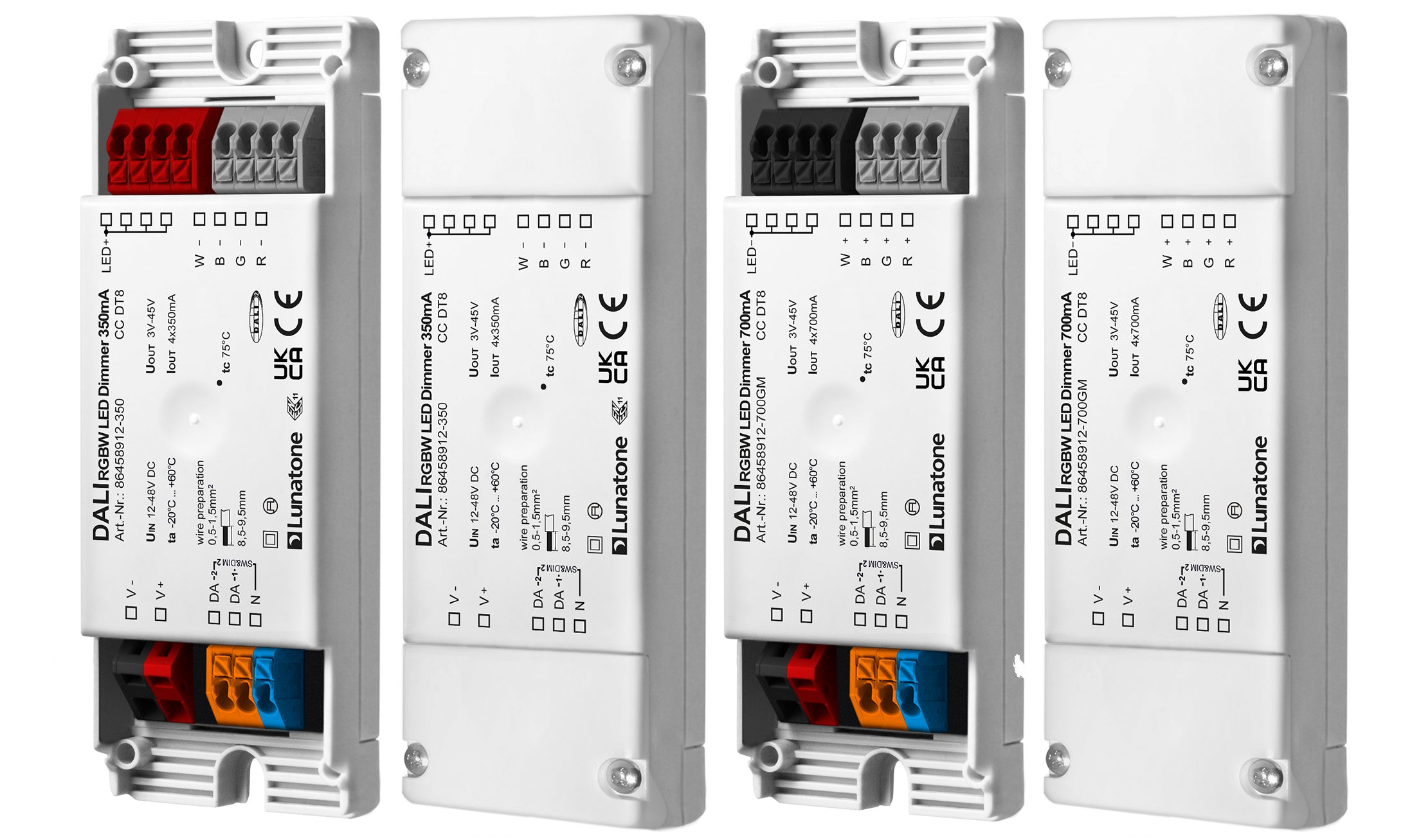

DALI DT8 RGBW CC

Installation

• The DALI RGBW LED Dimmer is an independent device and is intended for remote ceiling installation or in an enclosure.
•  Ensure proper cable relief for installation in protection class II devices
• The wiring should be carried out as a permanent installation in a dry and clean environment.
• Installation may only be carried out in a voltage-free state of the system and by qualified specialists.
•  National regulations for setting up electrical systems must be followed.
•  Connect terminals V + and V- to a DC voltage supply of the SELV category (Safety Extra Low Voltage) according to their label.
• The connection to the DALI line (terminals DA, DA) can be made regardless of polarity.
• For alternative use as Sw&Dim inputs, the same phase must be used for both inputs.
• The DALI bus input is protected against overvoltage (mains voltage) this protects the component from being destroyed in the event of incorrect wiring.
• Wiring topology of the DALI-line: line, tree, star.
• Connect only one wire on each terminal, if twin ferrules are used take care to the maximum wire size.
• The DALI wiring can be realised with standard low-voltage installation material. No special cables are required.
• The DALI line may be routed together with the mains voltage (in one cable or as single wires in a tube)

Attention: The DALI-signal is not classified as SELV circuit (Safety Extra
Low Voltage).

Therefore, the installation regulations for low voltage apply. The voltage drop on the DALI line must not exceed 2V at maximum length (300m) and maximum bus load (250mA).
