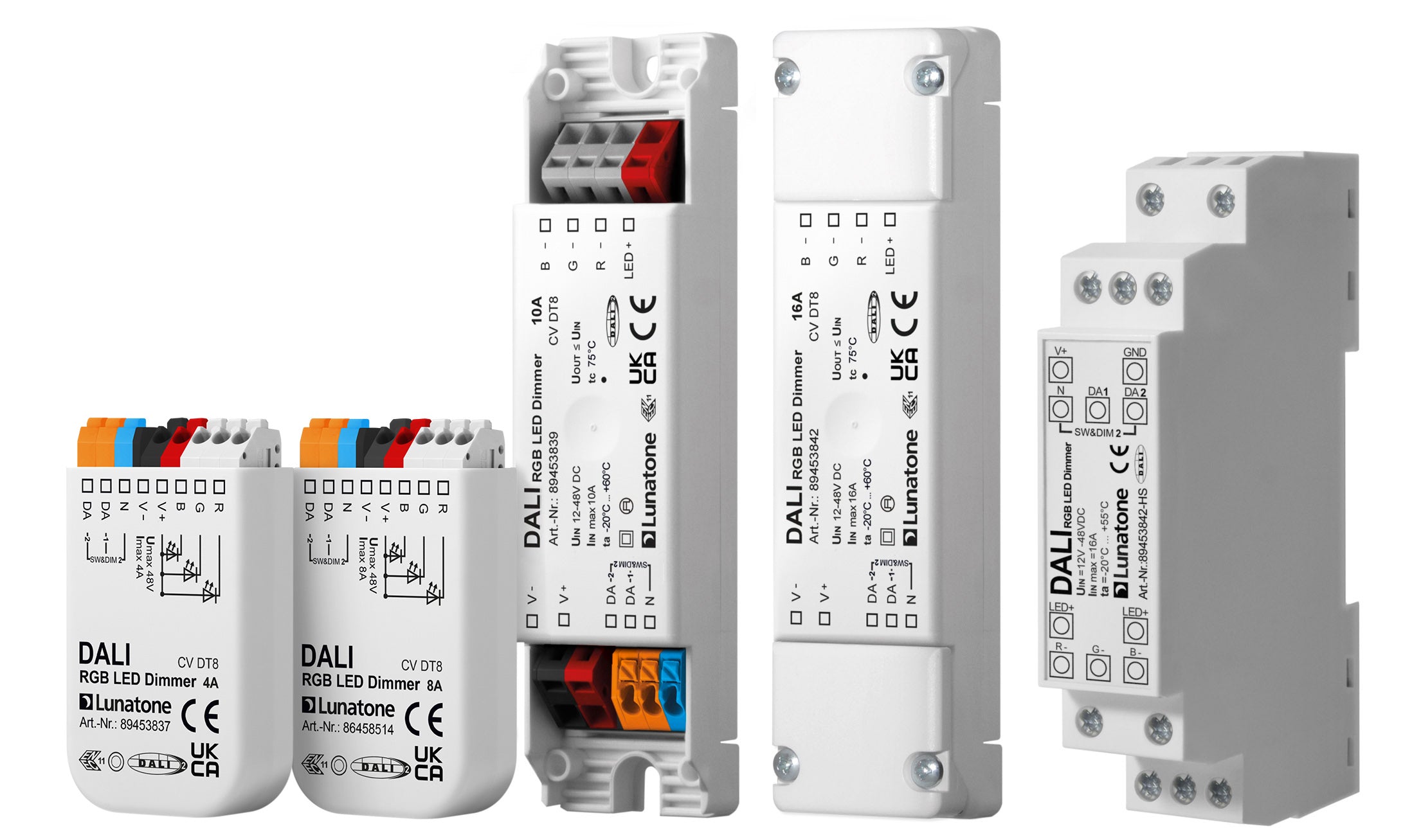

DALI DT8 RGB LED Dimmer 16A, Din Rail

DALI DT8 RGB LED constant voltage PWM 16A, Uin 12-48V, SwitchDim2, colour&DIM, Din Rail

Operating Modes

The device offers two operating modes: DT8 and Colour&Dim.

DT8 (factory default) In this operating mode one DALI-address for the independent control of light level and colour is used (Device Type 8 RGBWAF).

Alternatively, the device can be controlled using 2 switch-inputs for mains voltage (SwitchDim2):

• SwD1: light level
  • short press: On/Off
  • Long press: dimming
• SwD2: colour
  • Long press: change colour Colour&Dim

This operating mode is suitable for operating RGB—luminaires.

Two DALI-addresses are used, the first address to control the light level and the second address for changing the distribution on the output channels (e.g. for colour adjustments).

The Colour&Dim mode allows colour adjustments without affecting the level and vice versa.

For each channel, DALI-standard commands like dim up/down and DAP are used.

Thus, the device can be used with all common controls and gateways (e.g. KNX).

Colour&Dim mode provides an alternative to the DT8-RGBWAF mode.
Can be operated via DALI or SwitchDim2:

• DALI-address 1, SwD1: light level
• DALI-address 2, SwD2: colour


Selection of operating mode With the help of the PC-software tool DALICockpit the operating mode can be easily set on the general settings page.
