DALI DT8 CW-WW LED Dimmer CV
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$120.96 USD
Regular price
-20%
$151.20 USD
Sale price
$120.96 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

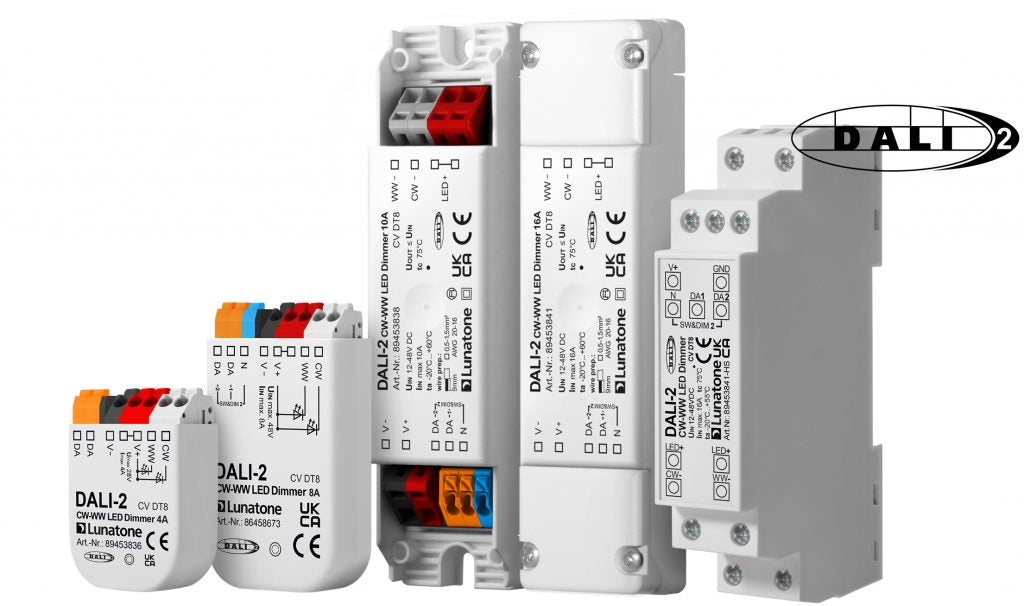

The Lunatone DALI DT8 CW-WW LED Dimmer controls constant-voltage tunable-white strips via a single DALI DT8 address: intensity and colour temperature in one command set, with the module blending the CW and WW channels. 12–48V DC SELV installation, ratings from 8A to 16A including DIN rail.
Key features
- DALI DT8 Tc: brightness + colour temperature on one address
- 2 × PWM outputs (CW/WW), 8A, 10A or 16A
- Configurable via DALI Cockpit; multi-master; SwitchDim2 supported
Versions
8A (86458673) · 10A (89453838) · 16A (89453841) · 16A DIN Rail (89453841-HS). A 4A version and a dual 2×CW-WW 16A DIN-rail module are available separately.
Technical specifications
| Supply / load | 12–48V DC (SELV) |
| Output | 2 × PWM (CW/WW), 8–16A |
| Control | DALI DT8 Tc, 1 address |
