DALI Bus Cable · UL Listed Plenum · 2 Conductors · Unshielded · 1000 ft
✓
UL Listed
This product is certified by a Nationally Recognized Testing Laboratory
(NRTL) — such as UL, ETL, or CSA — for direct installation in USA
projects. Meets NEC requirements without additional AHJ approval.
Regular price
$595.00 USD
Regular price
-13%
$680.00 USD
Sale price
$595.00 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
Recommended cable for DALI / DALI-2 bus wiring in Class 2 installations in the United States. Unshielded, UL Listed plenum low-voltage cable from the Anixter (Wesco) AL series. Sold in 1,000 ft reels.
Two gauges, one family
| Part number | Gauge | Recommended use |
|---|---|---|
| AL-1602C-2-2N-01 | 16 AWG, 2 conductors 19-strand bare copper |
Standard. Covers the maximum bus length (984 ft) in practically every case. |
| AL-1402C-2-2N-01 | 14 AWG, 2 conductors 19-strand bare copper |
Long runs. Bus at full load (250 mA), or one part number without checking distances. |
What this cable is
Low-voltage multiconductor cable from the Anixter Security / Alarm / Access Control / Sound, Non-Shielded Plenum family. Stranded bare copper conductors (19 strands), flame-retardant PVC (FRPVC) insulation and jacket, white jacket, no shield. UL Listed Type CMP (16 AWG) and CL3P (14 AWG) per NEC Articles 725 and 800, suitable for plenum spaces.
Direct equivalent of Belden 6100UE (14 AWG) and Belden 6200UE / General Cable E3042S (16 AWG), per Anixter's cross-reference.
Manufacturer data
| Characteristic | AL-1602C-2-2N-01 | AL-1402C-2-2N-01 |
|---|---|---|

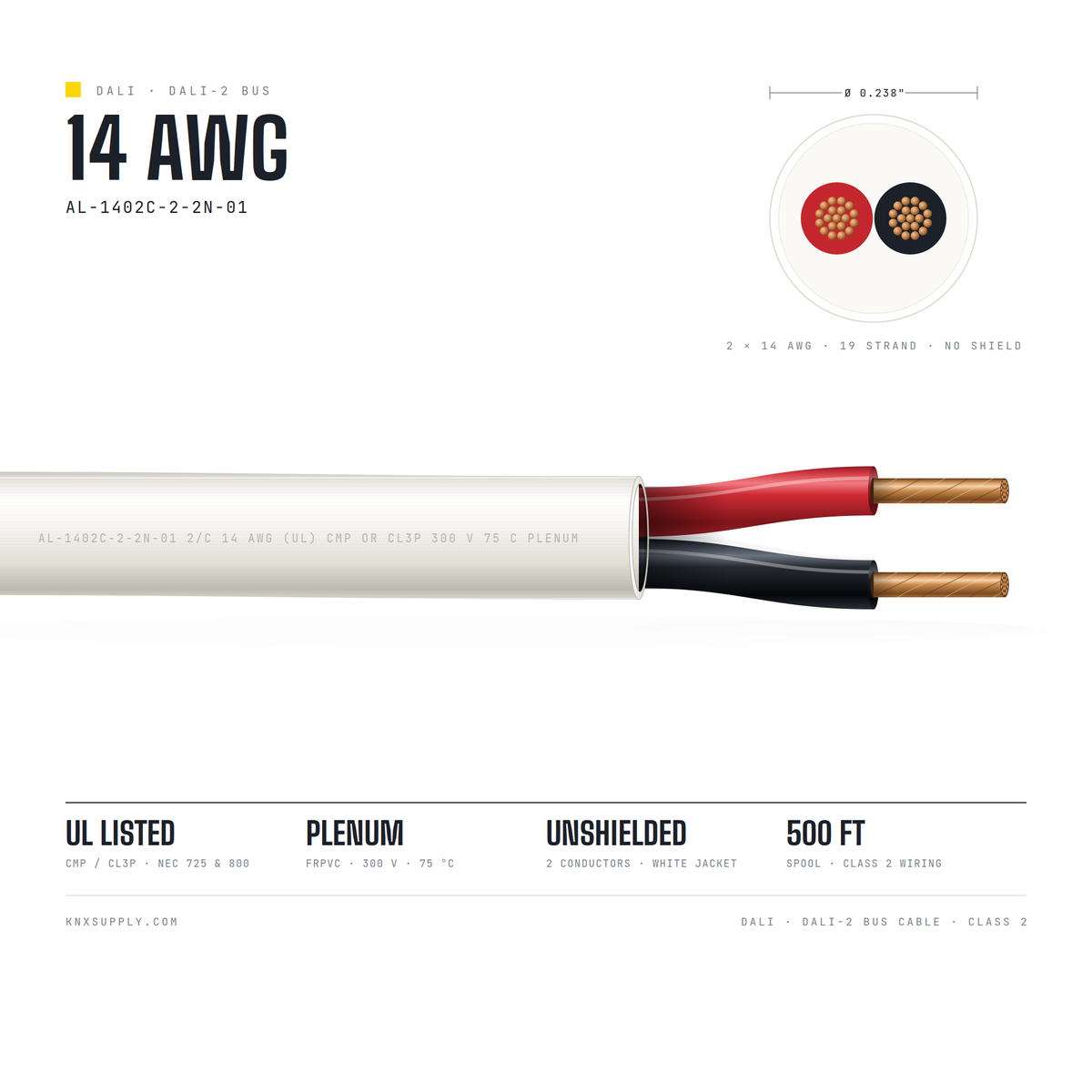

| Gauge and stranding | 16 AWG, 19 × 0.0117" | 14 AWG, 19 × 0.0147" |
| Conductors | 2, stranded bare copper | 2, stranded bare copper |
| Insulation | FRPVC, 0.009" wall | FRPVC, 0.010" wall |
| Jacket | White FRPVC, 0.018" wall | White FRPVC, 0.025" wall |
| Nominal outside diameter | 0.198" | 0.238" |
| Approximate weight | 30 lb / 1,000 ft | 45 lb / 1,000 ft |
| UL / NEC listing | CMP plenum, dual listed FPLP / CMP | CL3P plenum, dual listed FPLP / CL3P |
| Voltage and temperature | 300 V, 75 °C (167 °F) | 300 V, 75 °C (167 °F) |
| Shield | None | None |
| Packaging | 1,000 ft reel | 1,000 ft reel |
| Equivalents | Belden 6200UE, General Cable E3042S | Belden 6100UE |
Why it works for the DALI bus
The DALI bus (IEC 62386-101) is a polarity-free two-wire line at 1200 baud with Manchester encoding. The standard requires neither a shield nor a twisted pair, and limits the bus to 984 ft of total length with a maximum 2 V drop between the bus power supply and the farthest point at up to 250 mA. That gives an allowable loop resistance of 8 Ω:
| Gauge | Calculated reach, 8 Ω loop | Lutron table 369-650 |
|---|---|---|
| 18 AWG | ≈ 600 ft | 492 ft |
| 16 AWG | ≈ 950 ft | not listed |
| 14 AWG | > 984 ft (standard limit) | 984 ft |
Actual bus load is usually well below 250 mA (2 mA per DALI control gear plus the control devices), so 16 AWG covers almost any installation. 14 AWG is reserved for long runs at full load or to keep the spec to a single part number.
Condition of use: Class 2 installation
The DALI bus is not SELV. This cable (CL3P / CMP, 300 V) is valid when the bus is installed as a Class 2 circuit per NEC 725: UL Listed Class 2 bus power supply, and DALI terminals on every driver rated for Class 2 connection. In that case the cable runs separate from the power conductors.
If any driver or power supply in the project classifies its DALI connection as Class 1, the whole bus becomes Class 1 and must be wired with 600 V conductors (THHN / THWN in raceway, or MC cable with integral control conductors). This cable does not apply in that case.
How to specify and install it
- Unshielded. A shield adds nothing to the DALI bus and avoids a drain wire inside the luminaires.
- Plenum (CL3P / CMP) wherever the route passes through drop ceilings used as return-air plenums.
- Identification. White jacket as standard. To tell the DALI bus apart from 0-10V and other low-voltage wiring, label both ends.
- Termination. 19-strand conductors, compatible with the push-in and screw terminals on DALI drivers and power supplies (typical range 12 to 18 AWG).
