DALI-2 Touchpanel 04
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$308.16 USD
Regular price
-20%
$385.20 USD
Sale price
$308.16 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

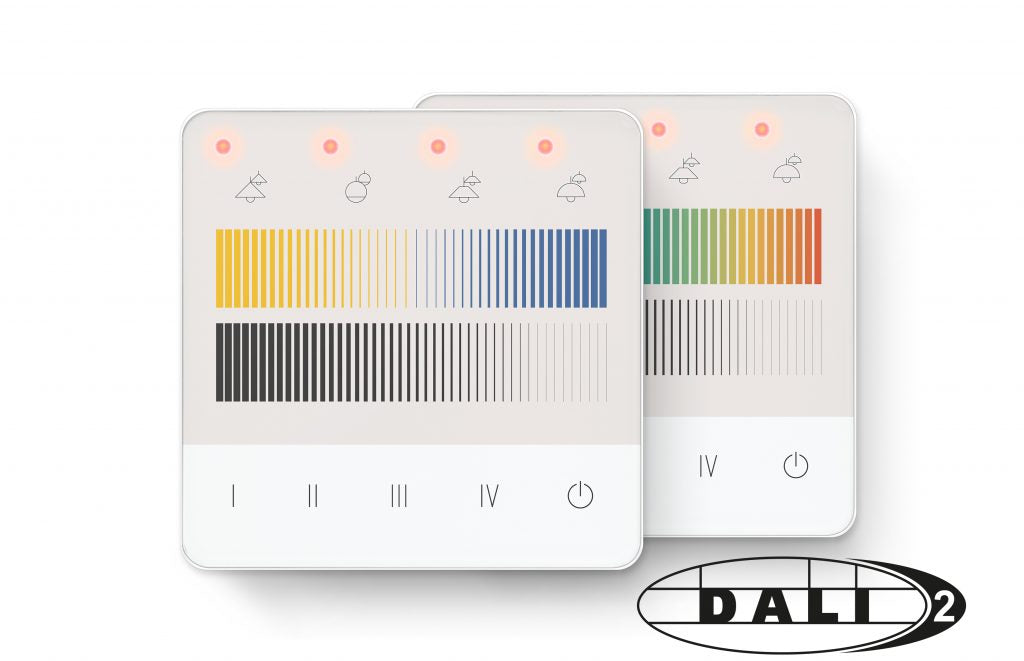

The Lunatone DALI-2 Touchpanel 04 adds what integrators asked for on the Touchpanel 03: four status LEDs that indicate the currently selected group, effective range or scene. The rest is the proven formula — an edge-to-edge glass touch surface with up to 16 freely configurable buttons, bus powered, with interchangeable printed glass and custom layouts via Lunatone's online configurator.
Key features
- 4 LEDs visualise the active group / effective range / scene selection
- Up to 16 capacitive buttons; keys and DALI commands assigned in DALI Cockpit
- Selection-button layouts: pick one of 4 groups or ranges, then use shared brightness / CW-WW / RGB sliders — more control in the same footprint
- Macros: colour temperature, dynamic scenes, sequences, user-defined command lists
- Interchangeable printed glass; extra glass sets and custom designs available
- Bus powered (5.4mA), multimaster, DALI-2 certified
Choose your layout
From clear glass to dimming with 4 groups, Tunable White or RGB with group/range selection buttons — six standard interfaces.
Technical specifications
| Supply | DALI bus, 5.4mA |
| Mounting | on back box |
| Dimensions | 87.7 × 87.7 × 16.5 mm |
| Protection | IP40 housing / IP20 terminals |
| Operating temperature | -20°C to +45°C |
The current flagship touch keypad of the Lunatone range — self-powering version available as DALI-2 Touchpanel 04 PS.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
Clear Glass (No Print)
24035290-G000
|
|
||
|
DIM Buttons + 4 Groups + 4 Scenes
24035290-G10A
|
|
||
|
DIM + Tunable White + 4 Group Selection + 4 Scenes
24035290-G11A
|
|
||
|
DIM + Tunable White + 4 Range Selection + 4 Scenes
24035290-G12A
|
|
||
|
DIM + RGB + 4 Group Selection + 4 Scenes
24035290-G13A
|
|
||
|
DIM + RGB + 4 Range Selection + 4 Scenes
24035290-G14A
|
|
