DALI-2 Touchpanel 03 PS
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$342.72 USD
Regular price
-20%
$428.40 USD
Sale price
$342.72 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

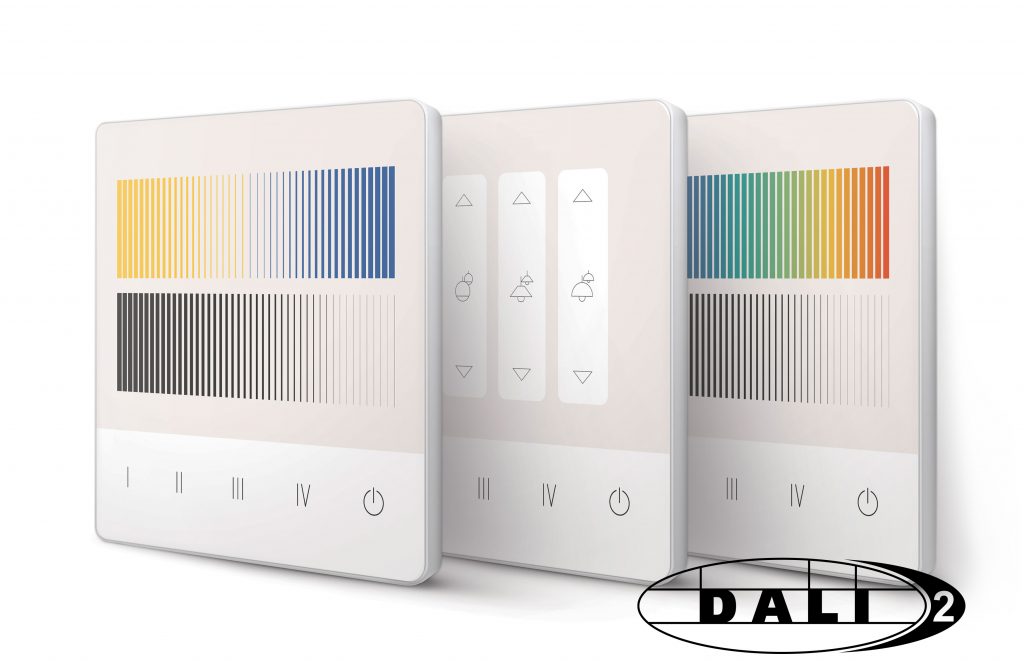

The Lunatone DALI-2 Touchpanel 03 PS is the self-powering version of the glass touch keypad: the same edge-to-edge tempered glass surface with up to 16 configurable buttons, plus an integrated mains-connected 70mA DALI bus power supply. One flush box delivers the room's control interface and the bus power — no separate DIN-rail PS needed for small lines.
Key features
- Integrated DALI PS 70mA — powers the panel and the connected DALI line
- Up to 16 capacitive buttons; keys and commands assigned in DALI Cockpit
- Macros: colour temperature, dynamic scenes, sequences, user-defined command lists
- Interchangeable printed glass; extra glass sets and custom layouts via the Lunatone configurator
- Multimaster, DALI-2 certified (IEC 62386-103)
- White plastic frame, glass touch surface, 16.5mm profile
Choose your layout
Ten printed interfaces — dimming, groups, Tunable White, RGB, RGBW, fan/blind combinations — or clear glass for a custom design.
Technical specifications
| Supply | mains connection, integrated 70mA DALI PS |
| Mounting | on back box |
| Dimensions | 87.7 × 87.7 × 16.5 mm |
| Protection | IP40 housing / IP20 terminals |
| Operating temperature | -20°C to +45°C |
The one-box room solution: Touchpanel 03 PS on the wall, DALI drivers in the luminaires, done. Bus-powered version without PS: DALI-2 Touchpanel 03.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
Clear Glass (No Print)
24035410-PS-G000
|
|
||
|
DIM + 4 Scenes
24035410-PS-G01A
|
|
||
|
DIM Buttons + 4 Groups + 4 Scenes
24035410-PS-G02A
|
|
||
|

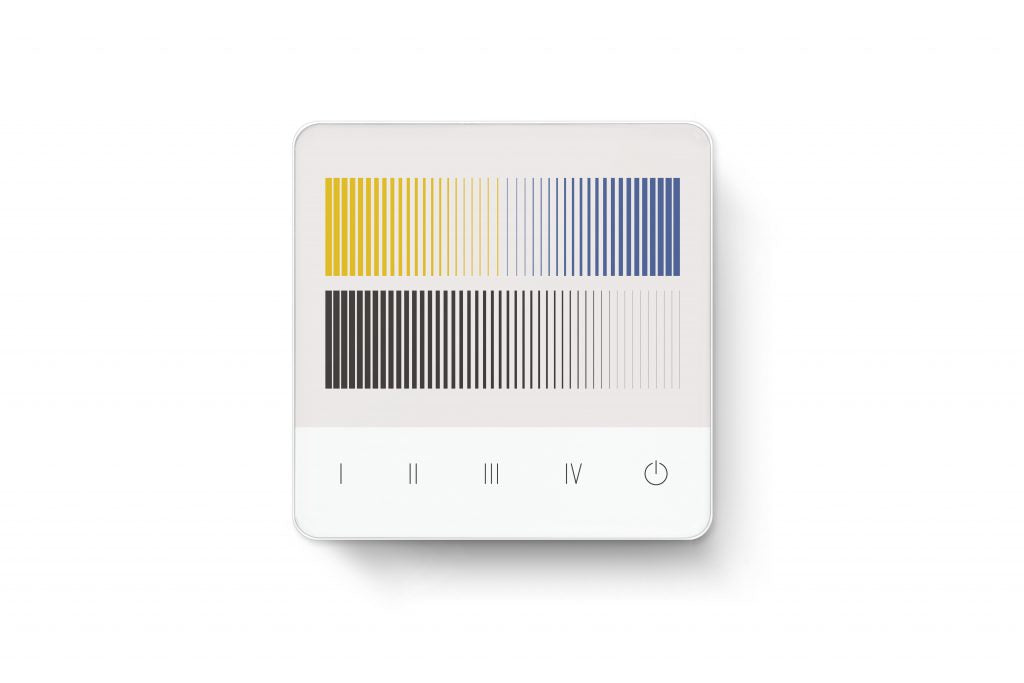

DIM + Tunable White + 4 Scenes
24035410-PS-G03A
|
|
||
|
DIM + Tunable White + 4 Groups + 4 Scenes
24035410-PS-G04A
|
|
||
|
DIM Buttons + Tunable White + 4 Groups + 4 Scenes
24035410-PS-G05A
|
|
||
|

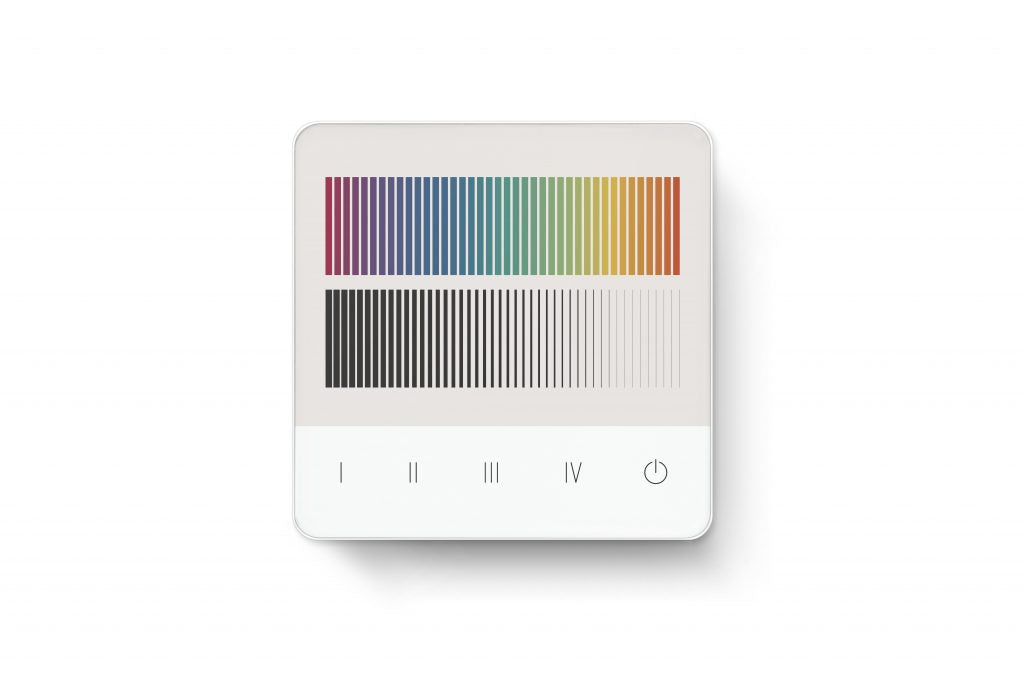

DIM + RGB + 4 Scenes
24035410-PS-G06A
|
|
||
|
DIM + RGB + 4 Groups + 4 Scenes
24035410-PS-G07A
|
|
||
|
Fan + Blinds + 2 Groups + Tunable White + 4 Scenes
24035410-PS-G08A
|
|
||
|
DIM + RGBW + 4 Scenes
24035410-PS-G09A
|
|
