DALI-2 Touchpanel 03
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$290.88 USD
Regular price
-20%
$363.60 USD
Sale price
$290.88 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Lunatone DALI-2 Touchpanel 03 is a glass-front touch keypad with up to 16 freely configurable buttons — an edge-to-edge tempered glass control surface only 16.5mm deep, powered entirely from the DALI bus. Ten standard layouts cover everything from a single dimmer to RGBW colour control, the printed glass can be swapped on site, and fully custom layouts can be designed with Lunatone's online configurator.
Key features
- Up to 16 capacitive buttons; keys and DALI commands assigned in DALI Cockpit
- Standard functions plus macros: colour temperature, dynamic scenes, sequences, user-defined command lists

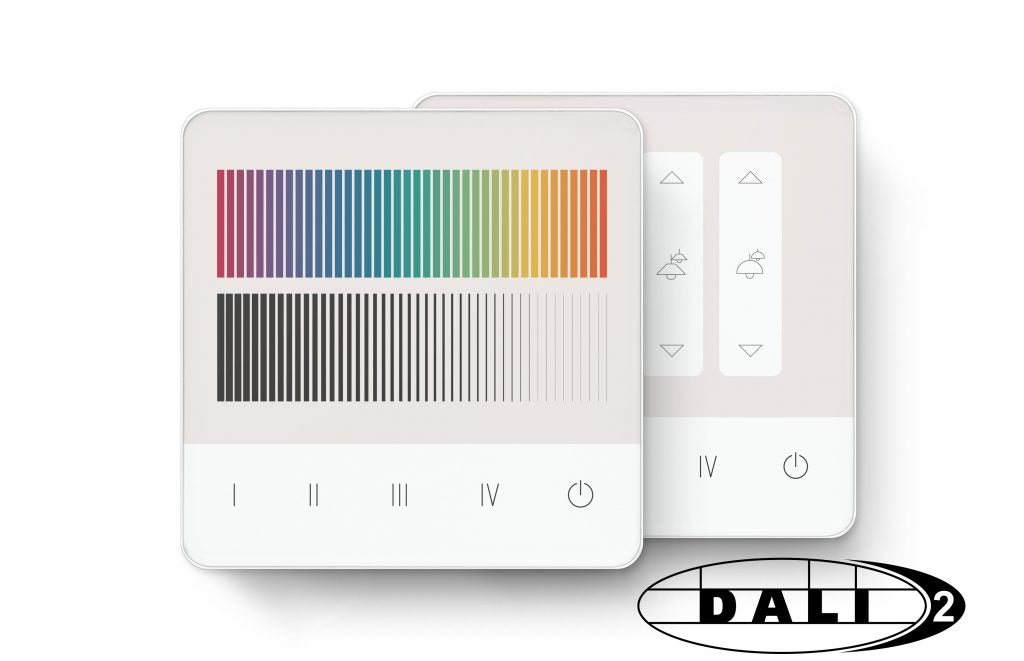

- Interchangeable printed glass — change the layout without changing the device; extra glass sets available
- Custom user interfaces via the Lunatone Touchpanel configurator
- Bus powered (5mA typical), multimaster, DALI-2 certified (IEC 62386-103)
- White plastic frame (other colours on request), glass touch surface
Choose your layout
From clear glass (design your own) through dimming, Tunable White, RGB and RGBW layouts with scene and group menus — select the printed interface that matches the room's lighting.
Technical specifications
| Supply | DALI bus, ~5mA |
| Mounting | on back box |
| Dimensions | 87.7 × 87.7 × 16.5 mm |
| Protection | IP40 housing / IP20 terminals |
| Operating temperature | -20°C to +45°C |
Need the panel to also power the DALI line? See the DALI-2 Touchpanel 03 PS with integrated 70mA bus supply.
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
Clear Glass (No Print)
24035410-G000
|
|
||
|
DIM + 4 Scenes
24035410-G01A
|
|
||
|
DIM Buttons + 4 Groups + 4 Scenes
24035410-G02A
|
|
||
|

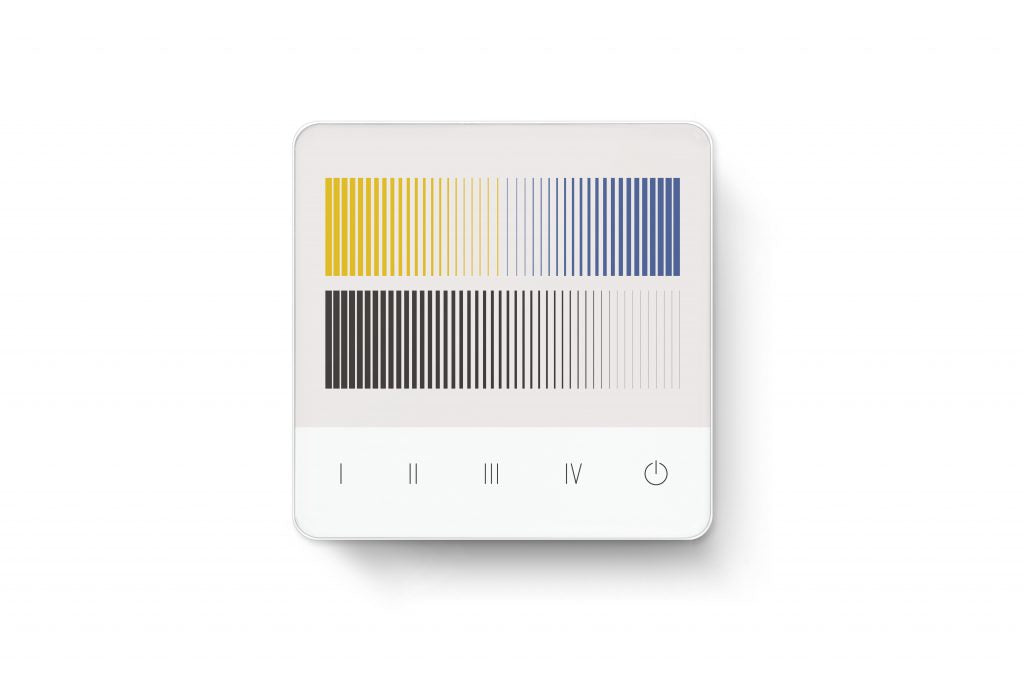

DIM + Tunable White + 4 Scenes
24035410-G03A
|
|
||
|

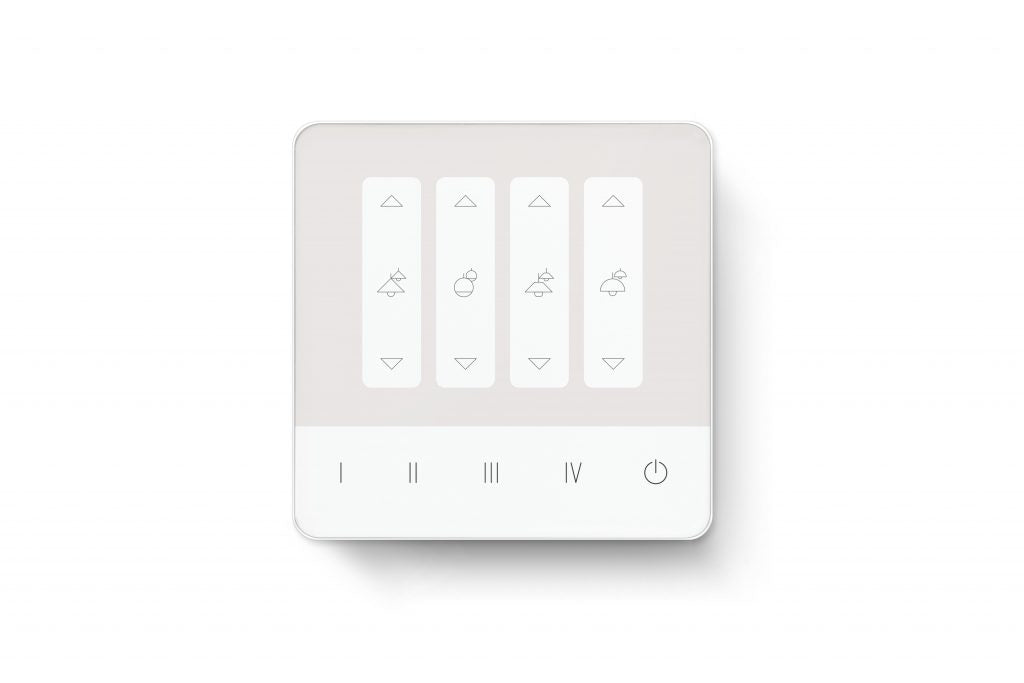

DIM + Tunable White + 4 Groups + 4 Scenes
24035410-G04A
|
|
||
|
DIM Buttons + Tunable White + 4 Groups + 4 Scenes
24035410-G05A
|
|
||
|

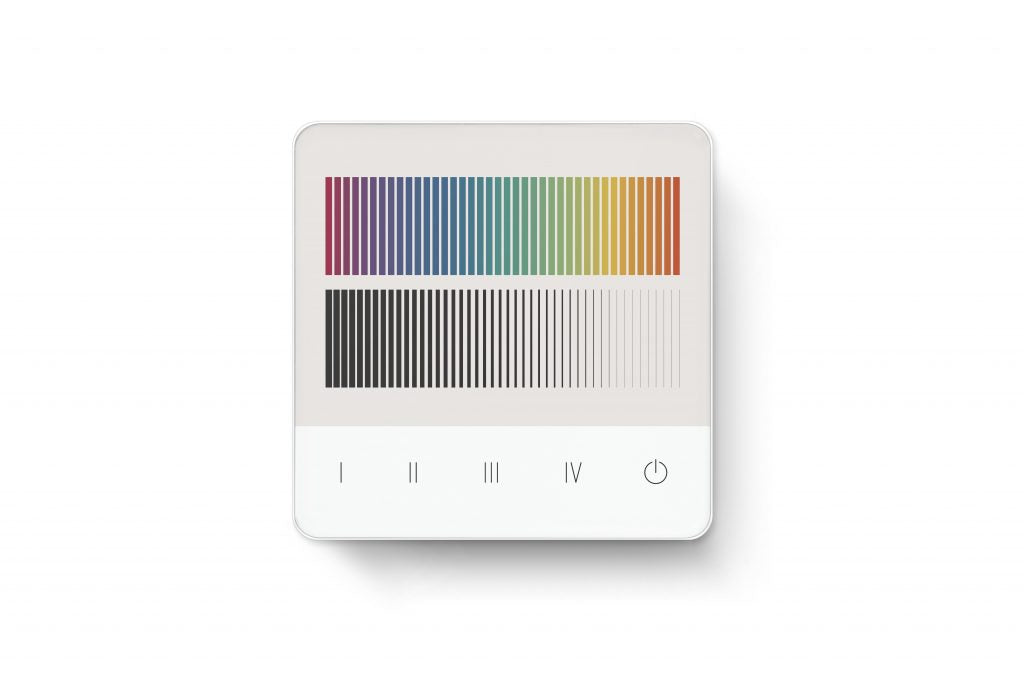

DIM + RGB + 4 Scenes
24035410-G06A
|
|
||
|
DIM + RGB + 4 Groups + 4 Scenes
24035410-G07A
|
|
||
|
Fan + Blinds + 2 Groups + Tunable White + 4 Scenes
24035410-G08A
|
|
||
|
DIM + RGBW + 4 Scenes
24035410-G09A
|
|
